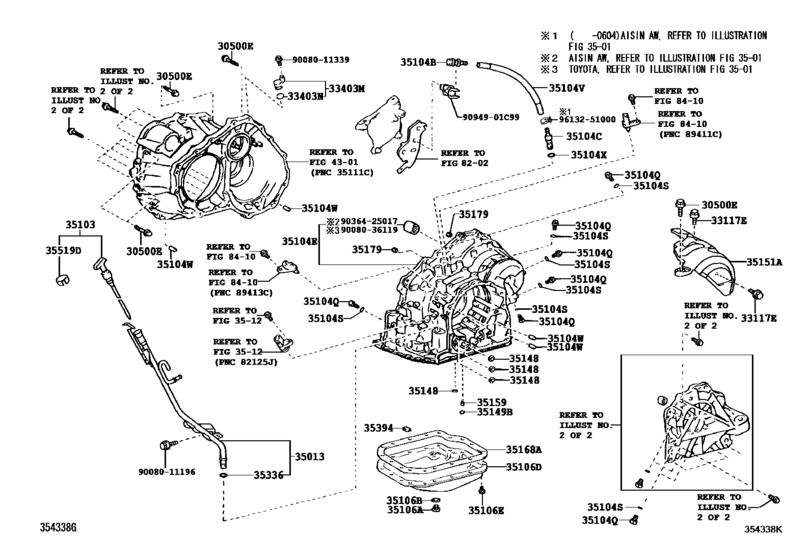

Transmission Case & Oil Pan (Atm) ([07.2003 - ] U151E (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90080-10140
Bolt(For Transaxle & Engine Setting)
[07.2003 - 05.2006] ACV30,MCV31..5FC *10-1.25PX17.5-17.5 |
90080-10140 |
— | ||
|
30500E
|
30500E
90080-10337
Bolt(For Transaxle & Engine Setting)
[07.2003 - 05.2006] MCV31 *10-1.25PX55-30 |
90080-10337 |
— | ||
|
30500E
|
30500E
90080-11310 Bolt(For Transaxle & Engine Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *12-1.25PX55-30 |
90080-11310 |
US $4.08 |
||
|
30500E
|
30500E
90080-11424 Bolt(For Transaxle & Engine Setting)[07.2003 - 05.2006] MCV31 *12-1.25PX65-30 |
90080-11424 |
US $2.48 |
||
|
30500E
|
30500E
90080-11604
Bolt(For Transaxle & Engine Setting)
[07.2003 - 05.2006] MCV31 *12-1.25PX50-30 |
90080-11604 |
— | ||
|
33117E
|
33117E
90080-10083
Bolt(For Automatic Transmission Case Protector)
[07.2003 - 05.2006] MCV31 |
90080-10083 |
— | ||
|
33403M
|
33403M
33403-33040 Cover Sub-Assy, Speedometer Driven Hole (Atm)SPEEDOMETER DRIVEN HOLE (ATM) [07.2003 - 05.2006] MCV31 |
33403-33040 |
US $9.03 |
||
|
33403N
|
33403N
96711-24020 Ring O(For Ventilation Hose No.4)[07.2003 - 05.2006] MCV31 |
96711-24020 |
from US $2.74 |
||
|
35013
|
35013
35013-06131
Tube Sub-Assy, Transmission Oil Filler
[07.2003 - 05.2006] MCV31 |
35013-06131 |
— | ||
|
35103
|
35103
35103-33250 Gage Sub-Assy, Transmission Oil Level[07.2003 - 05.2006] MCV31 |
35103-33250 |
US $15.43 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[07.2003 - 05.2006] MCV31 |
90930-03149 |
from US $3.94 |
||
|
35104C
|
35104C
90930-03157 Plug, Breather, No.2 (Atm)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90930-03157 |
from US $4.66 |
||
|
35104E
|
35104E
35104-08010
Case Sub-Assy, Automatic Transaxle
[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35104-08010 |
— | ||
| replacement | |||||
|
35104E
|
35104E
35104-33H00 Case Sub-Assy, Automatic Transaxle[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35104-33H00 |
US $1,044.83 |
||
|
35104E
|
35104E
35104-08011
Case Sub-Assy, Automatic Transaxle
[08.2007 - 08.2008] MCV31..CP TOYOTA:REFER 35-01 |
35104-08011 |
— | ||
| replacement | |||||
|
35104E
|
35104E
35104-33H00 Case Sub-Assy, Automatic Transaxle[08.2007 - 08.2008] MCV31..CP TOYOTA:REFER 35-01 |
35104-33H00 |
US $1,044.83 |
||
|
35104E
|
35104E
35104-33041 Case Sub-Assy, Automatic Transaxle[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35104-33041 |
US $1,244.88 |
||
| replacements | |||||
|
35104E
|
35104E
35104-33110 Case Sub-assy, Automatic Transmission[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35104-33110 |
from US $1,244.88 |
||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
90301-06008 |
from US $0.74 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
90301-10189 |
from US $2.57 |
||
|
35104E
|
35104E
35104-33042 Case Sub-Assy, Automatic Transaxle[04.2007 - 08.2008] MCV31..CP AISIN:REFER 35-01 |
35104-33042 |
US $1,035.22 |
||
| replacements | |||||
|
35104E
|
35104E
35104-33043 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [04.2007 - 08.2008] MCV31..CP AISIN:REFER 35-01 |
35104-33043 |
US $861.95 |
||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[04.2007 - 08.2008] MCV31..CP AISIN:REFER 35-01 |
90301-06008 |
from US $0.74 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[04.2007 - 08.2008] MCV31..CP AISIN:REFER 35-01 |
90301-10189 |
from US $2.57 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[07.2003 - 05.2006] MCV31 |
90341-08001 |
from US $1.48 |
||
|
35104S
|
35104S
90080-30105
Ring, O(For Transaxle Rear Cover Pulg)
[07.2003 - 07.2004] MCV31 |
90080-30105 |
— | ||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
90301-06196 |
from US $2.36 |
||
|
35104V
|
35104V
35121-45010 Hose (For Breather Plug)[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35121-45010 |
US $13.40 |
||
|
35104V
|
35104V
35121-48030 Hose (For Breather Plug)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35121-48030 |
US $5.39 |
||
|
35104W
|
35104W
90250-10034 Pin, Straight (For Transaxle Case)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
90250-10034 |
US $1.16 |
||
|
35104W
|
35104W
90250-10036 Pin, Straight (For Transaxle Case)[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
90250-10036 |
US $1.60 |
||
| replacement | |||||
|
35104W
|
35104W
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
90250-10232 |
US $1.79 |
||
|
35104W
|
35104W
90250-A0005
Pin, Straight (For Transaxle Case)
[12.2005 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
90250-A0005 |
— | ||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90301-06005 |
from US $2.24 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90341-18016 |
from US $1.92 |
||
|
35106B
|
35106B
90430-18008 Gasket[07.2003 - 05.2006] ACV30,MCV31..5FC |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90430-T0021 |
US $0.99 |
||
|
35106D
|
35106D
35106-08010
Pan Sub-Assy, Automatic Transaxle Oil
[07.2003 - 05.2006] MCV31 (L) |
35106-08010 |
— | ||
|
35106D
|
35106D
35106-33040 Pan Sub-Assy, Automatic Transaxle Oil[07.2003 - 05.2006] MCV31 (J) |
35106-33040 |
from US $45.72 |
||
|
35106E
|
35106E
90080-11496 Bolt (For Transaxle Oil Pan)[07.2003 - 05.2006] MCV31 (L) |
90080-11496 |
from US $0.72 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[01.2005 - 05.2006] MCV31 (J) |
90119-06173 |
from US $0.74 |
||
|
35148
|
35148
35145-06010
Gasket, Governor Apply, No.1
[07.2003 - 05.2006] MCV31 (L) |
35145-06010 |
— | ||
|
35148
|
35148
35145-21010 Gasket, Transaxle Case[01.2005 - 05.2006] ACV30,MCV31..5FC |
35145-21010 |
from US $5.23 |
||
|
35149B
|
35149B
35149-06010
Gasket, Transaxle Case 2Nd Brake
[07.2003 - 05.2006] MCV31 (L) |
35149-06010 |
— | ||
|
35149B
|
35149B
35149-21010 Gasket, Transaxle Case 2Nd Brake[01.2005 - 05.2006] ACV30,MCV31..5FC |
35149-21010 |
from US $4.37 |
||
|
35151A
|
35151A
35151-33040 Cover, Transaxle Case, UpperTRANSAXLE CASE, UPPER [07.2003 - 05.2006] MCV31 |
35151-33040 |
US $62.32 |
||
|
35159
|
35159
35159-06010
Gasket, Brake Drum
[07.2003 - 05.2006] MCV31 (L) |
35159-06010 |
— | ||
|
35159
|
35159
35159-21010 Gasket, Brake Drum[01.2005 - 05.2006] ACV30,MCV31..5FC |
35159-21010 |
from US $6.99 |
||
|
35168A
|
35168A
35168-21010
Gasket, Automatic Transaxle Oil Pan
[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35168-21010 |
— | ||
| replacement | |||||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35168-21011 |
from US $8.85 |
||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35168-21011 |
from US $8.85 |
||
|
35179
|
35179
35179-06010
Gasket, Overdrive Brake
[07.2003 - 05.2006] MCV31 (L) |
35179-06010 |
— | ||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[01.2005 - 05.2006] MCV31 (J) |
35179-32010 |
US $8.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-08010
Magnet, Oil Cleaner (For Transmission)
[07.2003 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35394-08010 |
— | ||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[07.2003 - 05.2006] MCV31 (J)TOYOTA:REFER35-01 |
35394-30011 |
from US $5.43 |
||
|
35394
|
35394
35394-48010 Magnet, Oil Cleaner (For Transmission)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35394-48010 |
from US $5.02 |
||
|
35519D
|
35519D
35519-52010 Label, Automatic Transmission Information[07.2003 - 05.2006] ACV30,MCV31..5FC |
35519-52010 |
US $4.51 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9008011339
|
9008011339
90080-11339 Bolt, Hexagon |
90080-11339 |
US $1.46 |
||
| replacement | |||||
|
9008011339
|
9008011339
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9008036119
|
9008036119
90080-36119
New Genuine Part
|
90080-36119 |
— | ||
| replacement | |||||
|
9008036119
|
9008036119
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
|
9036425017
|
9036425017
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
