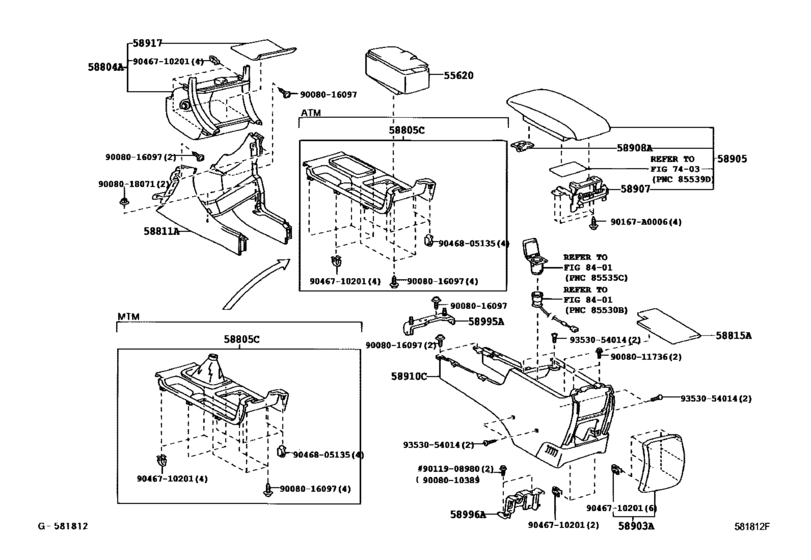

Console Box & Bracket ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-AA030
Holder Assy, Instrument Panel Cup
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55620-AA030 |
— | ||
|
55620
|
55620
55620-AA031
Holder Assy, Instrument Panel Cup
[05.2006 -] MCV31..CVT |
55620-AA031 |
— | ||
|
58804A
|
58804A
58804-06210-A0
Panel Sub-Assy, Console, Upper
[05.2006 -] MCV31..CVT..SLE SEAT HEATER-WITH(DRIVER&PASSENGER),IVORY,TRIM0# |
58804-06210-A0 |
— | ||
|
58804A
|
58804A
58804-06210-B0
Panel Sub-Assy, Console, Upper
[05.2006 -] MCV31..CVT..SLE SEAT HEATER-WITH(DRIVER&PASSENGER),DK. STONE,TRIM1# |
58804-06210-B0 |
— | ||
|
58804A
|
58804A
58804-AA152-A0
Panel Sub-Assy, Console, Upper
[05.2006 -] MCV31..CVT IVORY,TRIM0# |
58804-AA152-A0 |
— | ||
|
58804A
|
58804A
58804-AA152-B0
Panel Sub-Assy, Console, Upper
[05.2006 -] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
58804-AA152-B0 |
— | ||
|
58804A
|
58804A
58804-AA161-A0
Panel Sub-Assy, Console, Upper
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE IVORY,TRIM0# |
58804-AA161-A0 |
— | ||
|
58804A
|
58804A
58804-AA161-B0
Panel Sub-Assy, Console, Upper
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1# |
58804-AA161-B0 |
— | ||
|
58804A
|
58804A
58804-AA171-A0
Panel Sub-Assy, Console, Upper
[07.2003 - 05.2006] ACV30..5FC..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0#; MCV31..SLE SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
58804-AA171-A0 |
— | ||
|
58804A
|
58804A
58804-AA171-B0
Panel Sub-Assy, Console, Upper
[07.2003 - 05.2006] ACV30..5FC..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DK. STONE,TRIM1#; MCV31..SLE SEAT HEATER-WITH(D&P SEAT),DK. STONE,TRIM1# |
58804-AA171-B0 |
— | ||
|
58805C
|
58805C
58805-AA030-A0
Panel Sub-Assy, Console, Upper Rear
[07.2003 - 05.2006] ACV30,MCV31..5FC IVORY,TRIM0# |
58805-AA030-A0 |
— | ||
|
58805C
|
58805C
58805-AA030-B0
Panel Sub-Assy, Console, Upper Rear
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..5FC..SE DK. STONE,TRIM10 |
58805-AA030-B0 |
— | ||
|
58805C
|
58805C
58805-AA031-A0
Panel Sub-Assy, Console, Upper Rear
[05.2006 -] MCV31..CVT IVORY,TRIM0# |
58805-AA031-A0 |
— | ||
|
58805C
|
58805C
58805-AA031-B0
Panel Sub-Assy, Console, Upper Rear
[05.2006 -] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
58805-AA031-B0 |
— | ||
|
58811A
|
58811A
58811-AA040-A0
Box, Console, Front
[07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
58811-AA040-A0 |
— | ||
|
58811A
|
58811A
58811-AA040-B0
Box, Console, Front
[07.2003 - 05.2006] ACV30,MCV31..SE DK. STONE,TRIM10; ACV30,MCV31..SLE DK. STONE,TRIM1# |
58811-AA040-B0 |
— | ||
|
58815A
|
58815A
58815-AA020
Carpet, Console Box
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58815-AA020 |
— | ||
|
58903A
|
58903A
58903-AA020-A0
Panel Sub-Assy, Console Rear End
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
58903-AA020-A0 |
— | ||
|
58903A
|
58903A
58903-AA020-B2
Panel Sub-Assy, Console Rear End
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
58903-AA020-B2 |
— | ||
|
58905
|
58905
58905-AA030-A0
Door Sub-Assy, Console Compartment
[07.2003 - 07.2004] MCV31..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0# |
58905-AA030-A0 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-AA031-A0
Door Sub-Assy, Console Compartment
[07.2003 - 07.2004] MCV31..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0# |
58905-AA031-A0 |
— | ||
|
58905
|
58905
58905-AA030-B2
Door Sub-Assy, Console Compartment
[07.2003 - 07.2004] MCV31..SLE DK. STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DK. STONE,TRIM1# |
58905-AA030-B2 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-AA031-B2
Door Sub-Assy, Console Compartment
[07.2003 - 07.2004] MCV31..SLE DK. STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DK. STONE,TRIM1# |
58905-AA031-B2 |
— | ||
|
58905
|
58905
58905-AA031-A0
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] MCV31..SLE IVORY,TRIM0# |
58905-AA031-A0 |
— | ||
|
58905
|
58905
58905-AA031-B2
Door Sub-Assy, Console Compartment
[08.2004 - 05.2006] MCV31..SLE DK. STONE,TRIM1# |
58905-AA031-B2 |
— | ||
|
58907
|
58907
58907-AA030
Hinge Sub-Assy, Console Compartment Door
[07.2003 - 07.2004] MCV31..SLE; ACV30..SLE W/POWER SEAT & LEATHER SEAT |
58907-AA030 |
— | ||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[07.2003 - 07.2004] MCV31..SLE |
58908-32050 |
US $11.65 |
||
|
58910C
|
58910C
58910-AA030-A0
Box Assy, Console, Rear
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
58910-AA030-A0 |
— | ||
|
58910C
|
58910C
58910-AA030-B2
Box Assy, Console, Rear
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
58910-AA030-B2 |
— | ||
|
58917
|
58917
58917-AA020
Mat, Box Bottom, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58917-AA020 |
— | ||
|
58917
|
58917
58917-AA021
Mat, Box Bottom, No.2
[05.2006 -] MCV31..CVT |
58917-AA021 |
— | ||
|
58995A
|
58995A
58995-AA020
Bracket, Console Box Mounting, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58995-AA020 |
— | ||
|
58996A
|
58996A
58996-AA020
Bracket, Console Box Mounting, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58996-AA020 |
— | ||
|
90167A0006
|
90167A0006
90167-A0006
New Genuine Part
|
90167-A0006 |
— | ||
|
9008010389
|
9008010389
90080-10389
New Genuine Part
|
90080-10389 |
— | ||
|
9008011736
|
9008011736
90080-11736
New Genuine Part
|
90080-11736 |
— | ||
|
9008016097
|
9008016097
90080-16097 New Genuine Part |
90080-16097 |
US $0.73 |
||
|
9008018071
|
9008018071
90080-18071
New Genuine Part
|
90080-18071 |
— | ||
|
9011908980
|
9011908980
90119-08980 New Genuine Part |
90119-08980 |
US $2.04 |
||
| replacement | |||||
|
9011908980
|
9011908980
90119-08842 BOLT WWASHER |
90119-08842 |
US $1.61 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9353054014
|
9353054014
93530-54014 New Genuine Part |
93530-54014 |
US $0.61 |
||
