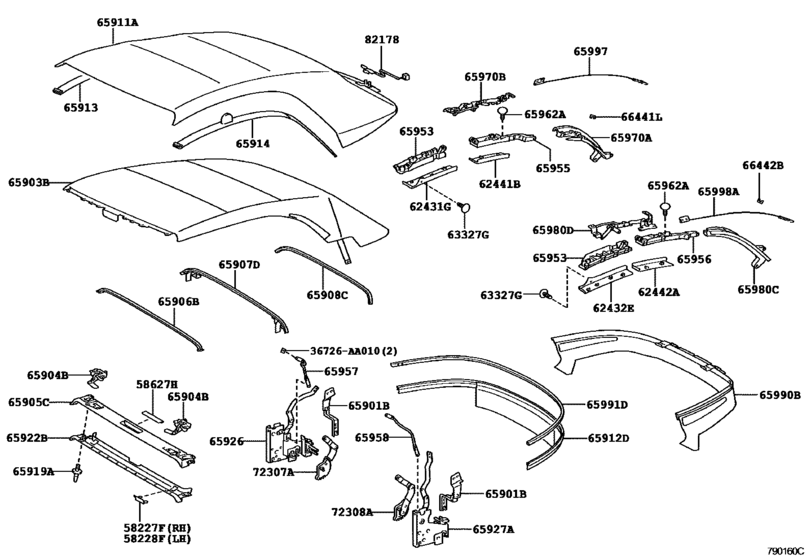

Convertible Parts ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58227F
|
58227F
58227-06010
Patch, Header Panel, Rh
[02.2004 - 05.2006] MCV31..CVT |
58227-06010 |
— | ||
|
58228F
|
58228F
58228-06010
Patch, Header Panel, Lh
[02.2004 - 05.2006] MCV31..CVT |
58228-06010 |
— | ||
|
58627H
|
58627H
58627-06010
Pad, Header Mat
[02.2004 - 05.2006] MCV31..CVT |
58627-06010 |
— | ||
|
62431G
|
62431G
62431-06010
Garnish, Roof Side Rail, Front Rh
[02.2004 - 05.2006] MCV31..CVT |
62431-06010 |
— | ||
|
62432E
|
62432E
62432-06010
Garnish, Roof Side Rail, Front Lh
[02.2004 - 05.2006] MCV31..CVT |
62432-06010 |
— | ||
|
62441B
|
62441B
62441-06010
Garnish, Roof Side Rail, No.2 Rh
[02.2004 - 05.2006] MCV31..CVT |
62441-06010 |
— | ||
|
62442A
|
62442A
62442-06010
Garnish, Roof Side Rail, No.2 Lh
[02.2004 - 05.2006] MCV31..CVT |
62442-06010 |
— | ||
|
63327G
|
63327G
63327-AA010
Fastener, Roof Headlining, No.1
[03.2005 - 05.2006] MCV31..CVT |
63327-AA010 |
— | ||
|
65901B
|
65901B
65901-06010
Bracket, Tarpaulin Rear Bow
[02.2004 - 05.2006] MCV31..CVT RH |
65901-06010 |
— | ||
|
65901B
|
65901B
65901-06020
Bracket, Tarpaulin Rear Bow
[02.2004 - 05.2006] MCV31..CVT LH |
65901-06020 |
— | ||
|
65903B
|
65903B
65903-06010
Headlining Sub-Assy, Tarpaulin
[02.2004 - 05.2006] MCV31..CVT |
65903-06010 |
— | ||
|
65904B
|
65904B
65904-06010
Latch Sub-Assy, Tarpaulin
[02.2004 - 05.2006] MCV31..CVT RH |
65904-06010 |
— | ||
|
65904B
|
65904B
65904-06020
Latch Sub-Assy, Tarpaulin
[02.2004 - 05.2006] MCV31..CVT LH |
65904-06020 |
— | ||
|
65905C
|
65905C
65951-06010
Bow Sub-Assy, Tarpaulin, No.1
[02.2004 - 05.2006] MCV31..CVT |
65951-06010 |
— | ||
|
65906B
|
65906B
65961-06010
Bow Sub-Assy, Tarpaulin, No.2
[02.2004 - 05.2006] MCV31..CVT |
65961-06010 |
— | ||
|
65907D
|
65907D
65971-06010
Bow Sub-Assy, Tarpaulin, No.3
[02.2004 - 05.2006] MCV31..CVT |
65971-06010 |
— | ||
|
65908C
|
65908C
65981-06010
Bow Set, Tarpaulin, No.4
[02.2004 - 05.2006] MCV31..CVT |
65981-06010 |
— | ||
|
65911A
|
65911A
65911-06010-C0
Cover, Tarpaulin
[02.2004 - 04.2006] MCV31..CVT BLACK,TRIM1#&071 ,1C8 ,202 ,3P0 ,8Q5 |
65911-06010-C0 |
— | ||
| replacement | |||||
|
65911A
|
65911A
65911-06012-C0
Cover, Tarpaulin
[02.2004 - 04.2006] MCV31..CVT BLACK,TRIM1#&071 ,1C8 ,202 ,3P0 ,8Q5 |
65911-06012-C0 |
— | ||
|
65911A
|
65911A
65911-06010-E0
Cover, Tarpaulin
[02.2004 - 04.2006] MCV31..CVT..SLE CAMEL,TRIM0#&071 ,202 ,3P0 ,8Q5 |
65911-06010-E0 |
— | ||
| replacement | |||||
|
65911A
|
65911A
65911-06012-E0
Cover, Tarpaulin
[02.2004 - 04.2006] MCV31..CVT..SLE CAMEL,TRIM0#&071 ,202 ,3P0 ,8Q5 |
65911-06012-E0 |
— | ||
|
65911A
|
65911A
65911-06011-C0
Cover, Tarpaulin
[05.2006 - 05.2009] MCV31..CVT..SE BLACK,TRIM1#&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5 ,8T7; MCV31..CVT..SLE BLACK,TRIM1#&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 ,8T7 |
65911-06011-C0 |
— | ||
| replacement | |||||
|
65911A
|
65911A
65911-06012-C0
Cover, Tarpaulin
[05.2006 - 05.2009] MCV31..CVT..SE BLACK,TRIM1#&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5 ,8T7; MCV31..CVT..SLE BLACK,TRIM1#&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 ,8T7 |
65911-06012-C0 |
— | ||
|
65911A
|
65911A
65911-06011-E0
Cover, Tarpaulin
[05.2006 - 05.2009] MCV31..CVT..SE CAMEL,TRIM0#&070 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5; MCV31..CVT..SLE CAMEL,TRIM0#&070 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 |
65911-06011-E0 |
— | ||
| replacement | |||||
|
65911A
|
65911A
65911-06012-E0
Cover, Tarpaulin
[05.2006 - 05.2009] MCV31..CVT..SE CAMEL,TRIM0#&070 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5; MCV31..CVT..SLE CAMEL,TRIM0#&070 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 |
65911-06012-E0 |
— | ||
|
65911A
|
65911A
65911-06012-C0
Cover, Tarpaulin
[06.2009 -] MCV31..CVT BLACK,TRIM1#&070 ,1F7 ,1G3 ,202 ,3P0 ,8T5 |
65911-06012-C0 |
— | ||
|
65911A
|
65911A
65911-06012-E0
Cover, Tarpaulin
[06.2009 -] MCV31..CVT CAMEL,TRIM0#&070 ,1G3 ,202 ,3P0 ,8T5 |
65911-06012-E0 |
— | ||
|
65912D
|
65912D
65912-06010
Cover, Back Window Glass Wire
[02.2004 - 05.2006] MCV31..CVT |
65912-06010 |
— | ||
|
65913
|
65913
65913-06010
Pad, Tarpaulin Cover, Front Rh
[02.2004 - 05.2006] MCV31..CVT |
65913-06010 |
— | ||
|
65914
|
65914
65914-06010
Pad, Tarpaulin Cover, Front Lh
[02.2004 - 05.2006] MCV31..CVT |
65914-06010 |
— | ||
|
65919A
|
65919A
65919-06010
Pin, No.1 Bow Locating
[02.2004 - 05.2006] MCV31..CVT |
65919-06010 |
— | ||
|
65922B
|
65922B
65922-06010
Garnish, Tarpaulin Roof Header
[02.2004 - 05.2006] MCV31..CVT |
65922-06010 |
— | ||
|
65926
|
65926
65926-06010
Bracket, Tarpaulin Rail Pivot, Rh
[02.2004 - 05.2006] MCV31..CVT |
65926-06010 |
— | ||
|
65927A
|
65927A
65927-06010
Bracket, Tarpaulin Rail Pivot, Lh
[02.2004 - 05.2006] MCV31..CVT |
65927-06010 |
— | ||
|
65953
|
65953
65953-06010
Rail, Taupaulin, Front
[02.2004 - 05.2006] MCV31..CVT RH |
65953-06010 |
— | ||
|
65953
|
65953
65954-06020
Rail, Taupaulin, Front
[02.2004 - 05.2006] MCV31..CVT LH |
65954-06020 |
— | ||
|
65955
|
65955
65955-06010
Rail, Tarpaulin, Center Rh
[02.2004 - 05.2006] MCV31..CVT |
65955-06010 |
— | ||
|
65956
|
65956
65956-06010
Rail, Tarpaulin, Center Lh
[02.2004 - 05.2006] MCV31..CVT |
65956-06010 |
— | ||
|
65957
|
65957
65957-06010
Link, Tarpaulin Rail Balance, Rh
[02.2004 - 05.2006] MCV31..CVT |
65957-06010 |
— | ||
|
65958
|
65958
65958-06010
Link, Tarpaulin Rail Balance, Lh
[02.2004 - 05.2006] MCV31..CVT |
65958-06010 |
— | ||
|
65962A
|
65962A
02593-86101 Retainer, Front Header[02.2004 - 08.2004] MCV31..CVT |
02593-86101 |
US $2.77 |
||
|
65970A
|
65970A
65965-06010
Rail Assy, Tarpaulin, Rear Rh
[02.2004 - 05.2006] MCV31..CVT |
65965-06010 |
— | ||
|
65970B
|
65970B
65970-06010
Link Assy, Tarpaulin Hinge, Rh
[02.2004 - 05.2006] MCV31..CVT |
65970-06010 |
— | ||
|
65980C
|
65980C
65966-06010
Rail Assy, Tarpaulin, Rear Lh
[02.2004 - 05.2006] MCV31..CVT |
65966-06010 |
— | ||
|
65980D
|
65980D
65980-06010
Link Assy, Tarpaulin Hinge, Lh
[02.2004 - 05.2006] MCV31..CVT |
65980-06010 |
— | ||
|
65990B
|
65990B
65990-06010
Trough Assy, Tarpaulin Rear Bow Drain
[02.2004 - 05.2006] MCV31..CVT |
65990-06010 |
— | ||
|
65991D
|
65991D
65991-06010
Bow, Tarpaulin, No.5
[02.2004 - 05.2006] MCV31..CVT |
65991-06010 |
— | ||
|
65997
|
65997
65997-06010
Cable, Tarpaulin Rail, Rh
[02.2004 - 07.2004] MCV31..CVT |
65997-06010 |
— | ||
| replacement | |||||
|
65997
|
65997
65997-06011
Cable, Tarpaulin Rail, Rh
[02.2004 - 07.2004] MCV31..CVT |
65997-06011 |
— | ||
|
65997
|
65997
65997-06011
Cable, Tarpaulin Rail, Rh
[08.2004 - 05.2006] MCV31..CVT |
65997-06011 |
— | ||
|
65998A
|
65998A
65998-06010
Cable, Tarpaulin Rail, Lh
[02.2004 - 07.2004] MCV31..CVT |
65998-06010 |
— | ||
| replacement | |||||
|
65998A
|
65998A
65998-06011
Cable, Tarpaulin Rail, Lh
[02.2004 - 07.2004] MCV31..CVT |
65998-06011 |
— | ||
|
65998A
|
65998A
65998-06011
Cable, Tarpaulin Rail, Lh
[08.2004 - 05.2006] MCV31..CVT |
65998-06011 |
— | ||
|
66441L
|
66441L
66441-06010
Shim, Mounting, No.1
[02.2004 - 05.2006] MCV31..CVT |
66441-06010 |
— | ||
|
66442B
|
66442B
66442-06010
Shim, Tonneau Cover Holder(For Front Hinge)
[02.2004 - 05.2006] MCV31..CVT |
66442-06010 |
— | ||
|
72307A
|
72307A
72307-06010
Link Sub-Assy, Reclining Control, Rh
[02.2004 - 05.2006] MCV31..CVT |
72307-06010 |
— | ||
|
72308A
|
72308A
72308-06010
Link Sub-Assy, Reclining Control, Lh
[02.2004 - 05.2006] MCV31..CVT |
72308-06010 |
— | ||
|
82178
|
82178
82178-06010
Cable, Back Window Glass Wire, Rh
[02.2004 - 05.2006] MCV31..CVT |
82178-06010 |
— | ||
|
36726AA010
|
36726AA010
36726-AA010
Plate, Lock (for Transfer Gear)
|
36726-AA010 |
— | ||
