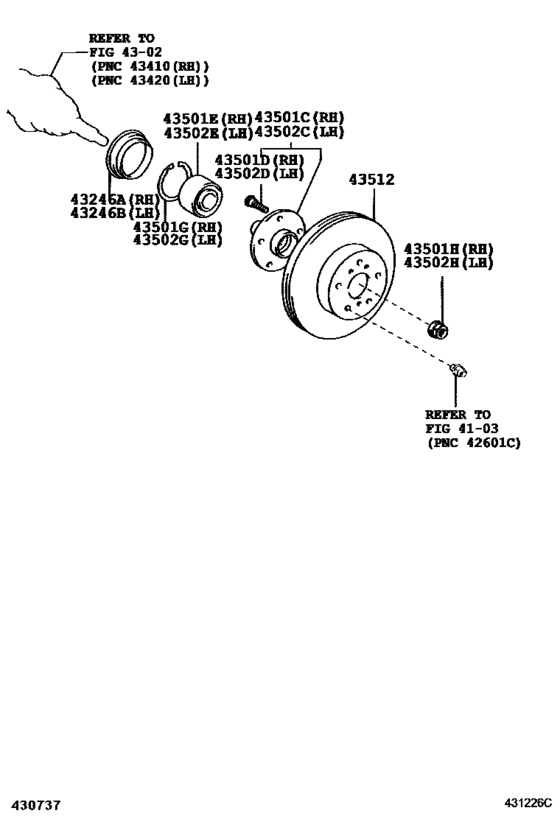

Front Axle Hub ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43246-28020 |
from US $11.57 |
||
|
43246B
|
43246B
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43246-28020 |
from US $11.57 |
||
|
43501C
|
43501C
43502-AA020
Hub Sub-Assy, Front Axle, Rh
[07.2003 - 05.2006] MCV31 |
43502-AA020 |
— | ||
| replacement | |||||
|
43501C
|
43501C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[07.2003 - 05.2006] MCV31 |
43502-AA021 |
— | ||
|
43501C
|
43501C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[09.2006 -] MCV31..CVT |
43502-AA021 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90942-02082 |
from US $2.26 |
||
|
43501E
|
43501E
90080-36193
Bearing (For Front Axle Hub Rh)
[07.2003 - 05.2006] ACV30,MCV31 NSK,KOYO |
90080-36193 |
— | ||
|
43501G
|
43501G
90520-77001 Ring, Snap[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90520-77001 |
from US $2.89 |
||
|
43501H
|
43501H
90080-17238
Nut (For Rear Axle Shaft Rh)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-17238 |
— | ||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90177-22001 |
from US $2.30 |
||
|
43502C
|
43502C
43502-AA020
Hub Sub-Assy, Front Axle, Rh
[07.2003 - 05.2006] MCV31 |
43502-AA020 |
— | ||
| replacement | |||||
|
43502C
|
43502C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[07.2003 - 05.2006] MCV31 |
43502-AA021 |
— | ||
|
43502C
|
43502C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[09.2006 -] MCV31..CVT |
43502-AA021 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90942-02082 |
from US $2.26 |
||
|
43502E
|
43502E
90080-36193
Bearing (For Front Axle Hub Rh)
[07.2003 - 05.2006] ACV30,MCV31..5FC NSK; ACV30,MCV31 KOYO; ACV30..(4FC,5F)..SE SPORT PACKAGE,NSK |
90080-36193 |
— | ||
|
43502G
|
43502G
90520-77001 Ring, Snap[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90520-77001 |
from US $2.89 |
||
|
43502H
|
43502H
90080-17238
Nut (For Rear Axle Shaft Rh)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-17238 |
— | ||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90177-22001 |
from US $2.30 |
||
|
43512
|
43512
43512-08030
Disc, Front
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43512-08030 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-08040 Disc, Front[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43512-08040 |
from US $192.54 |
||
|
43512
|
43512
43512-08040 Disc, Front[05.2006 -] MCV31..CVT |
43512-08040 |
from US $192.54 |
||
