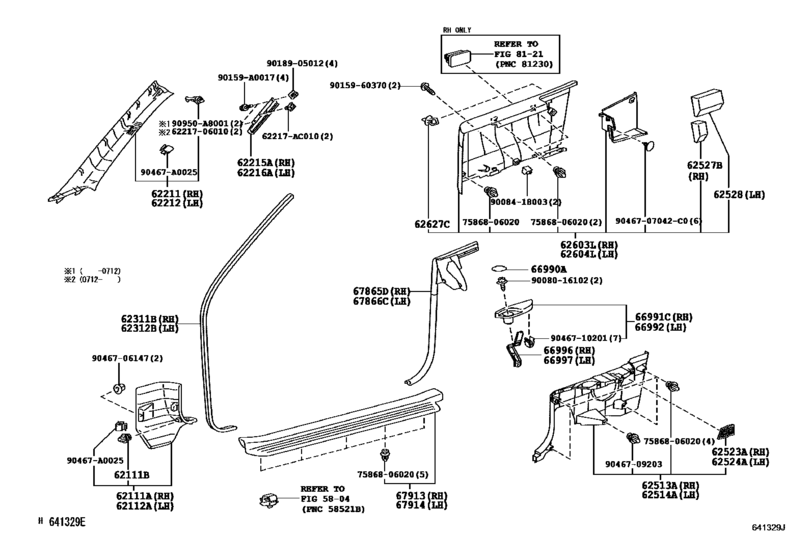

Inside Trim Board & Door Opening Trim Moulding ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111A
|
62111A
62101-AA030-A0
Trim Sub-Assy, Cowl Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62101-AA030-A0 |
— | ||
|
62111A
|
62111A
62101-AA030-B0
Trim Sub-Assy, Cowl Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
62101-AA030-B0 |
— | ||
|
62111B
|
62111B
90467-A0006 Clip(For Front Fender Seal)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90467-A0006 |
US $1.43 |
||
|
62112A
|
62112A
62102-AA030-A0
Trim Sub-Assy, Cowl Side, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62102-AA030-A0 |
— | ||
|
62112A
|
62112A
62102-AA030-B0
Trim Sub-Assy, Cowl Side, Lh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
62102-AA030-B0 |
— | ||
|
62211
|
62211
62210-AA060-A1
Garnish, Front Pillar, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62210-AA060-A1 |
— | ||
| replacements | |||||
|
62211
|
62211
62210-AA061-A1
Garnish, Front Pillar, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62210-AA061-A1 |
— | ||
|
62211
|
62211
62217-06010 Clip(For Front Pillar Garnish)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62217-06010 |
from US $2.87 |
||
|
62211
|
62211
62210-AA060-B1
Garnish, Front Pillar, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62210-AA060-B1 |
— | ||
| replacements | |||||
|
62211
|
62211
62210-AA061-B1
Garnish, Front Pillar, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62210-AA061-B1 |
— | ||
|
62211
|
62211
62217-06010 Clip(For Front Pillar Garnish)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62217-06010 |
from US $2.87 |
||
|
62211
|
62211
62210-AA060-B2
Garnish, Front Pillar, Rh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62210-AA060-B2 |
— | ||
| replacements | |||||
|
62211
|
62211
62210-AA061-B2
Garnish, Front Pillar, Rh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62210-AA061-B2 |
— | ||
|
62211
|
62211
62217-06010 Clip(For Front Pillar Garnish)[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62217-06010 |
from US $2.87 |
||
|
62211
|
62211
62210-AA061-A1
Garnish, Front Pillar, Rh
[12.2007 -] MCV31..CVT IVORY,TRIM0# |
62210-AA061-A1 |
— | ||
|
62211
|
62211
62210-AA061-B2
Garnish, Front Pillar, Rh
[12.2007 -] MCV31..CVT..SE DK.GRAY,TRIM10,11; MCV31..CVT..SLE DK.GRAY,TRIM1# |
62210-AA061-B2 |
— | ||
|
62212
|
62212
62220-AA060-A1
Garnish, Front Pillar, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62220-AA060-A1 |
— | ||
| replacements | |||||
|
62212
|
62212
62217-06010 Clip(For Front Pillar Garnish)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62217-06010 |
from US $2.87 |
||
|
62212
|
62212
62220-AA061-A1
Garnish, Front Pillar, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
62220-AA061-A1 |
— | ||
|
62212
|
62212
62220-AA060-B1
Garnish, Front Pillar, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62220-AA060-B1 |
— | ||
| replacements | |||||
|
62212
|
62212
62217-06010 Clip(For Front Pillar Garnish)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62217-06010 |
from US $2.87 |
||
|
62212
|
62212
62220-AA061-B1
Garnish, Front Pillar, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC DARK STONE,TRIM1# |
62220-AA061-B1 |
— | ||
|
62212
|
62212
62220-AA060-B2
Garnish, Front Pillar, Lh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62220-AA060-B2 |
— | ||
| replacements | |||||
|
62212
|
62212
62217-06010 Clip(For Front Pillar Garnish)[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62217-06010 |
from US $2.87 |
||
|
62212
|
62212
62220-AA061-B2
Garnish, Front Pillar, Lh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62220-AA061-B2 |
— | ||
|
62212
|
62212
62220-AA061-A1
Garnish, Front Pillar, Lh
[12.2007 -] MCV31..CVT IVORY,TRIM0# |
62220-AA061-A1 |
— | ||
|
62212
|
62212
62220-AA061-B2
Garnish, Front Pillar, Lh
[12.2007 -] MCV31..CVT..SE DK.GRAY,TRIM10,11; MCV31..CVT..SLE DK.GRAY,TRIM1# |
62220-AA061-B2 |
— | ||
|
62215A
|
62215A
62215-AA021 Insert, Front Pillar Garnish, Rh[12.2003 - 05.2006] ACV30,MCV31..5F,5FC |
62215-AA021 |
US $29.27 |
||
|
62216A
|
62216A
62216-AA021 Insert, Front Pillar Garnish, Lh[12.2003 - 05.2006] ACV30,MCV31..5F,5FC |
62216-AA021 |
US $29.27 |
||
|
62311B
|
62311B
62311-06070-A0
Weatherstrip, Front Door Opening Trim, Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62311-06070-A0 |
— | ||
|
62311B
|
62311B
62311-06070-B1
Weatherstrip, Front Door Opening Trim, Rh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62311-06070-B1 |
— | ||
|
62312B
|
62312B
62312-06070-A0
Weatherstrip, Front Door Opening Trim, Lh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62312-06070-A0 |
— | ||
|
62312B
|
62312B
62312-06070-B1
Weatherstrip, Front Door Opening Trim, Lh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
62312-06070-B1 |
— | ||
|
62513A
|
62513A
62513-06020-A0
Panel, Quarter Trim, Lower Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62513-06020-A0 |
— | ||
|
62513A
|
62513A
62513-06020-B0
Panel, Quarter Trim, Lower Rh
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
62513-06020-B0 |
— | ||
|
62514A
|
62514A
62514-06020-A0
Panel, Quarter Trim, Lower Lh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62514-06020-A0 |
— | ||
|
62514A
|
62514A
62514-06020-B0
Panel, Quarter Trim, Lower Lh
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
62514-06020-B0 |
— | ||
|
62523A
|
62523A
62523-06010-A0
Cover, Quarter Trim, Lower Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62523-06010-A0 |
— | ||
|
62523A
|
62523A
62523-06010-B0
Cover, Quarter Trim, Lower Rh
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
62523-06010-B0 |
— | ||
|
62524A
|
62524A
62524-06010-A0
Cover, Quarter Trim, Lower Lh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
62524-06010-A0 |
— | ||
|
62524A
|
62524A
62524-06010-B0
Cover, Quarter Trim, Lower Lh
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
62524-06010-B0 |
— | ||
|
62527B
|
62527B
62527-06030
Pad, Quarter Trim
[02.2004 - 05.2006] MCV31..CVT |
62527-06030 |
— | ||
|
62528
|
62528
62528-06010
Pad, Quarter Trim, Lower Lh
[02.2004 - 05.2006] MCV31..CVT |
62528-06010 |
— | ||
|
62603L
|
62603L
62603-06040-A0
Panel Sub-Assy, Quarter Trim, Upper Rh
[02.2004 - 08.2004] MCV31..CVT ORCHID BROWN,TRIM0# |
62603-06040-A0 |
— | ||
| replacement | |||||
|
62603L
|
62603L
62603-06041-A0
Panel Sub-Assy, Quarter Trim, Upper Rh
[02.2004 - 08.2004] MCV31..CVT ORCHID BROWN,TRIM0# |
62603-06041-A0 |
— | ||
|
62603L
|
62603L
62603-06040-B0
Panel Sub-Assy, Quarter Trim, Upper Rh
[02.2004 - 08.2004] MCV31..CVT..SE DK. GRAY,TRIM10; MCV31..CVT..SLE DK. GRAY,TRIM1# |
62603-06040-B0 |
— | ||
| replacement | |||||
|
62603L
|
62603L
62603-06041-B0
Panel Sub-Assy, Quarter Trim, Upper Rh
[02.2004 - 08.2004] MCV31..CVT..SE DK. GRAY,TRIM10; MCV31..CVT..SLE DK. GRAY,TRIM1# |
62603-06041-B0 |
— | ||
|
62603L
|
62603L
62603-06041-A0
Panel Sub-Assy, Quarter Trim, Upper Rh
[08.2004 - 05.2006] MCV31..CVT..SLE ORCHID BROWN,TRIM0# |
62603-06041-A0 |
— | ||
|
62603L
|
62603L
62603-06041-B0
Panel Sub-Assy, Quarter Trim, Upper Rh
[08.2004 - 05.2006] MCV31..CVT..SLE DK.GRAY,TRIM1# |
62603-06041-B0 |
— | ||
|
62604L
|
62604L
62604-06040-A0
Panel Sub-Assy, Quarter Trim, Upper Lh
[02.2004 - 08.2004] MCV31..CVT ORCHID BROWN,TRIM0# |
62604-06040-A0 |
— | ||
| replacement | |||||
|
62604L
|
62604L
62604-06041-A0
Panel Sub-Assy, Quarter Trim, Upper Lh
[02.2004 - 08.2004] MCV31..CVT ORCHID BROWN,TRIM0# |
62604-06041-A0 |
— | ||
|
62604L
|
62604L
62604-06040-B0
Panel Sub-Assy, Quarter Trim, Upper Lh
[02.2004 - 08.2004] MCV31..CVT..SE DK. GRAY,TRIM10; MCV31..CVT..SLE DK. GRAY,TRIM1# |
62604-06040-B0 |
— | ||
| replacement | |||||
|
62604L
|
62604L
62604-06041-B0
Panel Sub-Assy, Quarter Trim, Upper Lh
[02.2004 - 08.2004] MCV31..CVT..SE DK. GRAY,TRIM10; MCV31..CVT..SLE DK. GRAY,TRIM1# |
62604-06041-B0 |
— | ||
|
62604L
|
62604L
62604-06041-A0
Panel Sub-Assy, Quarter Trim, Upper Lh
[08.2004 - 05.2006] MCV31..CVT..SLE ORCHID BROWN,TRIM0# |
62604-06041-A0 |
— | ||
|
62604L
|
62604L
62604-06041-B0
Panel Sub-Assy, Quarter Trim, Upper Lh
[08.2004 - 05.2006] MCV31..CVT..SLE DK.GRAY,TRIM1# |
62604-06041-B0 |
— | ||
|
62627C
|
62627C
62627-06010
Cover, Side Trim, No.1
[08.2004 - 05.2006] MCV31..CVT |
62627-06010 |
— | ||
|
66990A
|
66990A
66994-06010
Holder Assy, Cup
[02.2004 - 05.2006] MCV31..CVT |
66994-06010 |
— | ||
|
66991C
|
66991C
66991-06010-A0
Holder, Cup, No.1
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
66991-06010-A0 |
— | ||
|
66991C
|
66991C
66991-06010-B0
Holder, Cup, No.1
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
66991-06010-B0 |
— | ||
|
66992
|
66992
66992-06010-A0
Holder, Cup, No.2
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
66992-06010-A0 |
— | ||
|
66992
|
66992
66992-06010-B0
Holder, Cup, No.2
[02.2004 - 05.2006] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
66992-06010-B0 |
— | ||
|
66996
|
66996
66996-06010
Bracket, Cup Holder, No.1
[02.2004 - 05.2006] MCV31..CVT |
66996-06010 |
— | ||
|
66997
|
66997
66997-06010
Bracket, Cup Holder, No.2
[02.2004 - 05.2006] MCV31..CVT |
66997-06010 |
— | ||
|
67865D
|
67865D
67865-06010
Weatherstrip, Center Pillar Upper End, Rh
[02.2004 - 05.2006] MCV31..CVT |
67865-06010 |
— | ||
|
67866C
|
67866C
67866-06010
Weatherstrip, Center Pillar Upper End, Lh
[02.2004 - 05.2006] MCV31..CVT |
67866-06010 |
— | ||
|
67913
|
67913
67913-AA030-A0
Plate, Front Door Scuff, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
67913-AA030-A0 |
— | ||
|
67913
|
67913
67913-AA030-B0
Plate, Front Door Scuff, Rh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
67913-AA030-B0 |
— | ||
|
67914
|
67914
67914-AA040-A0
Plate, Front Door Scuff, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
67914-AA040-A0 |
— | ||
|
67914
|
67914
67914-AA040-B0
Plate, Front Door Scuff, Lh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
67914-AA040-B0 |
— | ||
|
62217AC010
|
62217AC010
62217-AC010 Clip, Front Pillar Garnish |
62217-AC010 |
US $4.66 |
||
|
90159A0017
|
90159A0017
90159-A0017
New Genuine Part
|
90159-A0017 |
— | ||
|
90467A0025
|
90467A0025
90467-A0025
Clip, No.2(For Cowl Side Trim)
|
90467-A0025 |
— | ||
|
90950A8001
|
90950A8001
90950-A8001 Clip(For Front Pillar Garnish)FRONT PILLAR GARNISH |
90950-A8001 |
from US $4.02 |
||
|
6221706010
|
6221706010
62217-06010 Clip(For Front Pillar Garnish) |
62217-06010 |
from US $2.87 |
||
|
7586806020
|
7586806020
75868-06020 Clip, Rocker Panel Moulding, No.2REAR SEAT LEG GARNISH COVER |
75868-06020 |
US $2.77 |
||
|
9008016102
|
9008016102
90080-16102
New Genuine Part
|
90080-16102 |
— | ||
|
9008418003
|
9008418003
90084-18003 New Genuine Part |
90084-18003 |
US $1.46 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.25 |
||
|
9018905012
|
9018905012
90189-05012 New Genuine Part |
90189-05012 |
US $3.94 |
||
|
9046706147
|
9046706147
90467-06147 Clip(For Cowl Side Trim) |
90467-06147 |
from US $0.91 |
||
|
9046707042C0
|
9046707042C0
90467-07042-C0 Clip |
90467-07042-C0 |
US $1.25 |
||
| replacement | |||||
|
9046707042C0
|
9046707042C0
90467-06175 Clip(For Luggage Compartment Door) |
90467-06175 |
US $3.94 |
||
|
9046709203
|
9046709203
90467-09203 Clip(For Rear Floor Mat Plate) |
90467-09203 |
from US $0.86 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
