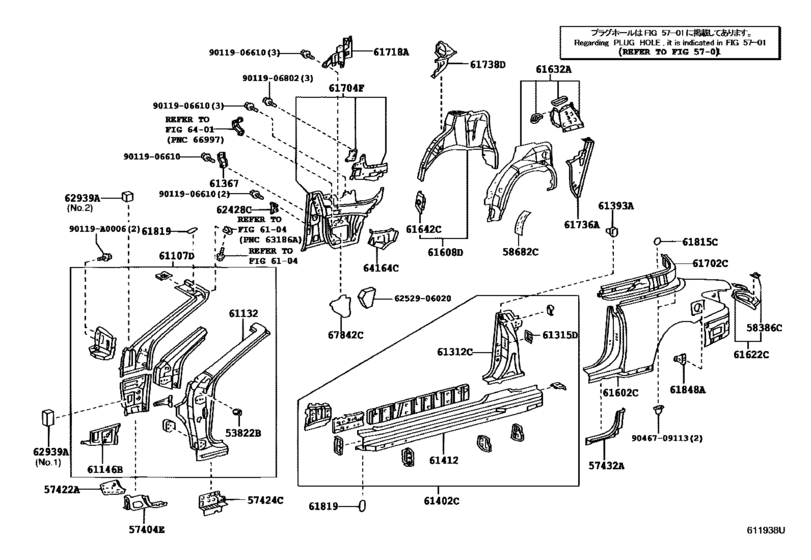

Side Member ([02.2004 - ] LH SIDE (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53821-16010 Bracket, Front Fender, Rear Rh[02.2004 - 05.2006] MCV31..CVT |
53821-16010 |
US $5.02 |
||
|
57404E
|
57404E
57404-33030 Reinforcement Sub-Assy, Floor Side, Inner LhFLOOR SIDE, INNER LH [02.2004 - 05.2006] MCV31..CVT |
57404-33030 |
US $41.50 |
||
|
57422A
|
57422A
57422-33020 Plate, Floor Side Rail, LhFLOOR SIDE RAIL, LH [02.2004 - 05.2006] MCV31..CVT |
57422-33020 |
US $19.22 |
||
|
57424C
|
57424C
57424-33010 Reinforcement, Front Floor Under, Inner LhFRONT FLOOR UNDER, INNER LH [02.2004 - 05.2006] MCV31..CVT |
57424-33010 |
US $48.05 |
||
|
57432A
|
57432A
57432-33010 Reinforcement, Center Floor, No.1 LhCENTER FLOOR, NO.1 LH [02.2004 - 05.2006] MCV31..CVT |
57432-33010 |
US $40.77 |
||
|
58386C
|
58386C
58385-AA030
Bracket, Rear Bumper Cover
[02.2004 - 05.2006] MCV31..CVT |
58385-AA030 |
— | ||
|
58682C
|
58682C
58681-06010
Sheet, Quarter Wheel House Inner Silencer, No.1 Rh
[02.2004 - 05.2006] MCV31..CVT |
58681-06010 |
— | ||
|
61107D
|
61107D
61107-33040 Pillar Sub-Assy, Front, LhFRONT, LH [02.2004 - 05.2006] MCV31..CVT |
61107-33040 |
US $645.01 |
||
|
61132
|
61132
61132-33050 Pillar, Front Body, Upper Outer LhFRONT BODY, UPPER OUTER LH [02.2004 - 05.2006] MCV31..CVT |
61132-33050 |
US $387.30 |
||
|
61146B
|
61146B
61146-AA030
Gusset, Front Body Pillar, Lower Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61146-AA030 |
— | ||
|
61312C
|
61312C
61312-33050
Panel, Rear Body Front Outside, Lh
[02.2004 - 05.2006] MCV31..CVT |
61312-33050 |
— | ||
|
61315D
|
61315D
61315-AA010
Retainer, Door Lock Striker, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61315-AA010 |
— | ||
|
61367
|
61367
61367-06020
Reinforcement, Belt Anchor To Center Pillar, Lower
[02.2004 - 05.2006] MCV31..CVT |
61367-06020 |
— | ||
|
61393A
|
61393A
61393-06010
Bracket, Center Body Pillar Seal, Rh
[02.2004 - 05.2006] MCV31..CVT |
61393-06010 |
— | ||
|
61402C
|
61402C
61402-06010
Panel Sub-Assy, Rocker, Outer Lh
[02.2004 - 05.2006] MCV31..CVT |
61402-06010 |
— | ||
|
61412
|
61412
61412-06030
Panel, Rocker, Outer Lh
[02.2004 - 05.2006] MCV31..CVT |
61412-06030 |
— | ||
|
61602C
|
61602C
61602-06110
Panel Sub-Assy, Quarter, Lh
[02.2004 - 05.2006] MCV31..CVT |
61602-06110 |
— | ||
|
61608D
|
61608D
61608-06070
Panel, Quarter Wheel House, Inner Lh
[02.2004 - 05.2006] MCV31..CVT |
61608-06070 |
— | ||
|
61622C
|
61622C
61698-AA902
Trough, Luggage Compartment Opening, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61698-AA902 |
— | ||
|
61632A
|
61632A
61606-06901
Panel, Quarter Wheel House, Outer Lh
[02.2004 - 05.2006] MCV31..CVT |
61606-06901 |
— | ||
|
61642C
|
61642C
61642-33040 Gusset, Quarter Wheel House, Front LhQUARTER WHEEL HOUSE, FRONT LH [02.2004 - 05.2006] MCV31..CVT |
61642-33040 |
US $19.66 |
||
|
61702C
|
61702C
61702-06020
Panel Sub-Assy, Roof Side, Outer Lh
[02.2004 - 08.2004] MCV31..CVT |
61702-06020 |
— | ||
| replacement | |||||
|
61702C
|
61702C
61702-06021
Panel Sub-Assy, Roof Side, Outer Lh
[02.2004 - 08.2004] MCV31..CVT |
61702-06021 |
— | ||
|
61702C
|
61702C
61702-06021
Panel Sub-Assy, Roof Side, Outer Lh
[08.2004 - 05.2006] MCV31..CVT |
61702-06021 |
— | ||
|
61704F
|
61704F
61704-06901
Panel Sub-Assy, Quarter, Inner Front Lh
[02.2004 - 05.2006] MCV31..CVT |
61704-06901 |
— | ||
|
61718A
|
61718A
61718-06010
Reinforcement, Quarter Panel Extension, Lh
[02.2004 - 05.2006] MCV31..CVT |
61718-06010 |
— | ||
|
61736A
|
61736A
61736-33070 Panel, Roof Side, Inner Rear LhROOF SIDE, INNER REAR LH [02.2004 - 05.2006] MCV31..CVT |
61736-33070 |
US $56.64 |
||
|
61738D
|
61738D
61738-33030 Reinforcement, Roof Side, Inner LhROOF SIDE, INNER LH [02.2004 - 05.2006] MCV31..CVT |
61738-33030 |
US $30.14 |
||
|
61815C
|
61815C
61815-AC030 Cover, Roof Side, Inner No.2 Rh[02.2004 - 05.2006] MCV31..CVT |
61815-AC030 |
US $6.55 |
||
|
61819
|
61819
61817-AA010
Cover, Roof Side, Inner Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61817-AA010 |
— | ||
| replacement | |||||
|
61819
|
61819
61824-12060 Plate, Noise Control, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61824-12060 |
US $2.91 |
||
|
61848A
|
61848A
61848-AC010 Retainer, Quarter Panel, Lh[07.2003 - 01.2005] ACV30,MCV31 |
61848-AC010 |
US $6.84 |
||
|
61848A
|
61848A
61848-AC031
Retainer, Quarter Panel, Lh
[02.2005 - 05.2006] ACV30,MCV31..5F,5FC |
61848-AC031 |
— | ||
|
62428C
|
62428C
62428-06020
Bracket, Center Pillar Garnish, Lh
[02.2004 - 05.2006] MCV31..CVT |
62428-06020 |
— | ||
|
62939A
|
62939A
62939-06010
Silencer, Quarter Vent
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.1 |
62939-06010 |
— | ||
|
62939A
|
62939A
62939-32030 Silencer, Quarter Vent[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.2 |
62939-32030 |
US $5.10 |
||
|
64164C
|
64164C
64164-06010
Cover, Back Corner, Lh
[02.2004 - 05.2006] MCV31..CVT |
64164-06010 |
— | ||
|
67842C
|
67842C
67842-06050
Cover, Quarter Service Hole, Lh
[02.2004 - 05.2006] MCV31..CVT |
67842-06050 |
— | ||
|
90119A0006
|
90119A0006
90119-A0006
New Genuine Part
|
90119-A0006 |
— | ||
|
6252906020
|
6252906020
62529-06020
Pad, Quarter Trim, No.2
|
62529-06020 |
— | ||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9046709113
|
9046709113
90467-09113 New Genuine Part |
90467-09113 |
US $1.60 |
||
