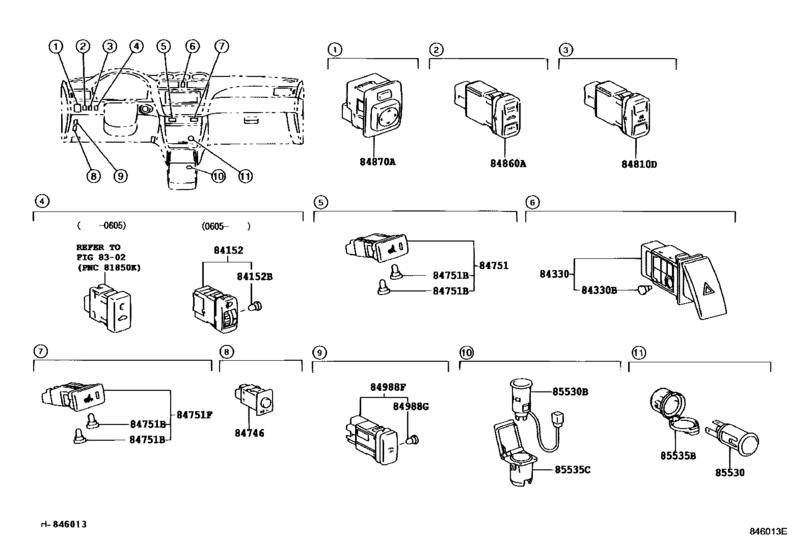

Switch & Relay & Computer ([02.2004 - ] INSTRUMENT PANEL (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-33030 Switch, Headlamp Leveling[05.2006 -] MCV31..CVT..SLE HEADLAMP-LOW:HID HI:HALOGEN; MCV31..CVT..SE HEADLAMP-LOW:HID HI:HALOGEN SPORT PACKAGE |
84152-33030 |
from US $45.72 |
||
|
84152B
|
84152B
90010-08107 Bulb (For Headlamp Leveling Switch)[05.2006 -] MCV31..CVT..SLE 14V 40MA,W(GREEN CAP),HEADLAMP-LOW:HID HI:HALOGEN; MCV31..CVT..SE 14V 40MA,W(GREEN CAP),HEADLAMP-LOW:HID HI:HALOGEN SPORT PACKAGE |
90010-08107 |
from US $2.60 |
||
|
84330
|
84330
84332-AA010
Switch Assy, Hazard Warning Signal
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84332-AA010 |
— | ||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[12.2003 - 05.2006] ACV30,MCV31..5F,5FC 14V 0.91W |
84999-10860 |
from US $4.84 |
||
|
84746
|
84746
84746-AA010
Switch, Tire Pressure Warning
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84746-AA010 |
— | ||
|
84746
|
84746
84746-AE010
Switch, Tire Pressure Warning
[05.2006 -] MCV31..CVT |
84746-AE010 |
— | ||
|
84751
|
84751
84751-06030
Switch, Seat Heater
[05.2006 -] MCV31..CVT..SLE SEAT HEATER-WITH(DRIVER&PASSENGER) |
84751-06030 |
— | ||
|
84751
|
84751
84751-AA010
Switch, Seat Heater
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE SEAT HEATER-WITH(D&P SEAT) |
84751-AA010 |
— | ||
|
84751B
|
84751B
90011-01018
Bulb, Hazard Warning Signal Switch
[05.2006 -] MCV31..CVT..SLE 14V 0.91W,W(SOCKET),SEAT HEATER-WITH(DRIVER&PASSENGER) |
90011-01018 |
— | ||
|
84751B
|
84751B
90011-01047
Bulb, Seat Heater Switch
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE 14V0.91W,W(GREEN CAP),SEAT HEATER-WITH(D&P SEAT) |
90011-01047 |
— | ||
|
84751B
|
84751B
90011-01067
Bulb, Seat Heater Switch
[05.2006 -] MCV31..CVT..SLE 14V 0.84W,SEAT HEATER-WITH(DRIVER&PASSENGER) |
90011-01067 |
— | ||
|
84751F
|
84751F
84751-06040
Switch, Seat Heater
[05.2006 -] MCV31..CVT..SLE SEAT HEATER-WITH(DRIVER&PASSENGER) |
84751-06040 |
— | ||
|
84751F
|
84751F
84751-AA020
Switch, Seat Heater
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE SEAT HEATER-WITH(D&P SEAT) |
84751-AA020 |
— | ||
|
84810D
|
84810D
84810-06021
Switch Assy, Power Window Regulator, Rear
[02.2004 - 05.2006] MCV31..CVT |
84810-06021 |
— | ||
|
84860A
|
84860A
84860-06010
Switch Assy, Sliding Roof
[02.2004 - 05.2006] MCV31..CVT |
84860-06010 |
— | ||
|
84870A
|
84870A
84870-AA010
Switch Assy, Outer Mirror
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84870-AA010 |
— | ||
|
84988F
|
84988F
84988-AE010
Switch, Traction Control
[07.2003 - 05.2006] MCV31 VSC-WITH |
84988-AE010 |
— | ||
|
84988G
|
84988G
90011-01038
Bulb, Air Conditioner Control
[07.2003 - 05.2006] MCV31 14V 0.84W,W(CAP),VSC-WITH |
90011-01038 |
— | ||
|
85530
|
85530
85530-AE010 Socket Assy, Power Outlet, No.1POWER POINT [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85530-AE010 |
from US $25.54 |
||
|
85530B
|
85530B
85530-33050 Socket Assy, Power Outlet, Rear No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85530-33050 |
US $37.56 |
||
|
85535B
|
85535B
85535-AA010 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85535-AA010 |
US $5.97 |
||
|
85535C
|
85535C
85535-33020 Cover, Power Outlet Socket, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85535-33020 |
US $11.36 |
