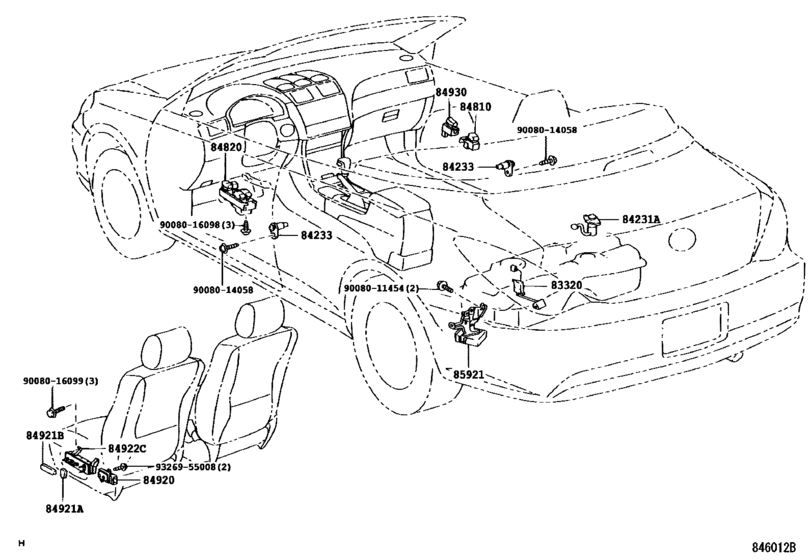

Switch & Relay & Computer ([02.2004 - ] DOOR,ROOF,FLOOR,SEAT & LUGGAGE (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-06010
Gage Assy, Fuel Sender
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC (L) |
83320-06010 |
— | ||
|
83320
|
83320
83320-07010
Gage Assy, Fuel Sender
[05.2006 - 12.2008] MCV31 |
83320-07010 |
— | ||
|
83320
|
83320
83320-33070 Gage Assy, Fuel Sender[07.2003 - 05.2006] ACV30,MCV31..5F,5FC (J) |
83320-33070 |
from US $59.91 |
||
|
84231A
|
84231A
84231-06010
Switch, Courtesy Lamp
[02.2004 - 05.2006] MCV31..CVT; MCV31..CVT..SLE AUDIO-CODE K FOR C/V |
84231-06010 |
— | ||
| replacement | |||||
|
84231A
|
84231A
84231-06011
Switch, Courtesy Lamp
[02.2004 - 05.2006] MCV31..CVT; MCV31..CVT..SLE AUDIO-CODE K FOR C/V |
84231-06011 |
— | ||
|
84233
|
84233
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84231-08030 |
from US $11.83 |
||
|
84810
|
84810
84810-08010
Switch Assy, Power Window Regulator
[07.2003 - 05.2006] ACV30..5FC;MCV31..CVT |
84810-08010 |
— | ||
|
84820
|
84820
84820-06051
Master Switch Assy, Power Window Regulator
[02.2004 - 09.2004] MCV31..CVT |
84820-06051 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-06052
Master Switch Assy, Power Window Regulator
[02.2004 - 09.2004] MCV31..CVT |
84820-06052 |
— | ||
|
84820
|
84820
84820-06052
Master Switch Assy, Power Window Regulator
[10.2004 - 05.2006] MCV31..CVT |
84820-06052 |
— | ||
|
84920
|
84920
84920-60050-A0
Switch, Front Power Seat(For Lumbar)
[07.2003 - 05.2006] ACV30..5FC;MCV31..SLE IVORY,TRIM0# |
84920-60050-A0 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-60050-A3 Switch, Front Power Seat(For Lumbar)FRONT POWER SEAT(FOR LUMBAR) [07.2003 - 05.2006] ACV30..5FC;MCV31..SLE IVORY,TRIM0# |
84920-60050-A3 |
US $46.72 |
||
|
84920
|
84920
84920-60050-B6 Switch Assy, Power SeatPOWER SEAT [07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1# |
84920-60050-B6 |
US $66.10 |
||
| replacement | |||||
|
84920
|
84920
84920-60050-B2 Switch Assy, Power SeatPOWER SEAT [07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1# |
84920-60050-B2 |
US $45.57 |
||
|
84920
|
84920
84920-AE010-A0
Switch Assy, Power Seat
[05.2006 - 12.2008] ACV30,MCV31 IVORY,TRIM0# |
84920-AE010-A0 |
— | ||
|
84920
|
84920
84920-AE010-B1
Switch Assy, Power Seat
[05.2006 - 12.2008] ACV30,MCV31..SLE DK. STONE,TRIM1#; ACV30,MCV31..SE DK. STONE,TRIM10 |
84920-AE010-B1 |
— | ||
|
84921A
|
84921A
84921-60120-A0 Knob, Power Seat Switch (For Reclining)[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE IVORY,TRIM0#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,IVORY,TRIM0# |
84921-60120-A0 |
US $10.13 |
||
|
84921A
|
84921A
84921-60120-B5
Knob, Power Seat Switch (For Reclining)
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,DK. STONE,TRIM10 |
84921-60120-B5 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-60120-B0 Knob, Power Seat Switch (For Reclining)[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,DK. STONE,TRIM10 |
84921-60120-B0 |
US $8.74 |
||
|
84921A
|
84921A
84921-AE010-A0
Knob, Power Seat Switch (For Reclining)
[05.2006 - 12.2008] ACV30,MCV31..SLE IVORY,TRIM0#; ACV30,MCV31..SE DRIVER POWER SEAT PACKAGE,IVORY,TRIM0# |
84921-AE010-A0 |
— | ||
|
84921A
|
84921A
84921-AE010-B3
Knob, Power Seat Switch (For Reclining)
[05.2006 - 12.2008] ACV30,MCV31..SLE DK. STONE,TRIM1#; ACV30,MCV31..SE DRIVER POWER SEAT PACKAGE,DK. STONE,TRIM10 |
84921-AE010-B3 |
— | ||
|
84921B
|
84921B
84921-60080-A0
Knob, Power Seat Switch (For Slide & Vertical)
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE IVORY,TRIM0#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,IVORY,TRIM0# |
84921-60080-A0 |
— | ||
| replacement | |||||
|
84921B
|
84921B
84921-58020-A0 Knob, Power Seat Switch (For Slide & Vertical)[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE IVORY,TRIM0#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,IVORY,TRIM0# |
84921-58020-A0 |
US $12.41 |
||
|
84921B
|
84921B
84921-60080-B5 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,DK. STONE,TRIM10 |
84921-60080-B5 |
US $11.21 |
||
| replacement | |||||
|
84921B
|
84921B
84921-60080-B0 Knob, Power Seat Switch (For Slide & Vertical)[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT,DK. STONE,TRIM10 |
84921-60080-B0 |
US $9.17 |
||
|
84921B
|
84921B
84921-AE020-A0
Knob, Power Seat Switch (For Slide & Vertical)
[05.2006 - 12.2008] ACV30,MCV31..SLE IVORY,TRIM0#; ACV30,MCV31..SE DRIVER POWER SEAT PACKAGE,IVORY,TRIM0# |
84921-AE020-A0 |
— | ||
|
84921B
|
84921B
84921-AE020-B3
Knob, Power Seat Switch (For Slide & Vertical)
[05.2006 - 12.2008] ACV30,MCV31..SLE DK. STONE,TRIM1#; ACV30,MCV31..SE DRIVER POWER SEAT PACKAGE,DK. STONE,TRIM10 |
84921-AE020-B3 |
— | ||
|
84922C
|
84922C
84922-60120 Switch, Front Power Seat, Lh[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE; ACV30,MCV31..(5F,5FC)..SE W/POWER SEAT |
84922-60120 |
from US $91.73 |
||
|
84922C
|
84922C
84922-AE010
Switch, Front Power Seat, Lh
[05.2006 - 12.2008] ACV30,MCV31..SLE; ACV30,MCV31..SE DRIVER POWER SEAT PACKAGE |
84922-AE010 |
— | ||
|
84930
|
84930
84930-AA010
Switch Assy, Door Control
[07.2003 - 10.2004] MCV31..CVT |
84930-AA010 |
— | ||
| replacement | |||||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[07.2003 - 10.2004] MCV31..CVT |
84930-AA020 |
— | ||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[10.2004 - 05.2006] ACV30,MCV31..5F,5FC |
84930-AA020 |
— | ||
|
85921
|
85921
85921-06011
Relay, Sliding Roof Control
[02.2004 - 05.2006] MCV31..CVT |
85921-06011 |
— | ||
|
9008011454
|
9008011454
90080-11454
New Genuine Part
|
90080-11454 |
— | ||
|
9008014058
|
9008014058
90080-14058
New Genuine Part
|
90080-14058 |
— | ||
|
9008016098
|
9008016098
90080-16098
New Genuine Part
|
90080-16098 |
— | ||
|
9008016099
|
9008016099
90080-16099 SCREW PAN TAPPING |
90080-16099 |
US $0.73 |
||
|
9326955008
|
9326955008
93269-55008 New Genuine Part |
93269-55008 |
US $0.83 |
||
