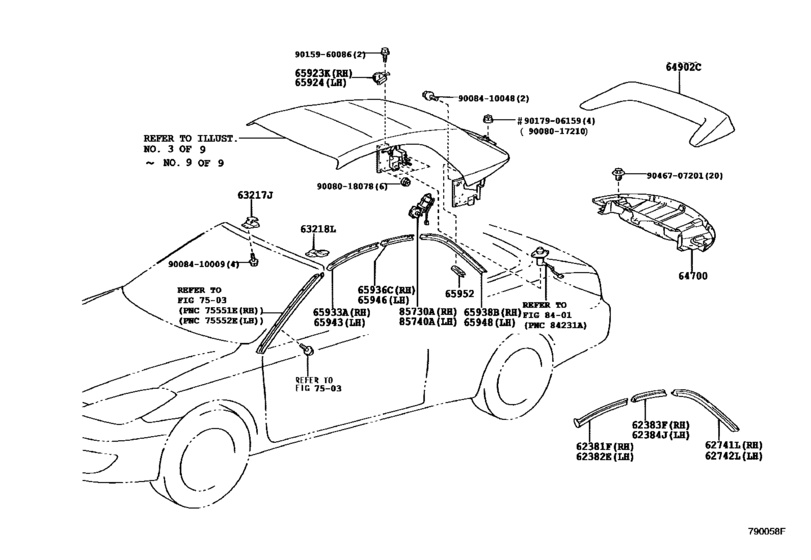

Convertible Parts ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62381F
|
62381F
62381-06040
Weatherstrip, Roof Side Rail, Front Rh
[02.2004 - 05.2006] MCV31..CVT |
62381-06040 |
— | ||
|
62382E
|
62382E
62382-06040
Weatherstrip, Roof Side Rail, Front Lh
[02.2004 - 05.2006] MCV31..CVT |
62382-06040 |
— | ||
|
62383F
|
62383F
62383-06010
Weatherstrip, Roof Side Rail, Rear Rh
[02.2004 - 05.2006] MCV31..CVT |
62383-06010 |
— | ||
|
62384J
|
62384J
62384-06010
Weatherstrip, Roof Side Rail, Rear Lh
[02.2004 - 05.2006] MCV31..CVT |
62384-06010 |
— | ||
|
62741L
|
62741L
62741-06010
Weatherstrip, Quarter Window, Rh
[02.2004 - 05.2006] MCV31..CVT |
62741-06010 |
— | ||
|
62742L
|
62742L
62742-06010
Weatherstrip, Quarter Window, Lh
[02.2004 - 05.2006] MCV31..CVT |
62742-06010 |
— | ||
|
63217J
|
63217J
63217-06030
Hook, Convertible Roof, Rh
[02.2004 - 05.2006] MCV31..CVT |
63217-06030 |
— | ||
|
63218L
|
63218L
63218-06020
Hook, Convertible Roof, Lh
[02.2004 - 05.2006] MCV31..CVT |
63218-06020 |
— | ||
|
64700
|
64700
64700-06010-C0
Cover Assy, Tarpaulin Storage
[02.2004 - 05.2006] MCV31..CVT BLACK,TRIM0#,1# |
64700-06010-C0 |
— | ||
|
64902C
|
64902C
64902-06010-A0
Cover Sub-Assy, Tonneau
[02.2004 - 08.2004] MCV31..CVT IVORY,071 ,202 ,3P0 ,8Q5 |
64902-06010-A0 |
— | ||
|
64902C
|
64902C
64902-06010-B0
Cover Sub-Assy, Tonneau
[02.2004 - 08.2004] MCV31..CVT DK. STONE,071 ,1C8 ,202 ,3P0 ,8Q5 |
64902-06010-B0 |
— | ||
|
64902C
|
64902C
64902-06011-B1
Cover Sub-Assy, Tonneau
[08.2004 - 04.2006] MCV31..CVT..SE DK.GRAY,TRIM11&071 ,1C8 ,202 ,3P0 ,8Q5; MCV31..CVT..SLE DK.GRAY,TRIM10&071 ,1C8 ,202 ,3P0 ,8Q5 |
64902-06011-B1 |
— | ||
| replacement | |||||
|
64902C
|
64902C
64902-06012-B1
Cover Sub-Assy, Tonneau
[08.2004 - 04.2006] MCV31..CVT..SE DK.GRAY,TRIM11&071 ,1C8 ,202 ,3P0 ,8Q5; MCV31..CVT..SLE DK.GRAY,TRIM10&071 ,1C8 ,202 ,3P0 ,8Q5 |
64902-06012-B1 |
— | ||
|
64902C
|
64902C
64902-06012-B1
Cover Sub-Assy, Tonneau
[05.2006 -] MCV31..CVT..SE DK.GRAY,TRIM10,11&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5 ,8T7; MCV31..CVT..SLE DK.GRAY,TRIM10&070 ,1D4 ,1F7 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 ,8T7 |
64902-06012-B1 |
— | ||
|
64902C
|
64902C
64902-06012-E0
Cover Sub-Assy, Tonneau
[05.2006 -] MCV31..CVT..SE ORCHID BROWN,TRIM00&070 ,1G3 ,202 ,3P0 ,8Q5 ,8R9 ,8T5; MCV31..CVT..SLE ORCHID BROWN,TRIM00&070 ,1G3 ,202 ,3P0 ,8Q5 ,8T5 |
64902-06012-E0 |
— | ||
|
65923K
|
65923K
65923-06010
Cover, Tarpaulin Rail Pivot Bracket, Rh
[02.2004 - 05.2006] MCV31..CVT |
65923-06010 |
— | ||
|
65924
|
65924
65924-06010
Cover, Tarpaulin Rail Pivot Bracket, Lh
[02.2004 - 05.2006] MCV31..CVT |
65924-06010 |
— | ||
|
65933A
|
65933A
65933-06010
Retainer, Tarpaulin Front Rail, Rh
[02.2004 - 05.2006] MCV31..CVT |
65933-06010 |
— | ||
|
65936C
|
65936C
65936-06010
Retainer, Tarpaulin Center Rail, Rh
[02.2004 - 05.2006] MCV31..CVT |
65936-06010 |
— | ||
|
65938B
|
65938B
65938-06010
Retainer, Tarpaulin Rear Rail, Rh
[02.2004 - 05.2006] MCV31..CVT |
65938-06010 |
— | ||
|
65943
|
65943
65943-06010
Retainer, Tarpaulin Front Rail, Lh
[02.2004 - 05.2006] MCV31..CVT |
65943-06010 |
— | ||
|
65946
|
65946
65946-06010
Rail, Curtain, No.6
[02.2004 - 05.2006] MCV31..CVT |
65946-06010 |
— | ||
|
65948
|
65948
65948-06010
Retainer, Tarpaulin Rear Rail, Lh
[02.2004 - 05.2006] MCV31..CVT |
65948-06010 |
— | ||
|
65952
|
65952
65952-33010 Damper, Tarpaulin RailTARPAULIN RAIL [02.2004 - 05.2006] MCV31..CVT |
65952-33010 |
US $12.96 |
||
|
85730A
|
85730A
85730-33030
Motor Assy, Convertible Roof
[02.2004 - 05.2006] MCV31..CVT |
85730-33030 |
— | ||
|
85740A
|
85740A
85740-33010
Motor Assy, Convertible Roof, Lh
[02.2004 - 05.2006] MCV31..CVT |
85740-33010 |
— | ||
|
9008017210
|
9008017210
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9008018078
|
9008018078
90080-18078
New Genuine Part
|
90080-18078 |
— | ||
|
9008410009
|
9008410009
90084-10009 New Genuine Part |
90084-10009 |
US $1.16 |
||
|
9008410048
|
9008410048
90084-10048
New Genuine Part
|
90084-10048 |
— | ||
| replacement | |||||
|
9008410048
|
9008410048
90105-A0260
New Genuine Part
|
90105-A0260 |
— | ||
|
9015960086
|
9015960086
90159-60086
New Genuine Part
|
90159-60086 |
— | ||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $0.93 |
||
