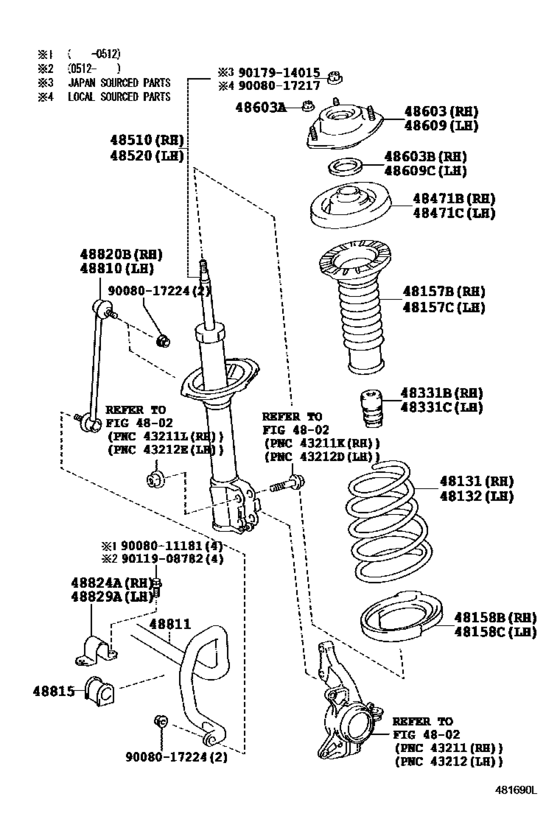

Front Spring & Shock Absorber ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-AA260
Spring, Front Coil, Rh
[02.2004 - 08.2004] MCV31..CVT |
48131-AA260 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-AA262
Spring, Front Coil, Rh
[02.2004 - 08.2004] MCV31..CVT |
48131-AA262 |
— | ||
|
48131
|
48131
48131-AA261
Spring, Front Coil, Rh
[08.2004 - 02.2006] MCV31..CVT |
48131-AA261 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-AA262
Spring, Front Coil, Rh
[08.2004 - 02.2006] MCV31..CVT |
48131-AA262 |
— | ||
|
48131
|
48131
48131-AA262
Spring, Front Coil, Rh
[03.2006 - 05.2006] MCV31..CVT |
48131-AA262 |
— | ||
|
48132
|
48132
48131-AA260
Spring, Front Coil, Rh
[02.2004 - 08.2004] MCV31..CVT |
48131-AA260 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-AA262
Spring, Front Coil, Rh
[02.2004 - 08.2004] MCV31..CVT |
48131-AA262 |
— | ||
|
48132
|
48132
48131-AA261
Spring, Front Coil, Rh
[08.2004 - 02.2006] MCV31..CVT |
48131-AA261 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-AA262
Spring, Front Coil, Rh
[08.2004 - 02.2006] MCV31..CVT |
48131-AA262 |
— | ||
|
48132
|
48132
48131-AA262
Spring, Front Coil, Rh
[03.2006 - 05.2006] MCV31..CVT |
48131-AA262 |
— | ||
|
48157B
|
48157B
48157-06082
Insulator, Front Coil Spring, Upper Rh
[01.2004 - 05.2006] MCV31;ACV30..5F |
48157-06082 |
— | ||
|
48157C
|
48157C
48157-06082
Insulator, Front Coil Spring, Upper Rh
[01.2004 - 05.2006] ACV30,MCV31..5F,5FC |
48157-06082 |
— | ||
|
48158B
|
48158B
48158-33031 Insulator, Front Coil Spring, Lower[05.2006 -] MCV31..CVT (J) |
48158-33031 |
from US $18.53 |
||
|
48158B
|
48158B
48158-AA030
Insulator, Front Coil Spring, Lower Rh
[09.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48158-AA030 |
— | ||
| replacement | |||||
|
48158B
|
48158B
48158-33031 Insulator, Front Coil Spring, Lower[09.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48158-33031 |
from US $18.53 |
||
|
48158C
|
48158C
48158-33031 Insulator, Front Coil Spring, Lower[05.2006 -] MCV31..CVT (J) |
48158-33031 |
from US $18.53 |
||
|
48158C
|
48158C
48158-AA030
Insulator, Front Coil Spring, Lower Rh
[09.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48158-AA030 |
— | ||
| replacement | |||||
|
48158C
|
48158C
48158-33031 Insulator, Front Coil Spring, Lower[09.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48158-33031 |
from US $18.53 |
||
|
48331B
|
48331B
48331-AA010 Bumper, Front Spring, RhFRONT SPRING, RH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48331-AA010 |
US $13.38 |
||
|
48331C
|
48331C
48331-AA010 Bumper, Front Spring, RhFRONT SPRING, RH [05.2006 -] MCV31..CVT |
48331-AA010 |
US $13.38 |
||
|
48471B
|
48471B
48471-AA010
Seat, Front Coil Spring, Upper Rh
[05.2006 -] MCV31..CVT |
48471-AA010 |
— | ||
|
48471C
|
48471C
48471-AA010
Seat, Front Coil Spring, Upper Rh
[05.2006 -] MCV31..CVT |
48471-AA010 |
— | ||
|
48510
|
48510
48510-09Q40
Absorber Assy, Shock, Front Rh
[12.2005 - 05.2006] MCV31..CVT MARK 48510-06600 |
48510-09Q40 |
— | ||
|
48510
|
48510
48510-A9380 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [02.2004 - 12.2005] MCV31..CVT MARK 48510-AA100 |
48510-A9380 |
US $345.07 |
||
|
48520
|
48520
48520-09J90
Absorber Assy, Shock, Front Lh
[12.2005 - 05.2006] MCV31..CVT MARK 48520-06600 |
48520-09J90 |
— | ||
|
48520
|
48520
48520-A9240
Absorber Assy, Shock, Front Lh
[02.2004 - 12.2005] MCV31..CVT MARK 48520-AA100 |
48520-A9240 |
— | ||
|
48603
|
48603
48609-06090
Support Sub-Assy, Front Suspension, Rh
[07.2003 - 12.2005] MCV31; ACV30..5F,5FC |
48609-06090 |
— | ||
|
48603
|
48603
48609-06091
Support Sub-Assy, Front Suspension, Rh
[12.2005 - 05.2006] ACV30,MCV31 |
48609-06091 |
— | ||
|
48603A
|
48603A
90178-10017 Nut(For Front Suspension Support)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC (J) |
90178-10017 |
from US $0.89 |
||
|
48603A
|
48603A
90178-A0004
Nut(For Front Suspension Support)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC (L) |
90178-A0004 |
— | ||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[07.2003 - 05.2006] MCV31;ACV30..4FC,5F |
90903-63014 |
from US $31.26 |
||
|
48609
|
48609
48609-06090
Support Sub-Assy, Front Suspension, Rh
[07.2003 - 12.2005] MCV31; ACV30..5F,5FC |
48609-06090 |
— | ||
|
48609
|
48609
48609-06091
Support Sub-Assy, Front Suspension, Rh
[12.2005 - 05.2006] ACV30,MCV31 |
48609-06091 |
— | ||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[07.2003 - 05.2006] MCV31;ACV30..4FC,5F |
90903-63014 |
from US $31.26 |
||
|
48810
|
48810
48820-06040
Link Assy, Front Stabilizer
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48820-06040 |
— | ||
|
48811
|
48811
48811-AA060
Bar, Stabilizer, Front
[07.2003 - 05.2006] MCV31 OD=24; ACV30..(5F,5FC)..SE SPORT PACKAGE,OD=24 |
48811-AA060 |
— | ||
|
48815
|
48815
48815-06090
Bush, Front Stabilizer Bar, No.1
[07.2003 - 05.2006] MCV31 OD=24; ACV30..(5F,5FC)..SE SPORT PACKAGE,OD=24 |
48815-06090 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-33101 Bush, Front Stabilizer Bar, No.1[07.2003 - 05.2006] MCV31 OD=24; ACV30..(5F,5FC)..SE SPORT PACKAGE,OD=24 |
48815-33101 |
from US $8.38 |
||
|
48820B
|
48820B
48820-06040
Link Assy, Front Stabilizer
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48820-06040 |
— | ||
|
48824A
|
48824A
48824-06020
Bracket, Stabilizer, Front
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48824-06020 |
— | ||
|
48829A
|
48829A
48824-06020
Bracket, Stabilizer, Front
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
48824-06020 |
— | ||
|
9008011181
|
9008011181
90080-11181
New Genuine Part
|
90080-11181 |
— | ||
|
9008017217
|
9008017217
90080-17217
Nut(For Front Support To Front Shock Absorber Rh)
|
90080-17217 |
— | ||
|
9008017224
|
9008017224
90080-17224
Nut(For Front Stabilizer Link)
|
90080-17224 |
— | ||
|
9011908782
|
9011908782
90119-08782 Bolt, W/washer(For Transmission Case Cover) |
90119-08782 |
from US $1.46 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $0.87 |
||
