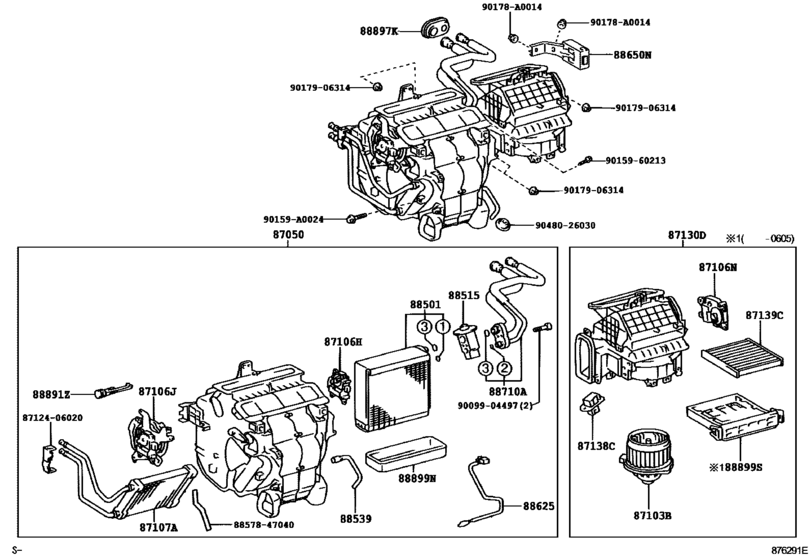

Heating & Air Conditioning - Cooler Unit ([07.2003 - ] MANUAL AIR CONDITIONER (0307- )SE) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-06252
Radiator Assy, Air Conditioner
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
87050-06252 |
— | ||
|
87103B
|
87103B
87103-06030
Motor Sub-Assy, Blower W/fan
[07.2003 - 11.2004] ACV30,MCV31..SE |
87103-06030 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-06031
Motor Sub-Assy, Blower W/fan
[07.2003 - 11.2004] ACV30,MCV31..SE |
87103-06031 |
— | ||
|
87103B
|
87103B
87103-06031
Motor Sub-Assy, Blower W/fan
[11.2004 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
87103-06031 |
— | ||
|
87106H
|
87106H
87106-07081
Servo Sub-Assy, Damper(For Airmix)
[07.2003 - 05.2006] MCV31;ACV30..5F |
87106-07081 |
— | ||
|
87106J
|
87106J
87106-06140
Servo Sub-Assy, Damper(For Mode)
[07.2003 - 05.2006] ACV30..5F;MCV31..SE |
87106-06140 |
— | ||
|
87106N
|
87106N
87106-06120
Servo Sub-Assy, Damper(For Recirculation)
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
87106-06120 |
— | ||
|
87107A
|
87107A
87107-06040
Unit Sub-Assy, Heater Radiator
[07.2003 - 05.2006] ACV30,MCV31 |
87107-06040 |
— | ||
|
87130D
|
87130D
87130-06090
Blower Assy
[07.2003 - 07.2004] ACV30,MCV31..SE |
87130-06090 |
— | ||
|
87130D
|
87130D
87130-06230
Blower Assy
[07.2004 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
87130-06230 |
— | ||
|
87138C
|
87138C
87138-41020 Resistor, BlowerBLOWER [07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
87138-41020 |
US $41.93 |
||
|
87139C
|
87139C
87139-06030
Filter, Clean Air
[12.2003 - 07.2004] ACV30,MCV31 |
87139-06030 |
— | ||
|
87139C
|
87139C
87139-06040
Filter, Clean Air
[11.2004 - 05.2006] ACV30,MCV31 |
87139-06040 |
— | ||
|
87139C
|
87139C
87139-28010 Filter, Clean Air[07.2004 - 11.2004] ACV30,MCV31..SE |
87139-28010 |
from US $26.11 |
||
|
88501
|
88501
88501-07020
Evaporator Sub-Assy, Cooler, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
88501-07020 |
— | ||
|
88515
|
88515
88515-07040
Valve, Cooler Expansion
[12.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
88515-07040 |
— | ||
|
88539
|
88539
88539-06030
Hose, Cooler Unit Drain, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
88539-06030 |
— | ||
|
88625
|
88625
88625-33170
Thermistor, Cooler, No.1
[05.2006 -] MCV31..CVT |
88625-33170 |
— | ||
|
88650N
|
88650N
88650-06290
Amplifier Assy, Air Conditioner
[05.2006 -] MCV31..CVT..SE |
88650-06290 |
— | ||
|
88710A
|
88710A
88710-07060
Tube Assy, Air Conditioner
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
88710-07060 |
— | ||
|
88891Z
|
88891Z
88891-50060
Bracket, Cooler Thermistor
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
88891-50060 |
— | ||
|
88897K
|
88897K
88897-06010
Grommet, (For Cooler Pipe)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
88897-06010 |
— | ||
|
88899N
|
88899N
88899-41020
Plate, Cover
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
88899-41020 |
— | ||
|
88899S
|
88899S
88899-06020
Plate, Cover(For Air Filter)
[12.2003 - 05.2006] ACV30,MCV31 |
88899-06020 |
— | ||
|
90159A0024
|
90159A0024
90159-A0024
New Genuine Part
|
90159-A0024 |
— | ||
|
90178A0014
|
90178A0014
90178-A0014
New Genuine Part
|
90178-A0014 |
— | ||
|
8712406020
|
8712406020
87124-06020
Clamp, Heater
|
87124-06020 |
— | ||
|
8857847040
|
8857847040
88578-47040
Paking, Cooler Air Duct
|
88578-47040 |
— | ||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
US $5.02 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.78 |
||
|
9048026030
|
9048026030
90480-26030 Grommet (For Cooler Unit Drain Hose) |
90480-26030 |
US $2.07 |
||
