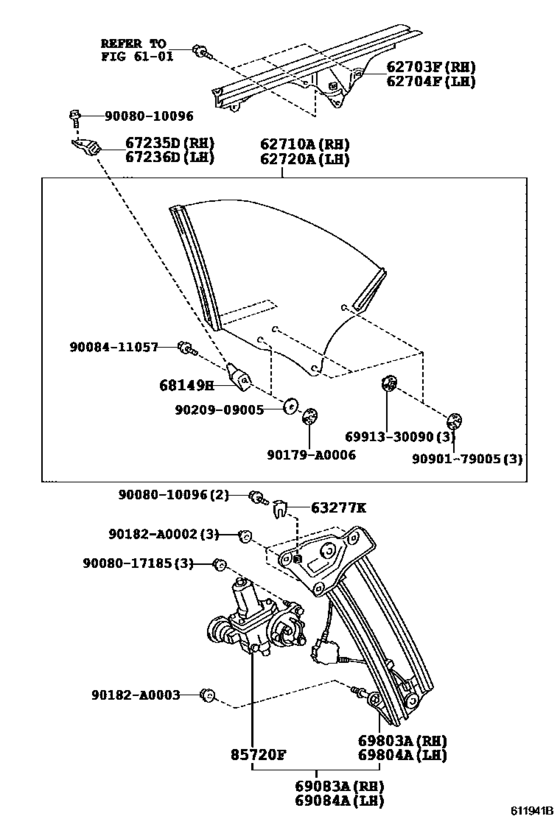

Quarter Window ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62703F
|
62703F
62703-33020 Retainer Sub-Assy, Quarter Window Glass, Rear Rh[02.2004 - 03.2004] MCV31..CVT |
62703-33020 |
US $75.71 |
||
| replacement | |||||
|
62703F
|
62703F
62703-33021 Retainer Sub-Assy, Quarter Window Glass, Rear Rh[02.2004 - 03.2004] MCV31..CVT |
62703-33021 |
US $75.71 |
||
|
62703F
|
62703F
62703-33021 Retainer Sub-Assy, Quarter Window Glass, Rear Rh[04.2004 - 05.2006] MCV31..CVT |
62703-33021 |
US $75.71 |
||
|
62704F
|
62704F
62704-33020 Retainer Sub-Assy, Quarter Window Glass, Rear Lh[02.2004 - 03.2004] MCV31..CVT |
62704-33020 |
US $75.71 |
||
| replacement | |||||
|
62704F
|
62704F
62704-33021 Retainer Sub-Assy, Quarter Window Glass, Rear Lh[02.2004 - 03.2004] MCV31..CVT |
62704-33021 |
US $75.71 |
||
|
62704F
|
62704F
62704-33021 Retainer Sub-Assy, Quarter Window Glass, Rear Lh[04.2004 - 05.2006] MCV31..CVT |
62704-33021 |
US $75.71 |
||
|
62710A
|
62710A
62710-06150
Window Assy, Quarter, Rh
[02.2004 - 05.2006] MCV31..CVT *UVCT,T=5.0,GREEN |
62710-06150 |
— | ||
|
62720A
|
62720A
62720-06070
Window Assy, Quarter, Lh
[02.2004 - 05.2006] MCV31..CVT *UVCT,T=5.0,GREEN |
62720-06070 |
— | ||
|
63277K
|
63277K
63277-30060 Shim, Window Regulator[02.2004 - 05.2006] MCV31..CVT |
63277-30060 |
US $2.15 |
||
|
67235D
|
67235D
67235-06010
Stabilizer, Quarter Window Glass Female, Rh
[02.2004 - 05.2006] MCV31..CVT |
67235-06010 |
— | ||
|
67236D
|
67236D
67236-06010
Stabilizer, Quarter Window Glass Female, Lh
[02.2004 - 05.2006] MCV31..CVT |
67236-06010 |
— | ||
|
68149H
|
68149H
68149-06010
Stabilizer, Quarter Window Glass Male
[02.2004 - 05.2006] MCV31..CVT |
68149-06010 |
— | ||
|
69083A
|
69083A
69083-06010
Guide Sub-Assy, Quarter Window, Rh
[02.2004 - 05.2006] MCV31..CVT |
69083-06010 |
— | ||
|
69084A
|
69084A
69084-06010
Guide Sub-Assy, Quarter Window, Lh
[02.2004 - 05.2006] MCV31..CVT |
69084-06010 |
— | ||
|
69803A
|
69803A
69803-06050
Regulator Sub-Assy, Quarter Window, Rh
[02.2004 - 05.2006] MCV31..CVT |
69803-06050 |
— | ||
|
69804A
|
69804A
69804-06050
Regulator Sub-Assy, Quarter Window, Lh
[02.2004 - 05.2006] MCV31..CVT |
69804-06050 |
— | ||
|
85720F
|
85720F
85710-AA060
Motor Assy, Power Window Regulator, Rh
[02.2004 - 05.2006] MCV31..CVT RH |
85710-AA060 |
— | ||
|
85720F
|
85720F
85720-06050
Motor Assy, Power Window Regulator, Lh
[02.2004 - 05.2006] MCV31..CVT LH |
85720-06050 |
— | ||
|
90179A0006
|
90179A0006
90179-A0006
New Genuine Part
|
90179-A0006 |
— | ||
|
90182A0002
|
90182A0002
90182-A0002
New Genuine Part
|
90182-A0002 |
— | ||
|
90182A0003
|
90182A0003
90182-A0003 New Genuine Part |
90182-A0003 |
US $0.87 |
||
|
6991330090
|
6991330090
69913-30090
Bolt, Front Door Glass Setting
|
69913-30090 |
— | ||
|
9008010096
|
9008010096
90080-10096
New Genuine Part
|
90080-10096 |
— | ||
| replacement | |||||
|
9008010096
|
9008010096
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9008017185
|
9008017185
90080-17185
New Genuine Part
|
90080-17185 |
— | ||
|
9008411057
|
9008411057
90084-11057
New Genuine Part
|
90084-11057 |
— | ||
|
9020909005
|
9020909005
90209-09005 New Genuine Part |
90209-09005 |
US $1.25 |
||
|
9090179005
|
9090179005
90901-79005 New Genuine Part |
90901-79005 |
US $2.33 |
||
