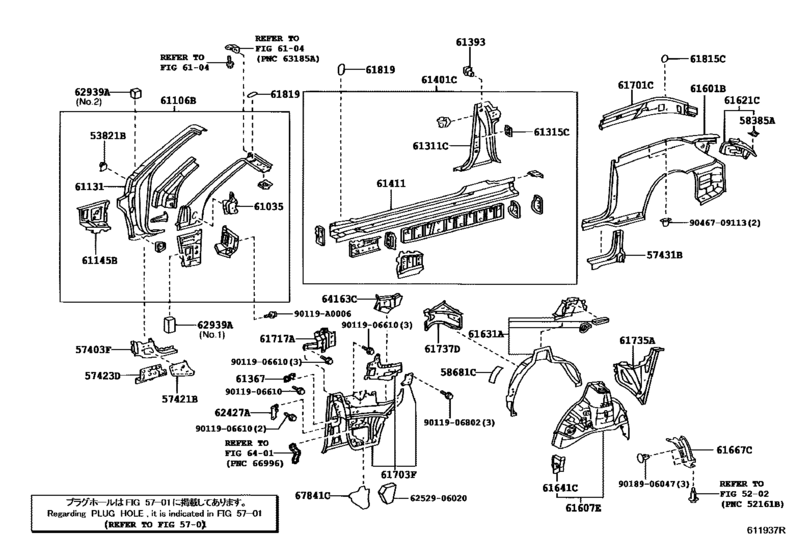

Side Member ([02.2004 - ] RH SIDE (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-16010 Bracket, Front Fender, Rear Rh[02.2004 - 05.2006] MCV31..CVT |
53821-16010 |
US $5.02 |
||
|
57403F
|
57403F
57403-33030 Reinforcement Sub-Assy, Floor Side, Inner RhFLOOR SIDE, INNER RH [02.2004 - 05.2006] MCV31..CVT |
57403-33030 |
US $41.50 |
||
|
57421B
|
57421B
57421-33030 Plate, Floor Side Rail, RhFLOOR SIDE RAIL, RH [02.2004 - 05.2006] MCV31..CVT |
57421-33030 |
US $19.22 |
||
|
57423D
|
57423D
57423-33010 Reinforcement, Front Floor Under, Inner RhFRONT FLOOR UNDER, INNER RH [02.2004 - 05.2006] MCV31..CVT |
57423-33010 |
US $48.05 |
||
|
57431B
|
57431B
57431-33010 Reinforcement, Center Floor, No.1 RhCENTER FLOOR, NO.1 RH [02.2004 - 05.2006] MCV31..CVT |
57431-33010 |
US $40.77 |
||
|
58385A
|
58385A
58385-AA030
Bracket, Rear Bumper Cover
[02.2004 - 05.2006] MCV31..CVT |
58385-AA030 |
— | ||
|
58681C
|
58681C
58681-06010
Sheet, Quarter Wheel House Inner Silencer, No.1 Rh
[02.2004 - 05.2006] MCV31..CVT |
58681-06010 |
— | ||
|
61035
|
61035
61165-33030 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [02.2004 - 05.2006] MCV31..CVT |
61165-33030 |
US $30.43 |
||
|
61106B
|
61106B
61106-33040 Pillar Sub-Assy, Front, RhFRONT, RH [02.2004 - 05.2006] MCV31..CVT |
61106-33040 |
US $645.01 |
||
|
61131
|
61131
61131-33050 Pillar, Front Body, Upper Outer RhFRONT BODY, UPPER OUTER RH [02.2004 - 05.2006] MCV31..CVT |
61131-33050 |
US $387.30 |
||
|
61145B
|
61145B
61145-AA030
Gusset, Front Body Pillar, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61145-AA030 |
— | ||
|
61311C
|
61311C
61311-33050
Panel, Rear Body Front Outside, Rh
[02.2004 - 05.2006] MCV31..CVT |
61311-33050 |
— | ||
|
61315C
|
61315C
61315-AA010
Retainer, Door Lock Striker, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61315-AA010 |
— | ||
|
61367
|
61367
61367-06020
Reinforcement, Belt Anchor To Center Pillar, Lower
[02.2004 - 05.2006] MCV31..CVT |
61367-06020 |
— | ||
|
61393
|
61393
61393-06010
Bracket, Center Body Pillar Seal, Rh
[02.2004 - 05.2006] MCV31..CVT |
61393-06010 |
— | ||
|
61401C
|
61401C
61401-06010
Panel Sub-Assy, Rocker, Outer Rh
[02.2004 - 05.2006] MCV31..CVT |
61401-06010 |
— | ||
|
61411
|
61411
61411-06030
Panel, Rocker, Outer Rh
[02.2004 - 05.2006] MCV31..CVT |
61411-06030 |
— | ||
|
61601B
|
61601B
61601-06120
Panel Sub-Assy, Quarter, Rh
[02.2004 - 05.2006] MCV31..CVT |
61601-06120 |
— | ||
|
61607E
|
61607E
61607-06070
Panel, Quarter Wheel House, Inner Rh
[02.2004 - 05.2006] MCV31..CVT |
61607-06070 |
— | ||
|
61621C
|
61621C
61697-AA904
Trough, Luggage Compartment Opening, Rh
[07.2003 - 05.2006] ACV30,MCV31 |
61697-AA904 |
— | ||
|
61631A
|
61631A
61605-06901
Panel, Quarter Wheel House, Outer Rh
[02.2004 - 05.2006] MCV31..CVT |
61605-06901 |
— | ||
|
61641C
|
61641C
61641-33040 Gusset, Quarter Wheel House, Front RhQUARTER WHEEL HOUSE, FRONT RH [02.2004 - 05.2006] MCV31..CVT |
61641-33040 |
US $19.66 |
||
|
61667C
|
61667C
61667-AA030
Seal, Qaurter Panel, No.1
[07.2003 - 11.2004] MCV31..CVT |
61667-AA030 |
— | ||
|
61701C
|
61701C
61701-06020
Panel Sub-Assy, Roof Side, Outer Rh
[02.2004 - 08.2004] MCV31..CVT |
61701-06020 |
— | ||
| replacement | |||||
|
61701C
|
61701C
61701-06021
Panel Sub-Assy, Roof Side, Outer Rh
[02.2004 - 08.2004] MCV31..CVT |
61701-06021 |
— | ||
|
61701C
|
61701C
61701-06021
Panel Sub-Assy, Roof Side, Outer Rh
[08.2004 - 05.2006] MCV31..CVT |
61701-06021 |
— | ||
|
61703F
|
61703F
61703-06901
Panel Sub-Assy, Quarter, Inner Front Rh
[02.2004 - 05.2006] MCV31..CVT |
61703-06901 |
— | ||
|
61717A
|
61717A
61717-06010
Reinforcement, Quarter Panel Extension, Rh
[02.2004 - 05.2006] MCV31..CVT |
61717-06010 |
— | ||
|
61735A
|
61735A
61735-33070 Panel, Roof Side, Inner Rear RhROOF SIDE, INNER REAR RH [02.2004 - 05.2006] MCV31..CVT |
61735-33070 |
US $165.98 |
||
|
61737D
|
61737D
61737-33030 Reinforcement, Roof Side, Inner RhROOF SIDE, INNER RH [02.2004 - 05.2006] MCV31..CVT |
61737-33030 |
US $30.14 |
||
|
61815C
|
61815C
61815-AC030 Cover, Roof Side, Inner No.2 Rh[02.2004 - 05.2006] MCV31..CVT |
61815-AC030 |
US $6.55 |
||
|
61819
|
61819
61817-AA010
Cover, Roof Side, Inner Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61817-AA010 |
— | ||
| replacement | |||||
|
61819
|
61819
61824-12060 Plate, Noise Control, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61824-12060 |
US $2.91 |
||
|
62427A
|
62427A
62427-06030
Bracket, Center Pillar Garnish, Rh
[02.2004 - 05.2006] MCV31..CVT |
62427-06030 |
— | ||
|
62939A
|
62939A
62939-06010
Silencer, Quarter Vent
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.1 |
62939-06010 |
— | ||
|
62939A
|
62939A
62939-32030 Silencer, Quarter Vent[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.2 |
62939-32030 |
US $5.10 |
||
|
64163C
|
64163C
64163-06010
Cover, Back Corner, Rh
[02.2004 - 05.2006] MCV31..CVT |
64163-06010 |
— | ||
|
67841C
|
67841C
67841-06050
Cover, Quarter Service Hole, Rh
[02.2004 - 05.2006] MCV31..CVT |
67841-06050 |
— | ||
|
90119A0006
|
90119A0006
90119-A0006
New Genuine Part
|
90119-A0006 |
— | ||
|
6252906020
|
6252906020
62529-06020
Pad, Quarter Trim, No.2
|
62529-06020 |
— | ||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9018906047
|
9018906047
90189-06047 GROMMET |
90189-06047 |
from US $0.59 |
||
|
9046709113
|
9046709113
90467-09113 New Genuine Part |
90467-09113 |
US $1.60 |
||
