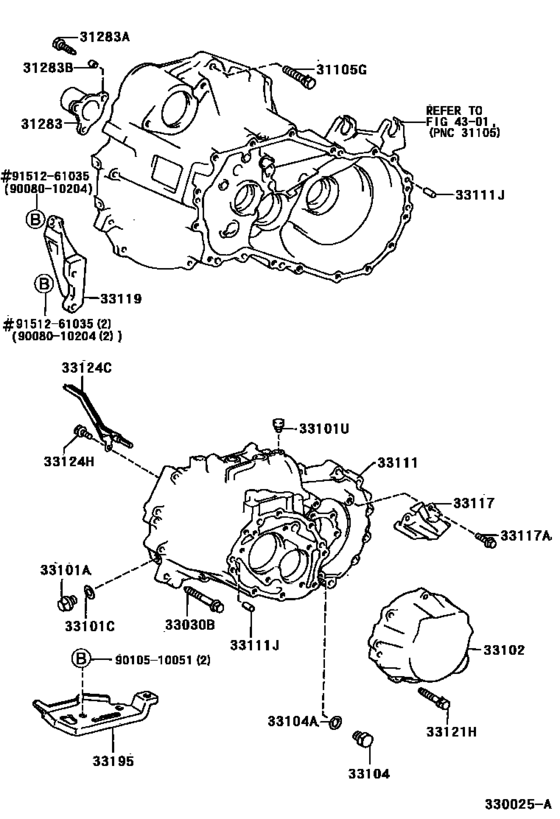

Clutch Housing & Transmission Case (Mtm) ([06.1998 - 07.2001] S51 (9806-0107)SXV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2001] SXV20..MTM *8-1.25PX18-15,(L) |
90080-10083 |
— | ||
|
31105G
|
31105G
90080-11310 Bolt(For Transaxle & Engine Setting)[12.1999 - 07.2001] SXV20..MTM *12-1.25PX55-30,(L) |
90080-11310 |
US $4.08 |
||
|
31105G
|
31105G
90105-08040
Bolt(For Plate Bolt Lock)
[06.1998 - 07.2001] SXV20..MTM *8-1.25PX18-15,(J) |
90105-08040 |
— | ||
| replacement | |||||
|
31105G
|
31105G
91641-H0820 Bolt[06.1998 - 07.2001] SXV20..MTM *8-1.25PX18-15,(J) |
91641-H0820 |
from US $0.80 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[06.1998 - 12.1999] SXV20..MTM *12-1.25PX55-30 |
90119-12168 |
from US $1.96 |
||
|
31283
|
31283
31283-32010
Retainer, Clutch Release Bearing Hub
[06.1998 - 07.2001] SXV20..MTM |
31283-32010 |
— | ||
|
31283A
|
31283A
90105-06023 Bolt(For Clutch Release Bearing Hub Retainer)[06.1998 - 07.2001] SXV20..MTM |
90105-06023 |
US $2.77 |
||
| replacement | |||||
|
31283A
|
31283A
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer)[06.1998 - 07.2001] SXV20..MTM |
91511-B0620 |
from US $0.70 |
||
|
31283B
|
31283B
90253-08002 Pin, Ring(For Clutch Release Bearing Hub Retainer)[06.1998 - 07.2001] SXV20..MTM |
90253-08002 |
US $2.62 |
||
|
33030B
|
33030B
90105-08042
Bolt(For Transaxle Case & Transmission Case Setting)
[06.1998 - 07.2001] SXV20..MTM *8-1.25PX45-27.5 |
90105-08042 |
— | ||
| replacement | |||||
|
33030B
|
33030B
90105-08430 Bolt(For Transaxle Case & Transmission Case Setting)[06.1998 - 07.2001] SXV20..MTM *8-1.25PX45-27.5 |
90105-08430 |
US $0.79 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[06.1998 - 07.2001] SXV20..MTM |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
US $0.99 |
||
|
33101U
|
33101U
90930-03133 Plug, Breather[06.1998 - 07.2001] SXV20..MTM |
90930-03133 |
from US $6.63 |
||
|
33102
|
33102
33102-33020 Cover Sub-Assy, Manual Transmission Case[06.1998 - 07.2001] SXV20..MTM |
33102-33020 |
US $219.86 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33111-32030 Case, Manual Transmission[06.1998 - 07.2001] SXV20..MTM |
33111-32030 |
US $512.51 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[06.1998 - 07.2002] MCV20,SXV20..MTM L=23,OD=8 |
90250-08054 |
from US $0.95 |
||
|
33117
|
33117
33117-32011 Protector, Manual Transmission Case[06.1998 - 07.2001] SXV20..MTM |
33117-32011 |
US $27.08 |
||
|
33117A
|
33117A
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (L) |
90080-10083 |
— | ||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
91641-H0820 |
from US $0.80 |
||
|
33119
|
33119
33119-33010
Plate, Stiffener, Lh(Mtm)
[06.1998 - 07.2001] SXV20..MTM |
33119-33010 |
— | ||
|
33121H
|
33121H
90105-08273 Bolt, W/washer(For Transmission Case Cover)[06.1998 - 07.2001] SXV20..MTM |
90105-08273 |
US $1.65 |
||
|
33124C
|
33124C
33124-33010 Pipe, Oil Receiver, No.1(Mtm)[06.1998 - 07.2001] SXV20..MTM |
33124-33010 |
US $9.61 |
||
|
33124H
|
33124H
91651-60618 Bolt(For Oil Receiver Pipe)[06.1998 - 07.2001] SXV20..MTM |
91651-60618 |
from US $1.16 |
||
|
33195
|
33195
33195-33010 Hanger, Transmission Case, No.1TRANSMISSION CASE, NO.1 [06.1998 - 07.2001] SXV20..MTM |
33195-33010 |
US $18.20 |
||
|
9008010204
|
9008010204
90080-10204
New Genuine Part
|
90080-10204 |
— | ||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
