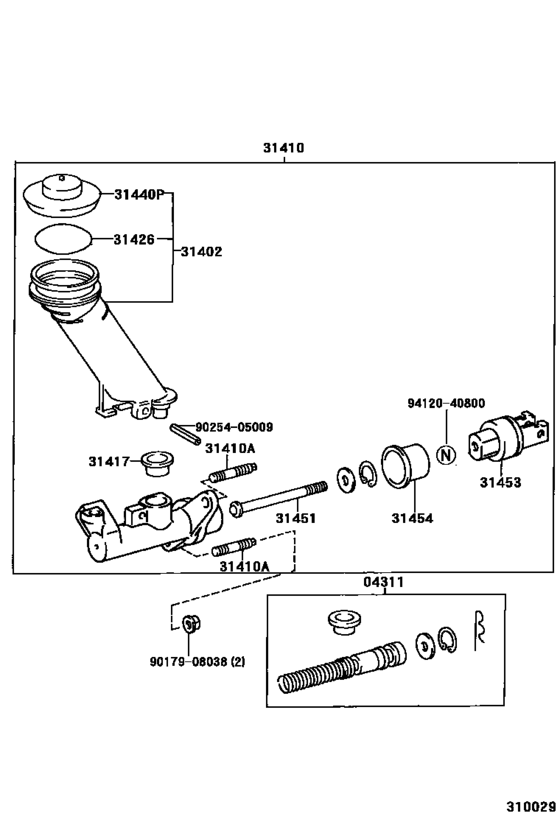

Clutch Master Cylinder ([06.1998 - 07.2001] (9806-0107)MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12110 Cylinder Kit, Clutch Master[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
04311-12110 |
from US $22.76 |
||
|
31402
|
31402
31402-33020 Reservoir Sub-Assy, Clutch Master CylinderCLUTCH MASTER CYLINDER [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
31402-33020 |
US $30.87 |
||
|
31410
|
31410
31410-33030 Cylinder Assy, Clutch MasterCLUTCH MASTER [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
31410-33030 |
from US $128.67 |
||
|
31410A
|
31410A
90116-08357
Bolt(For Clutch Master Cylinder Setting)
[06.1998 - 07.2001] MCV20,SXV20..MTM |
90116-08357 |
— | ||
|
31417
|
31417
31417-35010 Grommet[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
31417-35010 |
from US $1.96 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
47230-20040 |
from US $8.68 |
||
|
31451
|
31451
31451-36040 Rod, Clutch Master Cylinder Push[06.1998 - 07.2001] MCV20,SXV20..MTM |
31451-36040 |
US $5.87 |
||
|
31453
|
31453
31404-17010 Clevis, Clutch Master Cylinder Push Rod[06.1998 - 07.2001] MCV20,SXV20..MTM |
31404-17010 |
US $45.25 |
||
|
31454
|
31454
31454-16010 Boot, Clutch Master Cylinder[06.1998 - 07.2001] MCV20,SXV20..MTM |
31454-16010 |
US $5.02 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9025405009
|
9025405009
90254-05009 New Genuine Part |
90254-05009 |
US $1.43 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
