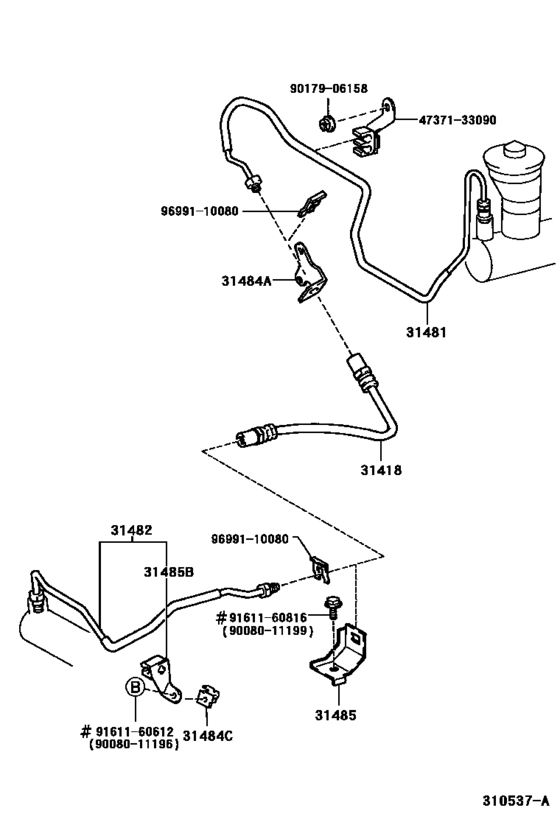

Clutch Pedal & Flexible Hose ([12.1998 - 07.2001] (9812-0107)SXV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01118
Hose, Clutch
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90931-01118 |
— | ||
|
31481
|
31481
31481-06030
Tube, Clutch Master Cylinder To Flexible Hose
[12.1998 - 01.1999] SXV20..MTM |
31481-06030 |
— | ||
| replacement | |||||
|
31481
|
31481
31481-06040
Tube, Clutch Master Cylinder To Flexible Hose
[12.1998 - 01.1999] SXV20..MTM |
31481-06040 |
— | ||
|
31481
|
31481
31481-06040
Tube, Clutch Master Cylinder To Flexible Hose
[06.1998 - 01.1999] MCV20..MTM; SXV20..MTM W(ABS) |
31481-06040 |
— | ||
|
31482
|
31482
31482-06030
Tube, Clutch Release Cylinder To Flexible Hose
[12.1998 - 01.1999] SXV20..MTM |
31482-06030 |
— | ||
|
31482
|
31482
31482-06080
Tube, Clutch Release Cylinder To Flexible Hose
[06.1998 - 01.1999] SXV20..MTM W(ABS) |
31482-06080 |
— | ||
|
31484A
|
31484A
31484-33010 Bracket, Flexible Hose, No.1(For Clutch)FLEXIBLE HOSE, NO.1(FOR CLUTCH) [12.1998 - 12.2002] ACV20,SXV20..MTM |
31484-33010 |
US $7.86 |
||
|
31484C
|
31484C
31484-32050
Bracket, Clutch Tube, No.1
[06.1998 - 07.2001] SXV20..MTM |
31484-32050 |
— | ||
|
31485
|
31485
31484-32101 Bracket, Flexible Hose, No.2(For Clutch)[06.1998 - 07.2001] MCV20,SXV20..MTM |
31484-32101 |
US $8.01 |
||
|
31485B
|
31485B
47386-33020 Bracket, Tube ClampTUBE CLAMP [06.1998 - 07.2001] SXV20..MTM |
47386-33020 |
US $5.39 |
||
|
4737133090
|
4737133090
47371-33090 Clamp, Brake Tube, No.6 |
47371-33090 |
US $8.15 |
||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9008011199
|
9008011199
90080-11199 Bolt (For Transmission Control Cable Bracket) |
90080-11199 |
US $0.69 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
