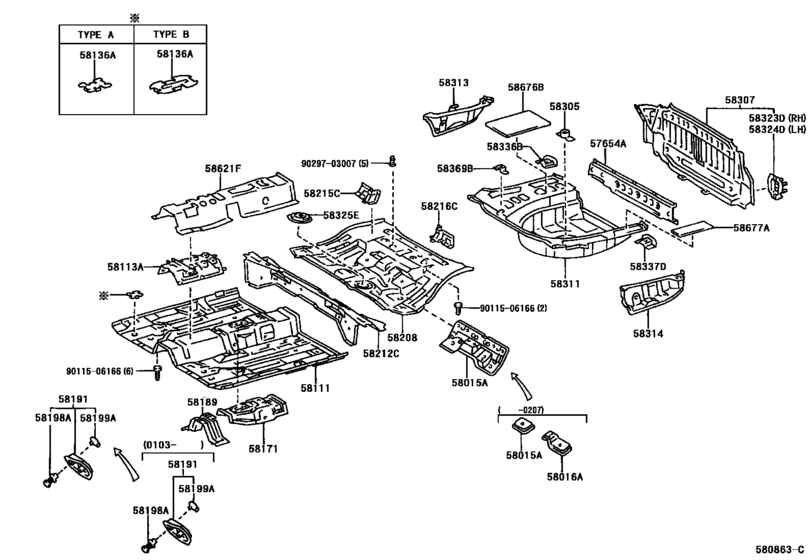

Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57654A
|
57654A
57654-06010
Member, Rear Floor Cross, No.3
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
57654-06010 |
— | ||
|
58015A
|
58015A
58015-06010
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58015-06010 |
— | ||
|
58016A
|
58016A
58016-06010
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58016-06010 |
— | ||
|
58111
|
58111
58111-06020
Pan, Front Floor
[06.1998 - 10.1998] MCV20,SXV20 |
58111-06020 |
— | ||
| replacement | |||||
|
58111
|
58111
58111-06021
Pan, Front Floor
[06.1998 - 10.1998] MCV20,SXV20 |
58111-06021 |
— | ||
|
58111
|
58111
58111-06021
Pan, Front Floor
[10.1998 - 07.2002] ACV20,MCV20,SXV20 |
58111-06021 |
— | ||
|
58113A
|
58113A
58013-06010
Panel, Front Floor, Center
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58013-06010 |
— | ||
|
58136A
|
58136A
58136-12020 Cover, Front Floor Service Hole[06.1998 - 07.2002] ACV20,MCV20,SXV20 TYPE A:REFER TO ILLUSTRATION |
58136-12020 |
US $2.91 |
||
|
58136A
|
58136A
58136-33010 Cover, Front Floor Hole[06.1998 - 07.2002] ACV20,MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-06010
Reinforcement, Parking Brake Base
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58107-06010 |
— | ||
|
58189
|
58189
58189-06010
Reinforcement, Exhaust Pipe Clamp Bracket
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58189-06010 |
— | ||
|
58191
|
58191
58192-06020
Footrest, Front Floor
[06.1998 - 03.2001] MCV20,SXV20 |
58192-06020 |
— | ||
|
58191
|
58191
58192-06040
Footrest, Front Floor
[03.2001 - 07.2002] ACV20,MCV20,SXV20 |
58192-06040 |
— | ||
|
58198A
|
58198A
58198-06010
Clip, Footrest
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58198-06010 |
— | ||
|
58199A
|
58199A
58199-06010
Clip, Footrest, No.2
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58199-06010 |
— | ||
|
58208
|
58208
58211-06070
Pan, Center Floor
[06.1998 - 08.1999] MCV20,SXV20 |
58211-06070 |
— | ||
| replacement | |||||
|
58208
|
58208
58211-06080
Pan, Center Floor
[06.1998 - 08.1999] MCV20,SXV20 |
58211-06080 |
— | ||
|
58208
|
58208
58211-06071
Pan, Center Floor
[08.1999 - 07.2001] MCV20,SXV20 |
58211-06071 |
— | ||
| replacement | |||||
|
58208
|
58208
58211-06080
Pan, Center Floor
[08.1999 - 07.2001] MCV20,SXV20 |
58211-06080 |
— | ||
|
58212C
|
58212C
58212-06020
Pan, Center Floor, Front
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58212-06020 |
— | ||
|
58215C
|
58215C
58215-06010
Reinforcement, Center Floor Panel, No.2 Rh
[06.1998 - 08.2000] MCV20,SXV20 |
58215-06010 |
— | ||
|
58216C
|
58216C
58216-06010
Reinforcement, Center Floor Panel, No.2 Lh
[06.1998 - 08.2000] MCV20,SXV20 |
58216-06010 |
— | ||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58351-33010 |
US $7.35 |
||
|
58307
|
58307
58307-06040
Panel Sub-Assy, Body Lower Back
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58307-06040 |
— | ||
|
58311
|
58311
58311-06040 Pan, Rear Floor[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58311-06040 |
US $503.78 |
||
|
58313
|
58313
58305-06040
Panel, Rear Floor Side, Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58305-06040 |
— | ||
|
58314
|
58314
58314-06040
Panel, Rear Floor Side, Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58314-06040 |
— | ||
|
58323D
|
58323D
58323-AA010
Reinforcement, Rear Bumper Arm Support
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58323-AA010 |
— | ||
|
58324D
|
58324D
58324-AA010 Reinforce, Rear Bumper Arm Support, Lh[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58324-AA010 |
US $39.17 |
||
|
58325E
|
58325E
58325-06020
Cover, Rear Floor Service Hole
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58325-06020 |
— | ||
|
58336B
|
58336B
58336-33010 Reinforcement, Rear Floor Pan[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58336-33010 |
US $25.19 |
||
|
58337D
|
58337D
58337-33020 Reinforcement, Rear Floor Pan, Lh[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58337-33020 |
US $24.02 |
||
|
58369B
|
58369B
58369-06010 Bracket, Fuel Tube, No.3[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58369-06010 |
US $3.35 |
||
|
58621F
|
58621F
58621-06010
Silencer, Center Console, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20..CP |
58621-06010 |
— | ||
|
58676B
|
58676B
58676-06010
Pad, Rear Floor Silencer, No.1 Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58676-06010 |
— | ||
|
58677A
|
58677A
58677-06010
Pad, Rear Floor Silencer, No.1 Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58677-06010 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.91 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
