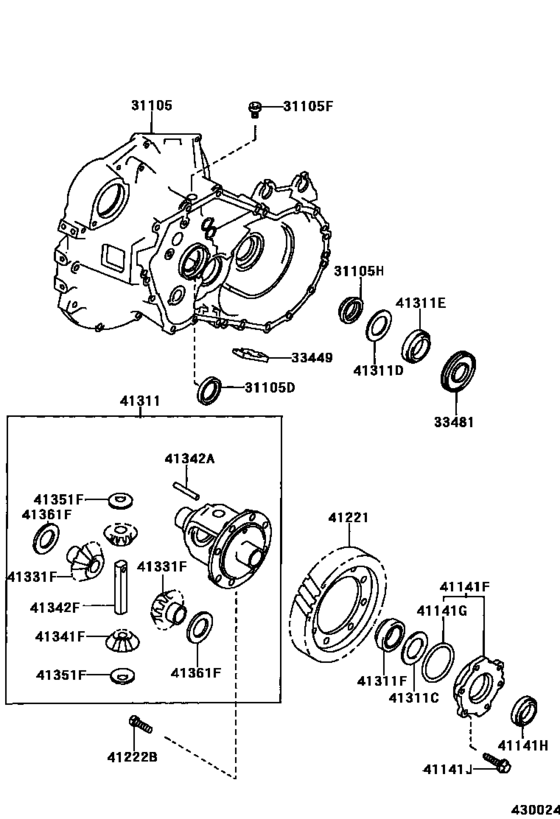

Front Axle Housing & Differential ([06.1998 - 07.2001] S51 (9806-0107)SXV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105
|
31105
31105-32080 Case Sub-Assy, Transaxle(Mtm)[06.1998 - 07.2001] SXV20..MTM |
31105-32080 |
US $486.30 |
||
|
31105D
|
31105D
90311-30006
Seal, Oil, No.1(For Front Transaxle Case)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90311-30006 |
— | ||
| replacement | |||||
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90311-30017 |
from US $5.20 |
||
|
31105F
|
31105F
90341-10065 Plug, Straight, No.1[06.1998 - 07.2001] SXV20..MTM |
90341-10065 |
US $3.94 |
||
|
31105H
|
31105H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[06.1998 - 02.2000] SXV20..MTM |
90311-35033 |
from US $7.17 |
||
|
31105H
|
31105H
90311-35049 Oil Seal, Front Drive Shaft, Rh[02.2000 - 07.2001] SXV20..MTM |
90311-35049 |
from US $5.20 |
||
|
33449
|
33449
33449-32020 Magnet, Transmission[06.1998 - 07.2001] SXV20..MTM |
33449-32020 |
US $11.65 |
||
|
33481
|
33481
33481-32070 Gear, Speedometer Drive (Mtm)[06.1998 - 07.2001] SXV20..MTM N=27 |
33481-32070 |
US $37.71 |
||
|
41141F
|
41141F
41101-32010 Retainer, Rear Differential Side Bearing[06.1998 - 07.2000] SXV20..MTM |
41101-32010 |
US $42.66 |
||
| replacements | |||||
|
41141F
|
41141F
41101-32011 Retainer, Front Differential Side Bearing[06.1998 - 07.2000] SXV20..MTM |
41101-32011 |
US $38.58 |
||
|
41141F
|
41141F
90311-35048 Oil Seal, Front Drive Shaft, Lh[06.1998 - 07.2000] SXV20..MTM |
90311-35048 |
from US $5.20 |
||
|
41141F
|
41141F
41101-32011 Retainer, Front Differential Side Bearing[07.2000 - 07.2001] SXV20..MTM |
41101-32011 |
US $38.58 |
||
|
41141G
|
41141G
90301-63004 Ring, O (For Transfer Extension Housing)[06.1998 - 07.2001] SXV20..MTM |
90301-63004 |
US $4.89 |
||
|
41141H
|
41141H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[06.1998 - 02.2000] SXV20..MTM |
90311-35033 |
from US $7.17 |
||
|
41141H
|
41141H
90311-35048 Oil Seal, Front Drive Shaft, Lh[02.2000 - 07.2001] SXV20..MTM |
90311-35048 |
from US $5.20 |
||
|
41141J
|
41141J
90105-08061 Bolt(For Rear Differential Side Bearing Retainer)[06.1998 - 07.2001] SXV20..MTM *8-1.25PX26.5-23.5 |
90105-08061 |
US $3.06 |
||
| replacement | |||||
|
41141J
|
41141J
91511-C0825 Bolt(For Front Differential Side Bearing Retainer)[06.1998 - 07.2001] SXV20..MTM *8-1.25PX26.5-23.5 |
91511-C0825 |
US $2.33 |
||
|
41221
|
41221
41221-32090 Gear, Front Differential Ring[06.1998 - 07.2001] SXV20 |
41221-32090 |
US $171.81 |
||
|
41222B
|
41222B
90105-11040 Bolt (For Rear Differential Ring Gear Set)[06.1998 - 07.2001] SXV20..MTM |
90105-11040 |
US $2.33 |
||
|
41311
|
41311
41301-32060 Case Sub-Assy, Rear Differential[06.1998 - 02.1999] SXV20..MTM |
41301-32060 |
US $569.30 |
||
| replacement | |||||
|
41311
|
41311
41301-32061 Case Sub-Assy, Rear Differential[06.1998 - 02.1999] SXV20..MTM |
41301-32061 |
US $445.89 |
||
|
41311
|
41311
41301-32061 Case Sub-Assy, Rear Differential[02.1999 - 07.2001] SXV20..MTM |
41301-32061 |
US $445.89 |
||
|
41311C
|
41311C
90564-45001 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=1.90,MARK 01 |
90564-45001 |
US $4.66 |
||
|
41311C
|
41311C
90564-45002 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=1.95,MARK 02 |
90564-45002 |
US $4.66 |
||
|
41311C
|
41311C
90564-45003 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.00,MARK 03 |
90564-45003 |
US $4.66 |
||
|
41311C
|
41311C
90564-45004 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.05,MARK 04 |
90564-45004 |
US $4.66 |
||
|
41311C
|
41311C
90564-45005 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.10,MARK 05 |
90564-45005 |
US $4.66 |
||
|
41311C
|
41311C
90564-45006 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.15,MARK 06 |
90564-45006 |
US $4.66 |
||
|
41311C
|
41311C
90564-45007 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.20,MARK 07 |
90564-45007 |
US $4.66 |
||
|
41311C
|
41311C
90564-45008 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.25,MARK 08 |
90564-45008 |
US $4.66 |
||
|
41311C
|
41311C
90564-45009 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.30,MARK 09 |
90564-45009 |
US $4.66 |
||
|
41311C
|
41311C
90564-45010 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.35,MARK 10 |
90564-45010 |
US $4.66 |
||
|
41311C
|
41311C
90564-45011 Shim(For Rear Differential Case)[06.1998 - 07.2001] SXV20..MTM T=2.40,MARK 11 |
90564-45011 |
US $3.93 |
||
|
41311C
|
41311C
90564-45012 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.45,MARK 12 |
90564-45012 |
US $4.66 |
||
|
41311C
|
41311C
90564-45013 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.50,MARK 13 |
90564-45013 |
US $4.66 |
||
|
41311C
|
41311C
90564-45014 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.55,MARK 14 |
90564-45014 |
US $4.66 |
||
|
41311C
|
41311C
90564-45015 Shim(For Rear Differential Case)[06.1998 - 07.2001] SXV20..MTM T=2.60,MARK 15 |
90564-45015 |
US $4.80 |
||
|
41311C
|
41311C
90564-45016 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.65,MARK 16 |
90564-45016 |
US $4.66 |
||
|
41311C
|
41311C
90564-45017 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.70,MARK 17 |
90564-45017 |
US $4.95 |
||
|
41311C
|
41311C
90564-45018 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.75,MARK 18 |
90564-45018 |
US $4.95 |
||
|
41311C
|
41311C
90564-45019 Shim (For Front Differential Case Rear)[06.1998 - 07.2001] SXV20..MTM T=2.80,MARK 19 |
90564-45019 |
US $4.95 |
||
|
41311D
|
41311D
90564-45011 Shim(For Rear Differential Case)[06.1998 - 07.2001] SXV20 T=2.40,MARK 11 |
90564-45011 |
US $3.93 |
||
|
41311E
|
41311E
90366-40016 Bearing(For Rear Differential Case)[06.1998 - 07.2001] SXV20 |
90366-40016 |
from US $25.33 |
||
|
41311F
|
41311F
90366-40064 Bearing(For Rear Differential Case)[06.1998 - 07.2001] SXV20..MTM |
90366-40064 |
US $34.86 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[06.1998 - 07.2001] SXV20..MTM |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-30011 Pinion, Rear Differential[06.1998 - 07.2001] SXV20..MTM |
41341-30011 |
from US $36.29 |
||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[06.1998 - 07.2001] SXV20..MTM |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[06.1998 - 12.2002] MCV20..ATM;ACV20,SXV20 |
90250-06058 |
from US $2.03 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[06.1998 - 07.2001] SXV20 |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[06.1998 - 07.2001] SXV20 |
41342-52060 |
US $15.03 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[06.1998 - 07.2001] SXV20 |
41351-32010 |
from US $1.29 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=1.00,MARK 02 |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=1.10,MARK 03 |
41361-22030 |
US $2.80 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=1.20,MARK 04 |
41361-22040 |
US $3.94 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=0.95,MARK 14 |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=1.05,MARK 15 |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[06.1998 - 07.2001] SXV20..MTM T=1.15,MARK 16 |
41361-22160 |
US $2.62 |
||
