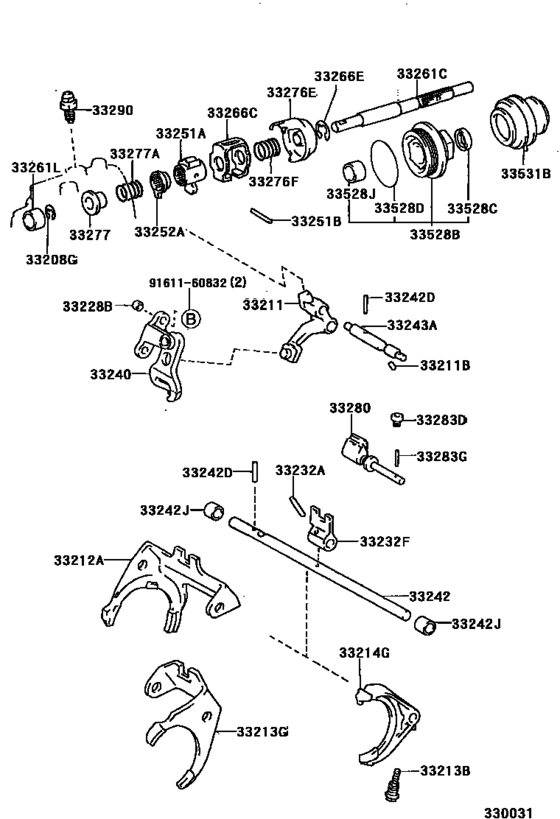

Gear Shift Fork & Lever Shaft (Mtm) ([06.1998 - 07.2001] S51 (9806-0107)SXV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33208G
|
33208G
90523-12003 Ring, E(For Reverse Restrict Pin)[06.1998 - 07.2001] SXV20..MTM |
90523-12003 |
US $0.96 |
||
|
33211
|
33211
33270-33011 Fork, Reverse Shift[06.1998 - 07.2001] SXV20..MTM |
33270-33011 |
US $63.34 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[06.1998 - 07.2001] SXV20..MTM |
90361-08002 |
US $3.06 |
||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[06.1998 - 07.2001] SXV20..MTM |
33210-32023 |
US $216.94 |
||
|
33213B
|
33213B
90105-06065 Bolt(For Shift Fork Set)[06.1998 - 07.2001] SXV20..MTM |
90105-06065 |
US $2.33 |
||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[06.1998 - 07.2001] SXV20..MTM |
33220-32024 |
— | ||
|
33214G
|
33214G
33214-33010 Fork, Gear Shift, No.3[06.1998 - 07.2001] SXV20..MTM |
33214-33010 |
US $58.53 |
||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[06.1998 - 07.2001] SXV20..MTM |
90253-11001 |
US $2.15 |
||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[06.1998 - 07.2001] SXV20..MTM |
90254-05001 |
from US $0.95 |
||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[06.1998 - 07.2001] SXV20..MTM |
33232-32012 |
US $42.37 |
||
|
33240
|
33240
33240-33010 Bracket Assy, Reverse Shift Arm[06.1998 - 07.2001] SXV20..MTM |
33240-33010 |
US $99.01 |
||
|
33242
|
33242
33242-33020 Shaft, Gear Shift Fork, No.1[06.1998 - 07.2001] SXV20..MTM |
33242-33020 |
US $56.93 |
||
|
33242D
|
33242D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[06.1998 - 07.2001] SXV20..MTM |
90254-05001 |
from US $0.95 |
||
|
33242J
|
33242J
90384-14005 Bush (For Shift Fork Shaft)[06.1998 - 07.2001] SXV20..MTM L=12.0 |
90384-14005 |
US $3.49 |
||
|
33242J
|
33242J
90389-14043 Bush (For Shift Fork Shaft)[06.1998 - 07.2001] SXV20..MTM L=10.1 |
90389-14043 |
US $3.49 |
||
|
33243A
|
33243A
33243-32011 Shaft, Gear Shift Fork, No.2[06.1998 - 07.2001] SXV20..MTM |
33243-32011 |
US $20.68 |
||
|
33251A
|
33251A
33251-33011
Lever, Shift, Inner No.1
[06.1998 - 07.2001] SXV20..MTM |
33251-33011 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[06.1998 - 06.2001] SXV20..MTM L=47.0 |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-33010 Lever, Shift, Inner No.2[06.1998 - 07.2001] SXV20..MTM |
33252-33010 |
US $8.88 |
||
|
33261C
|
33261C
33261-33010
Shaft, Shift & Select Lever
[06.1998 - 07.2001] SXV20..MTM |
33261-33010 |
— | ||
|
33261L
|
33261L
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[06.1998 - 07.2001] SXV20..MTM |
90384-15002 |
US $1.97 |
||
|
33266C
|
33266C
33266-33011 Plate, Shift Inter Lock[06.1998 - 07.2001] SXV20..MTM |
33266-33011 |
US $13.69 |
||
|
33266E
|
33266E
90523-14001 Ring, E(For Bleeder Clutch Release Tube)[06.1998 - 07.2001] SXV20..MTM |
90523-14001 |
US $1.75 |
||
|
33276E
|
33276E
33276-33011 Seat, Select Spring, No.1[06.1998 - 07.2001] SXV20..MTM |
33276-33011 |
US $19.36 |
||
|
33276F
|
33276F
90501-13036 Spring, Compression, No.1 (For Select Return)[06.1998 - 07.2001] SXV20..MTM |
90501-13036 |
US $1.89 |
||
|
33277
|
33277
33277-33010 Seat, Select Spring, No.2[06.1998 - 07.2001] SXV20..MTM |
33277-33010 |
US $7.13 |
||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[06.1998 - 07.2001] SXV20..MTM |
90501-16144 |
US $3.20 |
||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[06.1998 - 07.2001] SXV20..MTM |
33280-32012 |
US $44.84 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90341-10065 |
US $3.94 |
||
|
33283G
|
33283G
90254-04005 Pin, Slotted Spring (For Reverse Restrict Pin)[06.1998 - 07.2001] SXV20..MTM |
90254-04005 |
US $0.96 |
||
|
33290
|
33290
33290-33011
Ball Assy, Lock, No.1
[06.1998 - 07.2001] SXV20..MTM |
33290-33011 |
— | ||
| replacement | |||||
|
33290
|
33290
33290-52040 Ball Assy, Lock, No.1[06.1998 - 07.2001] SXV20..MTM |
33290-52040 |
US $16.60 |
||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[06.1998 - 07.2001] SXV20..MTM |
33506-33010 |
US $36.69 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90311-18013 |
from US $2.32 |
||
|
33528D
|
33528D
90301-65004
Ring, O (For Control Shaft Cover)
[06.1998 - 07.2001] SXV20..MTM |
90301-65004 |
— | ||
|
33528J
|
33528J
90384-18017 Bush, Bimetal Formed (For Shift & Select Lever Shaft)[06.1998 - 12.1999] SXV20..MTM |
90384-18017 |
US $3.32 |
||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[06.1998 - 07.2001] SXV20..MTM |
33531-32011 |
from US $10.48 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.06 |
||
