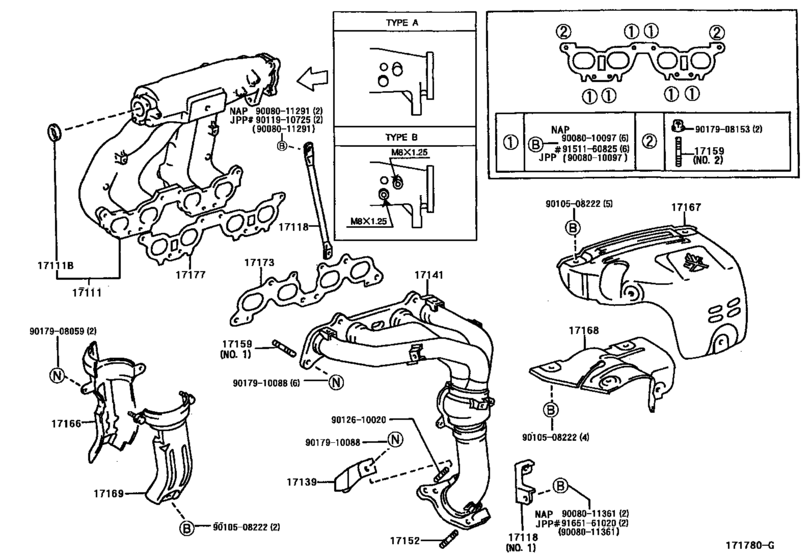

Manifold ([06.1998 - 08.2000] (9806-0008)5SFE..CP) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-03050
Manifold, Intake
[06.1998 - 02.1999] 5SFE..SXV20 (L) |
17101-03050 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-74311 Manifold, Intake[06.1998 - 02.1999] 5SFE..SXV20 (L) |
17101-74311 |
US $375.65 |
||
|
17111
|
17111
17101-03051
Manifold, Intake
[02.1999 - 07.2001] 5SFE..SXV20 TYPE A:REFER TO ILLUSTRATION |
17101-03051 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-74311 Manifold, Intake[02.1999 - 07.2001] 5SFE..SXV20 TYPE A:REFER TO ILLUSTRATION |
17101-74311 |
US $375.65 |
||
|
17111
|
17111
17101-74310 Manifold, Intake[06.1998 - 08.1998] 5SFE..SXV20 (J) |
17101-74310 |
US $375.65 |
||
| replacement | |||||
|
17111
|
17111
17101-74311 Manifold, Intake[06.1998 - 08.1998] 5SFE..SXV20 (J) |
17101-74311 |
US $375.65 |
||
|
17111
|
17111
17101-74311 Manifold, Intake[08.1998 - 07.2001] 5SFE..SXV20 TYPE B:REFER TO ILLUSTRATION |
17101-74311 |
US $375.65 |
||
|
17111B
|
17111B
96411-44000 Plug, Tight, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
96411-44000 |
from US $3.93 |
||
|
17118
|
17118
17118-03080
Stay, Manifold
[06.1998 - 07.2001] 5SFE..SXV20 NO.2,(L) |
17118-03080 |
— | ||
|
17118
|
17118
17118-74370 Stay, ManifoldMANIFOLD [06.1998 - 07.2001] 5SFE..SXV20 NO.1 |
17118-74370 |
US $21.40 |
||
|
17118
|
17118
17118-74390 Stay, ManifoldMANIFOLD [06.1998 - 07.2001] 5SFE..SXV20 NO.2,(J) |
17118-74390 |
US $40.91 |
||
|
17139
|
17139
17139-74190
Stay, Manifold, No.2
[06.1998 - 07.2001] 5SFE..SXV20 |
17139-74190 |
— | ||
|
17141
|
17141
17141-74200 Manifold, ExhaustEXHAUST [06.1998 - 08.2000] 5SFE..SXV20..CP |
17141-74200 |
US $340.70 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[06.1998 - 08.2000] 5SFE..SXV20 |
90116-10058 |
from US $2.26 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[06.1998 - 07.2001] 5SFE..SXV20 NO.1 |
90116-10063 |
from US $0.91 |
||
|
17159
|
17159
92122-60822 Stud[06.1998 - 07.2001] 5SFE..SXV20 NO.2 |
92122-60822 |
US $1.31 |
||
|
17166
|
17166
17166-74020
Insulator, Exhaust Manifold Heat,no.4
[06.1998 - 08.2000] 5SFE..SXV20..CP |
17166-74020 |
— | ||
|
17167
|
17167
17167-74231
Insulator, Exhaust Manifold Heat, No.1
[06.1998 - 08.2000] 5SFE..SXV20..CP..USA CALIFORNIA SPEC |
17167-74231 |
— | ||
|
17167
|
17167
17167-74240
Insulator, Exhaust Manifold Heat, No.1
[06.1998 - 08.2000] 5SFE..SXV20..CP |
17167-74240 |
— | ||
|
17168
|
17168
17168-74131
Insulator, Exhaust Manifold Heat, No.2
[06.1998 - 08.2000] 5SFE..SXV20..CP..USA CALIFORNIA SPEC |
17168-74131 |
— | ||
|
17168
|
17168
17168-74140 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [06.1998 - 08.2000] 5SFE..SXV20..CP |
17168-74140 |
US $24.59 |
||
|
17169
|
17169
17169-74030
Insulator, Exhaust Manifold Heat, No.3
[06.1998 - 08.2000] 5SFE..SXV20..CP..USA CALIFORNIA SPEC |
17169-74030 |
— | ||
|
17169
|
17169
17169-74040
Insulator, Exhaust Manifold Heat, No.3
[06.1998 - 08.2000] 5SFE..SXV20..CP |
17169-74040 |
— | ||
|
17173
|
17173
17173-74040 Gasket, Exhaust Manifold To Head[06.1998 - 08.2000] 5SFE..SXV20 |
17173-74040 |
from US $22.46 |
||
|
17177
|
17177
17177-03020
Gasket, Intake Manifold To Head, No.1
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
17177-03020 |
— | ||
|
17177
|
17177
17177-74070 Gasket, Intake Manifold To Head, No.1[06.1998 - 07.2001] 5SFE..SXV20 (J) |
17177-74070 |
from US $9.12 |
||
|
9008010097
|
9008010097
90080-10097
New Genuine Part
|
90080-10097 |
— | ||
|
9008011291
|
9008011291
90080-11291
New Genuine Part
|
90080-11291 |
— | ||
|
9008011361
|
9008011361
90080-11361
New Genuine Part
|
90080-11361 |
— | ||
|
9010508222
|
9010508222
90105-08222 BOLT WASHER BASED |
90105-08222 |
US $2.87 |
||
|
9011910725
|
9011910725
90119-10725 New Genuine Part |
90119-10725 |
US $1.49 |
||
|
9012610020
|
9012610020
90126-10020 New Genuine Part |
90126-10020 |
US $1.89 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.78 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.97 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $0.93 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
