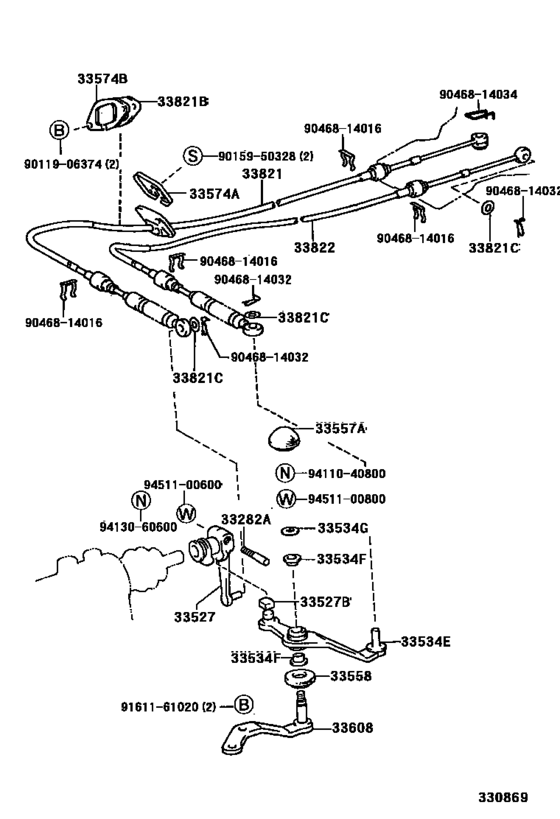

Shift Lever & Retainer ([06.1998 - 07.2001] (9806-0107)SXV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[06.1998 - 07.2001] SXV20..MTM |
33282-35010 |
from US $1.69 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[06.1998 - 07.2001] SXV20..MTM |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
33557-33010 |
from US $8.06 |
||
|
33534E
|
33534E
33534-33010
Crank, Selecting Bell, No.2
[06.1998 - 07.2001] SXV20..MTM |
33534-33010 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90386-12022 |
from US $2.11 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90201-08028 |
US $1.24 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
33557-32010 |
from US $5.02 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[06.1998 - 07.2001] SXV20..MTM |
33558-32010 |
— | ||
|
33574A
|
33574A
33574-32101 Retainer, Shift Cable Grommet, No.1SHIFT CABLE GROMMET, NO.1 [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
33574-32101 |
US $9.90 |
||
|
33574B
|
33574B
33574-33040 Retainer, Shift Cable Grommet, No.2SHIFT CABLE GROMMET, NO.2 [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
33574-33040 |
US $5.97 |
||
|
33608
|
33608
33608-33010 Support Sub-Assy, Selecting Bellcrank[06.1998 - 07.2001] SXV20..MTM |
33608-33010 |
US $18.08 |
||
|
33821
|
33821
33821-33090
Cable Transmission Control Shift (For Floor Shift)
[06.1998 - 07.2001] SXV20..MTM |
33821-33090 |
— | ||
|
33821B
|
33821B
90480-01602 Grommet, No.2 (For Transmission Control Cable)NO.2 (FOR TRANSMISSION CONTROL CABLE) [06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90480-01602 |
US $4.95 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.39 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM SHIFT LEVER SIDE |
90201-10042 |
US $1.61 |
||
|
33822
|
33822
33822-33050
Cable Transmission Control Select (For Floor Shift)
[06.1998 - 07.2001] SXV20..MTM |
33822-33050 |
— | ||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9015950328
|
9015950328
90159-50328 New Genuine Part |
90159-50328 |
US $1.51 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.14 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.61 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $1.40 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.76 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
