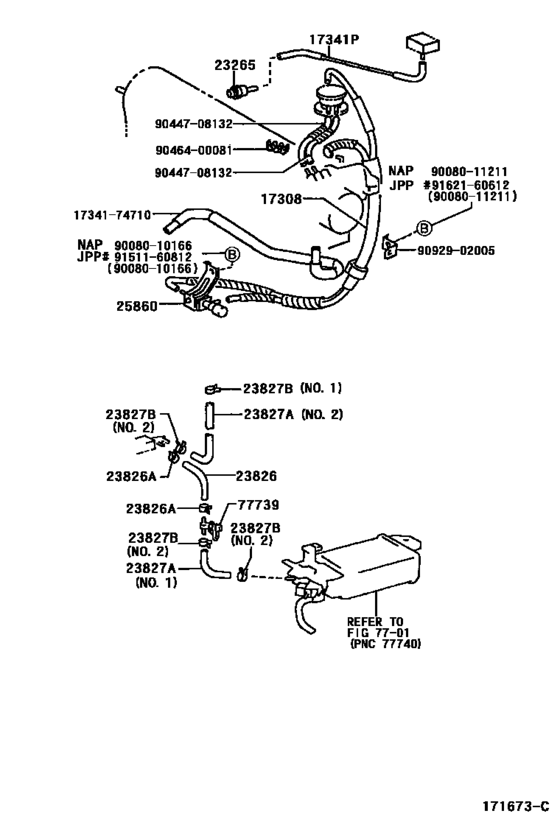

Vacuum Piping ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17308
|
17308
17308-74600 Hose Sub-Assy, Vacuum(For Idle-Up)VACUUM(FOR IDLE-UP) [06.1998 - 07.1998] 5SFE..SXV20 |
17308-74600 |
US $99.01 |
||
|
17308
|
17308
17308-74630 Hose Sub-Assy, Vacuum(For Idle-Up)[07.1998 - 07.2001] 5SFE..SXV20 |
17308-74630 |
US $109.20 |
||
|
17341P
|
17341P
17341-74810 Hose, Air[06.1998 - 07.2001] 5SFE..SXV20 |
17341-74810 |
US $7.16 |
||
|
23265
|
23265
90917-11037 Filter, Gas, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90917-11037 |
from US $19.51 |
||
|
23826
|
23826
23826-03010
Hose, Fuel Vapor Feed, No.1
[06.1998 - 07.2001] 5SFE..SXV20 |
23826-03010 |
— | ||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[06.1998 - 07.2001] 5SFE..SXV20 |
96132-51100 |
from US $1.39 |
||
|
23827A
|
23827A
23827-03020
Hose, Fuel Vapor Feed, No.2
[06.1998 - 07.2001] 5SFE..SXV20 NO.1 |
23827-03020 |
— | ||
|
23827A
|
23827A
23827-74020 Hose, Fuel Vapor Feed, No.2FUEL VAPOR FEED, NO.2 [06.1998 - 07.2001] 5SFE..SXV20 NO.2 |
23827-74020 |
US $33.05 |
||
|
23827B
|
23827B
96132-41000 Clip, No.1(For Idle-Up Hose)[06.1998 - 07.2001] 5SFE..SXV20 NO.1 |
96132-41000 |
from US $1.43 |
||
|
23827B
|
23827B
96132-51100 Clip (For Hose)[06.1998 - 07.2001] 5SFE..SXV20 NO.2 |
96132-51100 |
from US $1.39 |
||
|
25860
|
25860
25860-74050 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [06.1998 - 07.2001] 5SFE..SXV20 |
25860-74050 |
from US $70.70 |
||
|
77739
|
77739
77739-06010
Valve, Evap Service Port
[06.1998 - 07.2001] SXV20 |
77739-06010 |
— | ||
|
1734174710
|
1734174710
17341-74710
Hose, No.1(for Air Injection System)
|
17341-74710 |
— | ||
|
9008010166
|
9008010166
90080-10166
New Genuine Part
|
90080-10166 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9044708132
|
9044708132
90447-08132
Hose
|
90447-08132 |
— | ||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9092902005
|
9092902005
90929-02005 New Genuine Part |
90929-02005 |
US $2.33 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
