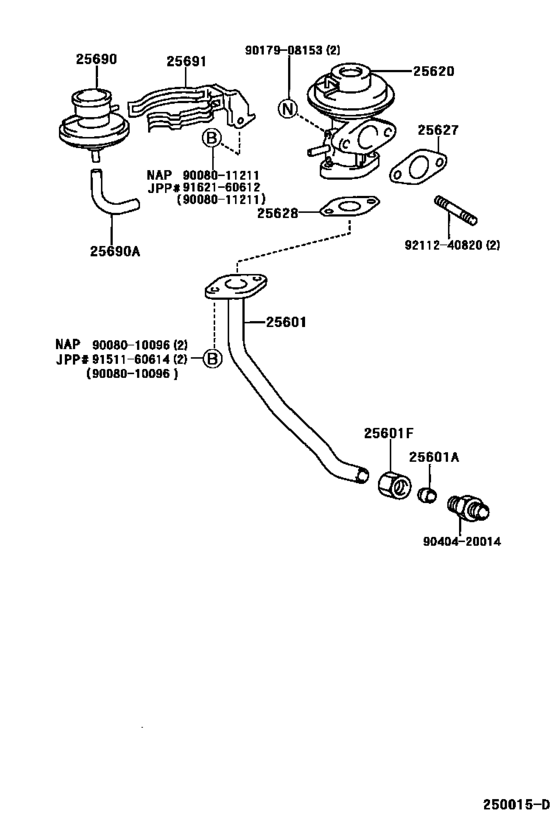

Exhaust Gas Recirculation System ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-03030 Pipe Sub-Assy, Egr, No.1[06.1998 - 07.2001] 5SFE..SXV20 (L) |
25611-03030 |
US $31.01 |
||
|
25601
|
25601
25611-74060 Pipe Sub-Assy, Egr, No.1[06.1998 - 07.2001] 5SFE..SXV20 (J) |
25611-74060 |
US $31.16 |
||
|
25601A
|
25601A
90410-12042 Sleeve, Ball, Egr Pipe, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90410-12042 |
from US $12.54 |
||
|
25601F
|
25601F
90402-20073 Nut, Union, Egr Pipe, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90402-20073 |
US $19.66 |
||
|
25620
|
25620
25620-74330 Valve Assy, Egr[06.1998 - 07.2001] 5SFE..SXV20..ATM |
25620-74330 |
from US $125.02 |
||
|
25627
|
25627
25627-74011 Gasket, Intake Manifold Hole Cover[06.1998 - 07.2001] 5SFE..SXV20 |
25627-74011 |
from US $1.18 |
||
|
25628
|
25628
25628-74010 Gasket, Egr Inlet[06.1998 - 07.2001] 5SFE..SXV20 |
25628-74010 |
from US $1.39 |
||
|
25690
|
25690
25870-74090 Modulator Assy, Egr Vacuum[06.1998 - 07.2001] 5SFE..SXV20 |
25870-74090 |
from US $44.76 |
||
|
25690A
|
25690A
25695-74040 Hose(For Egr Vacuum Modulator)[06.1998 - 07.2001] 5SFE..SXV20 |
25695-74040 |
US $44.84 |
||
|
25691
|
25691
25691-74090 Bracket, Egr Vacuum Modulator[06.1998 - 07.2001] 5SFE..SXV20 |
25691-74090 |
US $13.40 |
||
|
9008010096
|
9008010096
90080-10096
New Genuine Part
|
90080-10096 |
— | ||
| replacement | |||||
|
9008010096
|
9008010096
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9040420014
|
9040420014
90404-20014
Union, No.2
|
90404-20014 |
— | ||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
