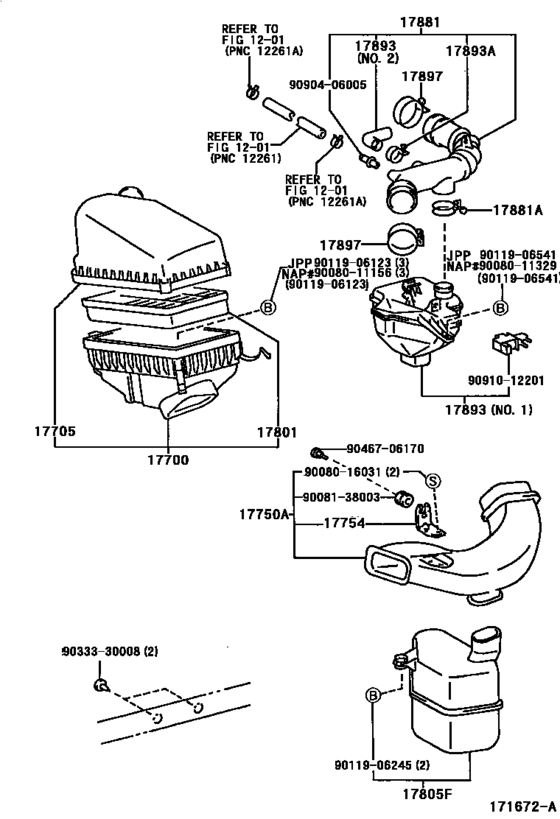

Air Cleaner ([06.1998 - 08.1999] (9806-9908)5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-03090 Cleaner Assy, AirAIR [08.1999 - 07.2001] 5SFE..SXV20 |
17700-03090 |
US $336.34 |
||
|
17700
|
17700
17700-03100 Cleaner Assy, AirAIR [06.1998 - 08.1999] 5SFE..SXV20 |
17700-03100 |
US $365.46 |
||
|
17705
|
17705
17705-03080
Cap Sub-Assy, Air Cleaner
[08.1999 - 07.2001] 5SFE..SXV20 |
17705-03080 |
— | ||
|
17705
|
17705
17705-03090
Cap Sub-Assy, Air Cleaner
[06.1998 - 08.1999] 5SFE..SXV20 |
17705-03090 |
— | ||
|
17750A
|
17750A
17750-03030
Inlet Assy, Air Cleaner
[06.1998 - 08.1999] 5SFE..SXV20 |
17750-03030 |
— | ||
|
17750A
|
17750A
17750-03070
Inlet Assy, Air Cleaner
[08.1999 - 07.2001] 5SFE..SXV20 |
17750-03070 |
— | ||
|
17754
|
17754
17754-03010
Stay, Air Cleaner Inlet
[06.1998 - 08.1999] 5SFE..SXV20 |
17754-03010 |
— | ||
|
17754
|
17754
17754-03030
Stay, Air Cleaner Inlet
[08.1999 - 07.2001] 5SFE..SXV20 |
17754-03030 |
— | ||
|
17801
|
17801
17801-03010
Element Sub-Assy, Air Cleaner Filter
[06.1998 - 07.2001] 5SFE..SXV20 |
17801-03010 |
— | ||
|
17805F
|
17805F
17805-03020
Resonator Sub-Assy, Intake Air
[06.1998 - 07.2001] 5SFE..SXV20 NO.2 |
17805-03020 |
— | ||
|
17805F
|
17805F
17805-03040
Resonator Sub-Assy, Intake Air
[08.1999 - 07.2001] 5SFE..SXV20 NO.1 |
17805-03040 |
— | ||
|
17881
|
17881
17881-03110
Hose, Air Cleaner, No.1
[08.1999 - 07.2001] 5SFE..SXV20 |
17881-03110 |
— | ||
|
17881
|
17881
17881-03121
Hose, Air Cleaner, No.1
[06.1998 - 08.1999] 5SFE..SXV20 |
17881-03121 |
— | ||
|
17881A
|
17881A
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1999 - 07.2001] 5SFE..SXV20 |
96111-10480 |
US $2.15 |
||
|
17881A
|
17881A
96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)[06.1998 - 08.1999] 5SFE..SXV20 |
96111-10570 |
US $2.87 |
||
|
17893
|
17893
17893-03060
Resonator, Intake Air
[06.1998 - 08.1999] 5SFE..SXV20 NO.1 |
17893-03060 |
— | ||
|
17893
|
17893
17893-03110 Resonator, Intake AirINTAKE AIR [08.1999 - 07.2001] 5SFE..SXV20 |
17893-03110 |
US $112.53 |
||
|
17893
|
17893
17893-74410 Resonator, Intake Air[06.1998 - 08.1999] 5SFE..SXV20 NO.2 |
17893-74410 |
US $16.89 |
||
|
17893A
|
17893A
96111-10380 Clamp Or Clip, Hose(For Radiator Inlet)[06.1998 - 08.1999] 5SFE..SXV20 |
96111-10380 |
US $2.51 |
||
|
17897
|
17897
96111-10690 Clamp, Hose[08.1999 - 07.2001] 5SFE..SXV20 NO.2 |
96111-10690 |
from US $2.87 |
||
|
17897
|
17897
96111-10850 Clamp, Hose(For Air Connector)[08.1999 - 07.2001] 5SFE..SXV20 NO.1 |
96111-10850 |
from US $3.99 |
||
|
9008011156
|
9008011156
90080-11156 New Genuine Part |
90080-11156 |
US $1.60 |
||
|
9008011329
|
9008011329
90080-11329
New Genuine Part
|
90080-11329 |
— | ||
|
9008016031
|
9008016031
90080-16031
New Genuine Part
|
90080-16031 |
— | ||
|
9008138003
|
9008138003
90081-38003
New Genuine Part
|
90081-38003 |
— | ||
|
9011906123
|
9011906123
90119-06123
New Genuine Part
|
90119-06123 |
— | ||
| replacement | |||||
|
9011906123
|
9011906123
90119-06465 BOLT |
90119-06465 |
from US $1.16 |
||
|
9011906245
|
9011906245
90119-06245 BOLT |
90119-06245 |
US $0.87 |
||
|
9011906541
|
9011906541
90119-06541 New Genuine Part |
90119-06541 |
US $2.87 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046706170
|
9046706170
90467-06170 New Genuine Part |
90467-06170 |
US $2.33 |
||
|
9090406005
|
9090406005
90904-06005 New Genuine Part |
90904-06005 |
US $2.62 |
||
|
9091012201
|
9091012201
90910-12201
New Genuine Part
|
90910-12201 |
— | ||
| replacement | |||||
|
9091012201
|
9091012201
90080-91203
New Genuine Part
|
90080-91203 |
— | ||
