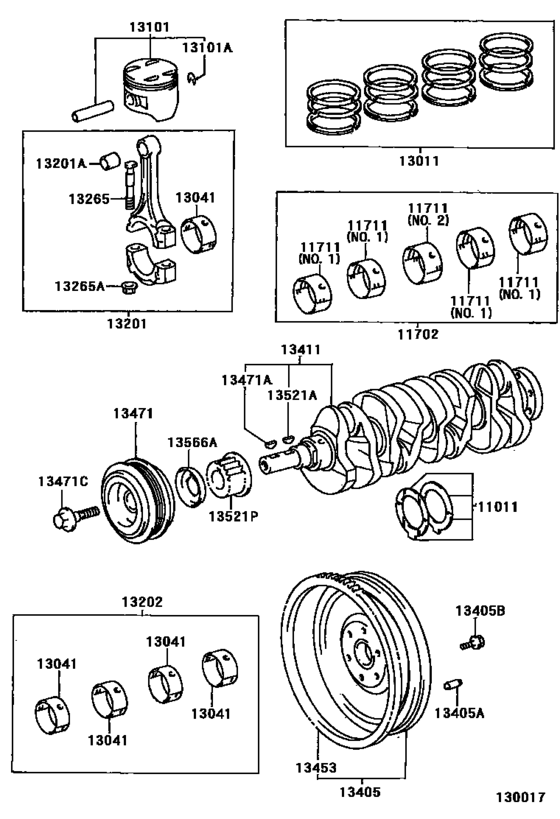

Crankshaft & Piston ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-74020
Washer Set, Crankshaft Thrust
[06.1998 - 07.2001] 5SFE..SXV20 STD |
11011-74020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-74031 Washer Set, Crankshaft Thrust[06.1998 - 07.2001] 5SFE..SXV20 STD |
11011-74031 |
from US $33.74 |
||
|
11702
|
11702
11704-63021
Bearing Set, Crankshaft (US 0.25)
[06.1998 - 07.2001] 5SFE..SXV20 U/S 0.25 |
11704-63021 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-63022 Bearing Set, Crankshaft (US 0.25)[06.1998 - 07.2001] 5SFE..SXV20 U/S 0.25 |
11704-63022 |
from US $115.37 |
||
|
11711
|
11711
11071-03030-01 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.2,(L) |
11071-03030-01 |
US $48.92 |
||
|
11711
|
11711
11071-03030-02 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.2,(L) |
11071-03030-02 |
US $48.92 |
||
|
11711
|
11711
11071-03030-03 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.2,(L) |
11071-03030-03 |
US $48.92 |
||
|
11711
|
11711
11071-03030-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.2,(L) |
11071-03030-04 |
US $48.92 |
||
|
11711
|
11711
11071-03030-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.2,(L) |
11071-03030-05 |
US $48.92 |
||
|
11711
|
11711
11071-63020-01
Bearing, Crankshaft
[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.2,(J) |
11071-63020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-01
Bearing, Crankshaft
[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.2,(J) |
11071-63021-01 |
— | ||
|
11711
|
11711
11071-63020-02
Bearing, Crankshaft
[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.2,(J) |
11071-63020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-02 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.2,(J) |
11071-63021-02 |
US $24.23 |
||
|
11711
|
11711
11071-63020-03
Bearing, Crankshaft
[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.2,(J) |
11071-63020-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-03 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.2,(J) |
11071-63021-03 |
US $53.14 |
||
|
11711
|
11711
11071-63020-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.2,(J) |
11071-63020-04 |
US $49.65 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.2,(J) |
11071-63021-04 |
US $53.14 |
||
|
11711
|
11711
11071-63020-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.2,(J) |
11071-63020-05 |
US $49.65 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.2,(J) |
11071-63021-05 |
US $53.14 |
||
|
11711
|
11711
11701-03030-01 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.1,(L) |
11701-03030-01 |
US $38.73 |
||
|
11711
|
11711
11701-03030-02 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.1,(L) |
11701-03030-02 |
US $38.73 |
||
|
11711
|
11711
11701-03030-03 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.1,(L) |
11701-03030-03 |
US $38.73 |
||
|
11711
|
11711
11701-03030-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.1,(L) |
11701-03030-04 |
US $38.73 |
||
|
11711
|
11711
11701-03030-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.1,(L) |
11701-03030-05 |
US $38.73 |
||
|
11711
|
11711
11701-63021-01 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.1,(J) |
11701-63021-01 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,NO.1,(J) |
11701-63022-01 |
from US $22.82 |
||
|
11711
|
11711
11701-63021-02 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.1,(J) |
11701-63021-02 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,NO.1,(J) |
11701-63022-02 |
from US $22.82 |
||
|
11711
|
11711
11701-63021-03 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.1,(J) |
11701-63021-03 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,NO.1,(J) |
11701-63022-03 |
from US $22.82 |
||
|
11711
|
11711
11701-63021-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.1,(J) |
11701-63021-04 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-04 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 4,NO.1,(J) |
11701-63022-04 |
US $49.80 |
||
|
11711
|
11711
11701-63021-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.1,(J) |
11701-63021-05 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-05 Bearing, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 MARK 5,NO.1,(J) |
11701-63022-05 |
US $49.80 |
||
|
13011
|
13011
13011-74370 Piston Ring Set, STD[06.1998 - 07.2001] 5SFE..SXV20 STD |
13011-74370 |
from US $141.32 |
||
|
13011
|
13011
13013-74370 Piston Ring Set (OS 0.50 mm)[06.1998 - 07.2001] 5SFE..SXV20 O/S 0.50 |
13013-74370 |
US $292.66 |
||
|
13041
|
13041
13041-03020-01
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,(L) |
13041-03020-01 |
— | ||
|
13041
|
13041
13041-03020-02
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,(L) |
13041-03020-02 |
— | ||
|
13041
|
13041
13041-03020-03
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,(L) |
13041-03020-03 |
— | ||
|
13041
|
13041
13041-74040-01
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,(J) |
13041-74040-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-74041-01 Bearing, Connecting Rod[06.1998 - 07.2001] 5SFE..SXV20 MARK 1,(J) |
13041-74041-01 |
from US $13.15 |
||
|
13041
|
13041
13041-74040-02
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,(J) |
13041-74040-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-74041-02 Bearing, Connecting Rod[06.1998 - 07.2001] 5SFE..SXV20 MARK 2,(J) |
13041-74041-02 |
from US $12.79 |
||
|
13041
|
13041
13041-74040-03
Bearing, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,(J) |
13041-74040-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-74041-03 Bearing, Connecting Rod[06.1998 - 07.2001] 5SFE..SXV20 MARK 3,(J) |
13041-74041-03 |
from US $13.36 |
||
|
13101
|
13101
13101-03060-01
Piston Sub-Assy, W/pin
[06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 1,(L) |
13101-03060-01 |
— | ||
|
13101
|
13101
13101-03060-02
Piston Sub-Assy, W/pin
[06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 2,(L) |
13101-03060-02 |
— | ||
|
13101
|
13101
13101-03060-03
Piston Sub-Assy, W/pin
[06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 3,(L) |
13101-03060-03 |
— | ||
|
13101
|
13101
13101-74220-01 Piston Sub-Assy, W/pinW/PIN [06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 1,(J) |
13101-74220-01 |
US $99.01 |
||
|
13101
|
13101
13101-74220-02 Piston Sub-Assy, W/pinW/PIN [06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 2,(J) |
13101-74220-02 |
US $99.01 |
||
|
13101
|
13101
13101-74220-03 Piston Sub-Assy, W/pinW/PIN [06.1998 - 07.2001] 5SFE..SXV20 STD,MARK 3,(J) |
13101-74220-03 |
US $99.01 |
||
|
13101
|
13101
13103-74220 Piston Sub-Assy, W/pinW/PIN [06.1998 - 07.2001] 5SFE..SXV20 O/S 0.50 |
13103-74220 |
US $122.30 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[06.1998 - 07.2001] 5SFE..SXV20 |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[06.1998 - 07.2001] 5SFE..SXV20 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-09041
Rod Sub-Assy, Connecting
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
13201-09041 |
— | ||
|
13201
|
13201
13201-79215 Rod Sub-Assy, Connecting[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13201-79215 |
US $227.14 |
||
|
13201A
|
13201A
90999-73112 Bush(For Connecting Rod Small End)[06.1998 - 07.2001] 5SFE..SXV20 |
90999-73112 |
US $3.32 |
||
|
13202
|
13202
13204-74040
Bearing Set, Connecting Rod (US 0.25)
[06.1998 - 07.2001] 5SFE..SXV20 U/S 0.25 |
13204-74040 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-74041 Bearing Set, Connecting Rod (US 0.25)[06.1998 - 07.2001] 5SFE..SXV20 U/S 0.25 |
13204-74041 |
from US $62.17 |
||
|
13265
|
13265
13265-62030
Bolt, Connecting Rod
[06.1998 - 07.2001] 5SFE..SXV20 |
13265-62030 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-74030 Bolt, Connecting Rod[06.1998 - 07.2001] 5SFE..SXV20 |
13265-74030 |
from US $3.55 |
||
|
13265A
|
13265A
90179-08118 Nut, Hexagon(For Connecting Rod Bolt)[06.1998 - 07.2001] 5SFE..SXV20 |
90179-08118 |
from US $1.22 |
||
|
13411
|
13411
13401-03011 Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 (L) |
13401-03011 |
US $997.36 |
||
|
13411
|
13411
13401-74011 Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13401-74011 |
US $1,354.59 |
||
|
13471
|
13471
13408-03020 Pulley, CrankshaftCRANKSHAFT [06.1998 - 07.2001] 5SFE..SXV20 (L) |
13408-03020 |
US $266.45 |
||
| replacement | |||||
|
13471
|
13471
13408-74031 Pulley, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 (L) |
13408-74031 |
from US $181.13 |
||
|
13471
|
13471
13408-74041
Pulley, Crankshaft
[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13408-74041 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-74031 Pulley, Crankshaft[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13408-74031 |
from US $181.13 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[06.1998 - 07.2001] 5SFE..SXV20 |
90280-05005 |
from US $0.91 |
||
|
13471C
|
13471C
90119-14015 Bolt(For Crankshaft Pulley Set)[06.1998 - 07.2001] 5SFE..SXV20 |
90119-14015 |
from US $5.36 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[06.1998 - 07.2001] 5SFE..SXV20 |
90280-05005 |
from US $0.91 |
||
|
13521P
|
13521P
13521-03030
Pulley, Crankshaft Timing
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
13521-03030 |
— | ||
|
13521P
|
13521P
13521-74040 Pulley, Crankshaft Timing[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13521-74040 |
from US $23.33 |
||
|
13566A
|
13566A
13567-74010 Guide, Timing Belt[06.1998 - 07.2001] 5SFE..SXV20 |
13567-74010 |
from US $6.35 |
||
