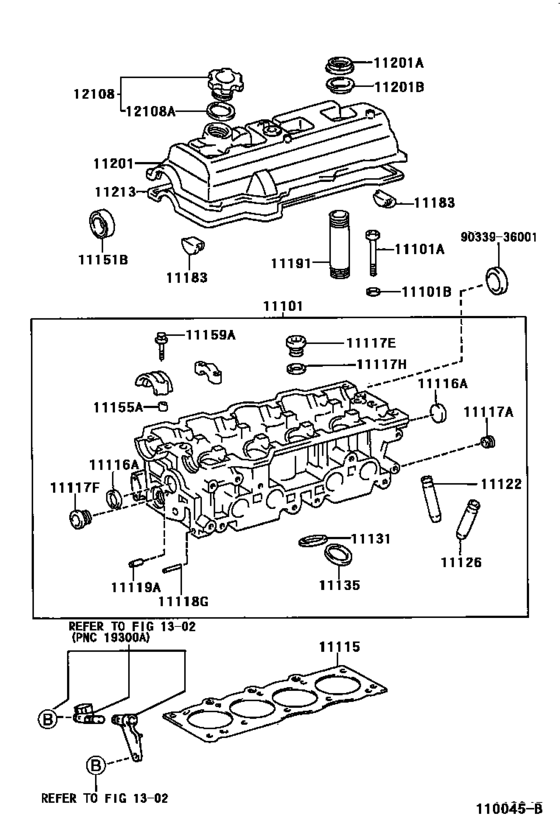

Cylinder Head ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09050 Head Sub-Assy, Cylinder[06.1998 - 07.2001] 5SFE..SXV20 (L) |
11101-09050 |
US $1,994.72 |
||
|
11101
|
11101
11101-79156 Head Sub-Assy, Cylinder[06.1998 - 07.2001] 5SFE..SXV20 (J) |
11101-79156 |
from US $1,369.96 |
||
|
11101A
|
11101A
90109-10132 Bolt(For Cylinder Head Set)[06.1998 - 07.2001] 5SFE..SXV20 |
90109-10132 |
from US $4.03 |
||
|
11101B
|
11101B
90201-11026 Washer, Plate(For Cylinder Head Set)[06.1998 - 07.2001] 5SFE..SXV20 |
90201-11026 |
from US $1.62 |
||
|
11115
|
11115
11115-74120 Gasket, Cylinder Head[06.1998 - 07.2001] 5SFE..SXV20 |
11115-74120 |
from US $63.08 |
||
|
11116A
|
11116A
96411-42800 Plug, Tight, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
96411-42800 |
from US $2.81 |
||
|
11117A
|
11117A
90344-53011 Plug, W/head Taper Screw, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90344-53011 |
US $4.30 |
||
|
11117E
|
11117E
90341-24090 Plug, W/head Taper Screw, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90341-24090 |
US $4.89 |
||
|
11117F
|
11117F
90341-32031 Plug, W/head Straight Screw, No.2[06.1998 - 07.2001] 5SFE..SXV20 |
90341-32031 |
US $7.16 |
||
|
11117H
|
11117H
90430-24246 Gasket(For Cylinder Head Screw Plug)[06.1998 - 07.2001] 5SFE..SXV20 |
90430-24246 |
from US $1.12 |
||
|
11118G
|
11118G
90249-06084 Pin, Slotted Spring, No.1[06.1998 - 07.2001] 5SFE..SXV20 |
90249-06084 |
US $2.18 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[06.1998 - 07.2001] 5SFE..SXV20 L=14,OD=6 |
90250-06003 |
US $1.61 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[06.1998 - 07.2001] 5SFE..SXV20 STD |
11122-74030 |
US $9.86 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[06.1998 - 07.2001] 5SFE..SXV20 O/S 0.05 |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010 Bush, Intake Valve Guide[06.1998 - 07.2001] 5SFE..SXV20 STD |
11122-16010 |
US $10.73 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[06.1998 - 07.2001] 5SFE..SXV20 O/S 0.05 |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-74020 Seat, Intake Valve[06.1998 - 07.2001] 5SFE..SXV20 STD |
11131-74020 |
US $38.88 |
||
|
11131
|
11131
11132-74020 Seat, Intake Valve[06.1998 - 07.2001] 5SFE..SXV20 O/S 0.03 |
11132-74020 |
US $17.76 |
||
|
11135
|
11135
11135-74030 Seat, Exhaust Valve[06.1998 - 07.2001] 5SFE..SXV20 STD |
11135-74030 |
US $15.29 |
||
|
11135
|
11135
11136-74030 Seat, Exhaust Valve[06.1998 - 07.2001] 5SFE..SXV20 O/S 0.03 |
11136-74030 |
US $9.46 |
||
|
11151B
|
11151B
90080-31023
Seal, Oil(For Camshaft Setting)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-31023 |
— | ||
|
11151B
|
11151B
90311-38060
Seal, Oil(For Camshaft Setting)
[06.1998 - 07.2001] 5SFE..SXV20 (J),ARS |
90311-38060 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-38067 Seal, Oil(For Camshaft Setting)[06.1998 - 07.2001] 5SFE..SXV20 (J),ARS |
90311-38067 |
from US $7.17 |
||
|
11151B
|
11151B
90311-38067 Seal, Oil(For Camshaft Setting)[06.1998 - 07.2001] 5SFE..SXV20 (J),NOK |
90311-38067 |
from US $7.17 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[06.1998 - 07.2001] 5SFE..SXV20 |
90253-10004 |
US $2.15 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[06.1998 - 07.2001] 5SFE..SXV20 |
90119-07009 |
from US $0.82 |
||
|
11183
|
11183
11183-74010 Plug, Semicircular[06.1998 - 07.2001] 5SFE..SXV20 |
11183-74010 |
from US $6.56 |
||
|
11191
|
11191
11191-74030 Tube, Spark Plug[06.1998 - 07.2001] 5SFE..SXV20 |
11191-74030 |
from US $13.72 |
||
|
11201
|
11201
11201-03040 Cover Sub-Assy, Cylinder Head[06.1998 - 03.1999] 5SFE..SXV20 (L) |
11201-03040 |
US $266.45 |
||
| replacement | |||||
|
11201
|
11201
11201-03041
Cover Sub-Assy, Cylinder Head
[06.1998 - 03.1999] 5SFE..SXV20 (L) |
11201-03041 |
— | ||
|
11201
|
11201
11201-03041
Cover Sub-Assy, Cylinder Head
[03.1999 - 07.2001] 5SFE..SXV20 (L) |
11201-03041 |
— | ||
|
11201
|
11201
11201-74070 Cover Sub-Assy, Cylinder Head[06.1998 - 01.1999] 5SFE..SXV20 (J) |
11201-74070 |
US $301.39 |
||
| replacement | |||||
|
11201
|
11201
11201-79045
Cover Sub-Assy, Cylinder Head
[06.1998 - 01.1999] 5SFE..SXV20 (J) |
11201-79045 |
— | ||
|
11201
|
11201
11201-74071 Cover Sub-Assy, Cylinder Head[01.1999 - 07.2001] 5SFE..SXV20 (J) |
11201-74071 |
US $301.39 |
||
| replacement | |||||
|
11201
|
11201
11201-79045
Cover Sub-Assy, Cylinder Head
[01.1999 - 07.2001] 5SFE..SXV20 (J) |
11201-79045 |
— | ||
|
11201A
|
11201A
90179-28004 Nut, Cap(For Cylinder Head Cover)[06.1998 - 07.2001] 5SFE..SXV20 |
90179-28004 |
from US $1.25 |
||
|
11201B
|
11201B
90480-30025 Washer, Seal(For Cylinder Head Cover)[06.1998 - 07.2001] 5SFE..SXV20 |
90480-30025 |
from US $3.74 |
||
|
11213
|
11213
11213-74020 Gasket, Cylinder Head Cover[06.1998 - 07.2001] 5SFE..SXV20 |
11213-74020 |
from US $15.05 |
||
|
12108
|
12108
12180-22010
Cap Sub-Assy, Oil Filler
[06.1998 - 07.2001] 5SFE..SXV20 |
12180-22010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-22011 Cap Sub-Assy, Oil FillerOIL FILLER [06.1998 - 07.2001] 5SFE..SXV20 |
12180-22011 |
from US $14.16 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[06.1998 - 07.2001] 5SFE..SXV20 |
90430-37140 |
from US $1.14 |
||
|
9033936001
|
9033936001
90339-36001 PLUG |
90339-36001 |
from US $2.58 |
||
