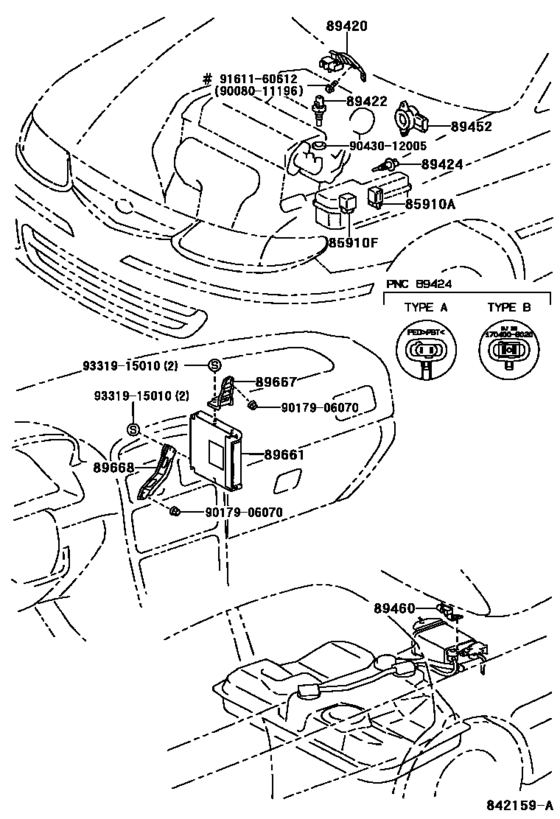

Electronic Fuel Injection System ([06.1998 - 07.2001] (9806-0107)SXV20) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90084-98031 Relay, Ignition, No.1[06.1998 - 08.2000] MCV20,SXV20 |
90084-98031 |
US $63.48 |
||
|
85910F
|
85910F
90084-98031 Relay, Ignition, No.1[06.1998 - 08.2000] MCV20,SXV20 |
90084-98031 |
US $63.48 |
||
|
89420
|
89420
89420-06040 Sensor Assy, Vacuum[06.1998 - 08.2000] SXV20..CND;SXV20..CVT;SXV20..MTM; SXV20..CP..ATM..USA CALIFORNIA SPEC |
89420-06040 |
from US $122.30 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[06.1998 - 08.1999] SXV20 |
89422-20010 |
from US $40.66 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1999 - 08.2000] MCV20,SXV20 |
89422-35010 |
from US $43.53 |
||
|
89424
|
89424
89424-06010 Sensor, Inlet Air Temperature (For E.f.i.)[06.1998 - 08.2000] SXV20 TYPE A:REFER TO ILLUSTRATION |
89424-06010 |
US $80.08 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[06.1998 - 08.2000] SXV20 TYPE B:REFER TO ILLUSTRATION |
89424-12010 |
from US $56.24 |
||
|
89452
|
89452
89452-06020 Sensor, Throttle Position (For E.f.i.)[06.1998 - 08.2000] MCV20,SXV20 CTS |
89452-06020 |
US $66.98 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[06.1998 - 05.2000] SXV20 AISAN |
89452-33030 |
from US $45.19 |
||
|
89460
|
89460
89460-06010
Sensor Assy, Vapor Pressure
[08.1999 - 07.2001] MCV20,SXV20..CP PART NUMBER LABEL=89460-06010 |
89460-06010 |
— | ||
|
89460
|
89460
89460-06040
Sensor Assy, Vapor Pressure
[06.1998 - 08.1999] MCV20,SXV20 PART NUMBER LABEL=89460-06040 |
89460-06040 |
— | ||
| replacement | |||||
|
89460
|
89460
89460-06050
Sensor Assy, Vapor Pressure
[06.1998 - 08.1999] MCV20,SXV20 PART NUMBER LABEL=89460-06040 |
89460-06050 |
— | ||
|
89460
|
89460
89460-06050
Sensor Assy, Vapor Pressure
[06.1998 - 08.1999] MCV20,SXV20 PART NUMBER LABEL=89460-06050 |
89460-06050 |
— | ||
|
89460
|
89460
89460-07030 Sensor Assy, Vapor PressureVAPOR PRESSURE [08.1999 - 08.2000] MCV20,SXV20 PART NUMBER LABEL=89460-07030 |
89460-07030 |
US $221.37 |
||
|
89661
|
89661
89661-06670
Computer, Engine Control
[06.1998 - 11.1998] SXV20..ATM |
89661-06670 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06671
Computer, Engine Control
[06.1998 - 11.1998] SXV20..ATM |
89661-06671 |
— | ||
|
89661
|
89661
89661-06671
Computer, Engine Control
[11.1998 - 08.1999] SXV20..ATM |
89661-06671 |
— | ||
|
89661
|
89661
89661-06710
Computer, Engine Control
[06.1998 - 11.1998] SXV20..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89661-06710 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06711
Computer, Engine Control
[06.1998 - 11.1998] SXV20..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89661-06711 |
— | ||
|
89661
|
89661
89661-06711
Computer, Engine Control
[11.1998 - 08.1999] SXV20..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89661-06711 |
— | ||
|
89661
|
89661
89666-06020
Computer, Engine Control
[08.1999 - 01.2000] SXV20..ATM |
89666-06020 |
— | ||
| replacement | |||||
|
89661
|
89661
89666-06021
Computer, Engine Control
[08.1999 - 01.2000] SXV20..ATM |
89666-06021 |
— | ||
|
89661
|
89661
89666-06021
Computer, Engine Control
[01.2000 - 08.2000] SXV20..CP..ATM |
89666-06021 |
— | ||
|
89661
|
89661
89666-06060
Computer, Engine Control
[08.1999 - 05.2000] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89666-06060 |
— | ||
| replacement | |||||
|
89661
|
89661
89666-06061
Computer, Engine Control
[08.1999 - 05.2000] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89666-06061 |
— | ||
|
89661
|
89661
89666-06061
Computer, Engine Control
[05.2000 - 08.2000] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89666-06061 |
— | ||
|
89661
|
89661
89666-06120
Computer, Engine Control
[08.2000 - 07.2001] SXV20..CP..ATM |
89666-06120 |
— | ||
| replacement | |||||
|
89661
|
89661
89666-06121
Computer, Engine Control
[08.2000 - 07.2001] SXV20..CP..ATM |
89666-06121 |
— | ||
|
89661
|
89661
89666-06130 Computer, Engine Control[08.2000 - 07.2001] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89666-06130 |
US $1,747.20 |
||
| replacement | |||||
|
89661
|
89661
89666-06131
Computer, Engine Control
[08.2000 - 07.2001] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
89666-06131 |
— | ||
|
89667
|
89667
89667-06050
Bracket, Engine Control Computer
[06.1998 - 08.1999] MCV20,SXV20 |
89667-06050 |
— | ||
|
89667
|
89667
89667-0W030
Bracket, Engine Control Computer
[08.1999 - 08.2000] SXV20 W(ENGINE IMMOBILIZER SYSTEM) |
89667-0W030 |
— | ||
|
89668
|
89668
89668-06050
Bracket, Engine Control Computer, No.2
[06.1998 - 08.1999] MCV20,SXV20 |
89668-06050 |
— | ||
|
89668
|
89668
89668-0W030
Bracket, Engine Control Computer, No.2
[08.1999 - 08.2000] SXV20 W(ENGINE IMMOBILIZER SYSTEM) |
89668-0W030 |
— | ||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
