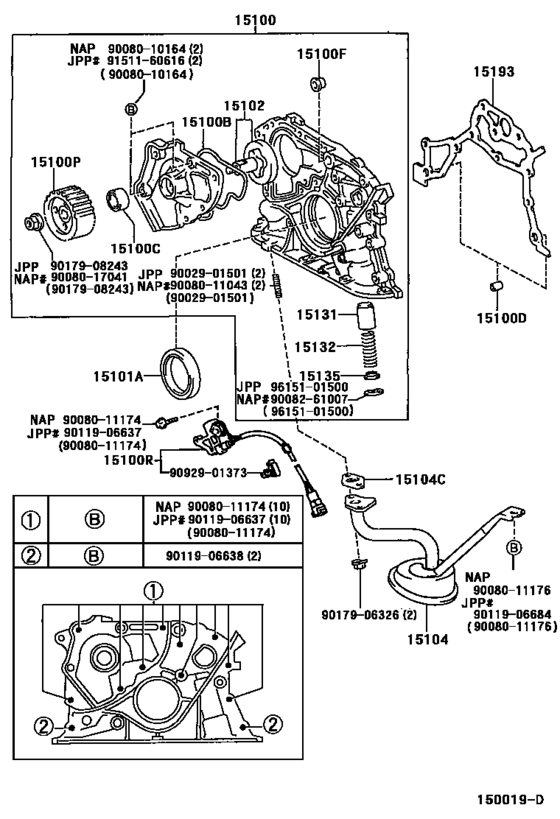

Engine Oil Pump ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-03030
Pump Assy, Oil
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15100-03030 |
— | ||
|
15100
|
15100
15100-74030 Pump Assy, Oil[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15100-74030 |
from US $96.12 |
||
|
15100B
|
15100B
15188-03011
Ring, O(For Oil Pump)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15188-03011 |
— | ||
| replacement | |||||
|
15100B
|
15100B
15188-74050 Ring, O(For Oil Pump)[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15188-74050 |
from US $5.83 |
||
|
15100B
|
15100B
15188-74050 Ring, O(For Oil Pump)[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15188-74050 |
from US $5.83 |
||
|
15100C
|
15100C
15165-74020 Seal(For Oil Pump)[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15165-74020 |
from US $7.22 |
||
|
15100C
|
15100C
90080-31003
Seal(For Oil Pump)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-31003 |
— | ||
|
15100D
|
15100D
90253-09001 Pin, Ring W/head[06.1998 - 07.2001] 5SFE..SXV20 |
90253-09001 |
from US $1.05 |
||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[06.1998 - 07.2001] 5SFE..SXV20 (J) |
90029-38302 |
US $2.62 |
||
|
15100F
|
15100F
90080-38016
Bush (For Oil Pump)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-38016 |
— | ||
| replacement | |||||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90029-38302 |
US $2.62 |
||
|
15100P
|
15100P
13524-03020
Pulley, Oil Pump Drive Shaft
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
13524-03020 |
— | ||
|
15100P
|
15100P
13524-74020 Pulley, Oil Pump Drive Shaft[06.1998 - 07.2001] 5SFE..SXV20 (J) |
13524-74020 |
from US $19.66 |
||
|
15100R
|
15100R
90080-19011
Sensor, Crank Position
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-19011 |
— | ||
|
15100R
|
15100R
90919-05017 Sensor, Crank Position[06.1998 - 07.2001] 5SFE..SXV20 (J) |
90919-05017 |
from US $108.33 |
||
|
15101A
|
15101A
90080-31022
Seal(For Crankshaft)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-31022 |
— | ||
|
15101A
|
15101A
90311-42034 Seal(For Crankshaft)[06.1998 - 07.2001] 5SFE..SXV20 (J),KOYO |
90311-42034 |
US $9.90 |
||
| replacement | |||||
|
15101A
|
15101A
90311-42035 Oil Seal (For Crankshaft, Front)[06.1998 - 07.2001] 5SFE..SXV20 (J),KOYO |
90311-42035 |
from US $5.66 |
||
|
15101A
|
15101A
90311-42035 Oil Seal (For Crankshaft, Front)[06.1998 - 07.2001] 5SFE..SXV20 (J),NOK |
90311-42035 |
from US $5.66 |
||
|
15102
|
15102
15102-03020
Rotor Set, Oil Pump
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15102-03020 |
— | ||
|
15102
|
15102
15102-74020 Rotor Set, Oil Pump[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15102-74020 |
from US $28.75 |
||
|
15104
|
15104
15104-03031 Strainer Sub-Assy, Oil[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15104-03031 |
US $44.84 |
||
|
15104
|
15104
15104-74110 Strainer Sub-Assy, Oil[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15104-74110 |
US $67.85 |
||
|
15104C
|
15104C
15149-03020
Gasket(For Oil Strainer)
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15149-03020 |
— | ||
|
15104C
|
15104C
15149-74030 Gasket(For Oil Strainer)[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15149-74030 |
from US $2.58 |
||
|
15131
|
15131
15131-03021
Valve, Oil Pump Relief
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15131-03021 |
— | ||
| replacement | |||||
|
15131
|
15131
15131-63011 Valve, Oil Pump Relief[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15131-63011 |
US $7.72 |
||
|
15131
|
15131
15131-63011 Valve, Oil Pump Relief[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15131-63011 |
US $7.72 |
||
|
15132
|
15132
15132-03020
Spring, Oil Pump Relief Valve
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15132-03020 |
— | ||
|
15132
|
15132
15132-88380
Spring, Oil Pump Relief Valve
[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15132-88380 |
— | ||
|
15135
|
15135
15135-03010
Retainer, Oil Pump Relief Valve
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15135-03010 |
— | ||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15135-15010 |
US $5.38 |
||
|
15193
|
15193
15197-03040 Gasket, Oil Pump[06.1998 - 07.2001] 5SFE..SXV20 (L) |
15197-03040 |
US $18.64 |
||
|
15193
|
15193
15197-74040 Gasket, Oil Pump[06.1998 - 07.2001] 5SFE..SXV20 (J) |
15197-74040 |
from US $6.90 |
||
|
9002901501
|
9002901501
90029-01501 Bolt,stud(For Oil Pump) |
90029-01501 |
US $1.60 |
||
|
9008010164
|
9008010164
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9008011043
|
9008011043
90080-11043
New Genuine Part
|
90080-11043 |
— | ||
|
9008011174
|
9008011174
90080-11174
New Genuine Part
|
90080-11174 |
— | ||
|
9008011176
|
9008011176
90080-11176
New Genuine Part
|
90080-11176 |
— | ||
|
9008017041
|
9008017041
90080-17041
New Genuine Part
|
90080-17041 |
— | ||
|
9008261007
|
9008261007
90082-61007 Ring, Hole Snap (For Pressure Regulator Valve Set) |
90082-61007 |
US $0.87 |
||
| replacement | |||||
|
9008261007
|
9008261007
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $3.05 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
from US $0.99 |
||
|
9011906638
|
9011906638
90119-06638 New Genuine Part |
90119-06638 |
US $1.60 |
||
|
9011906684
|
9011906684
90119-06684 New Genuine Part |
90119-06684 |
US $1.51 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
US $1.08 |
||
|
9017908243
|
9017908243
90179-08243 New Genuine Part |
90179-08243 |
US $2.33 |
||
|
9092901373
|
9092901373
90929-01373 New Genuine Part |
90929-01373 |
US $2.48 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $3.05 |
||
