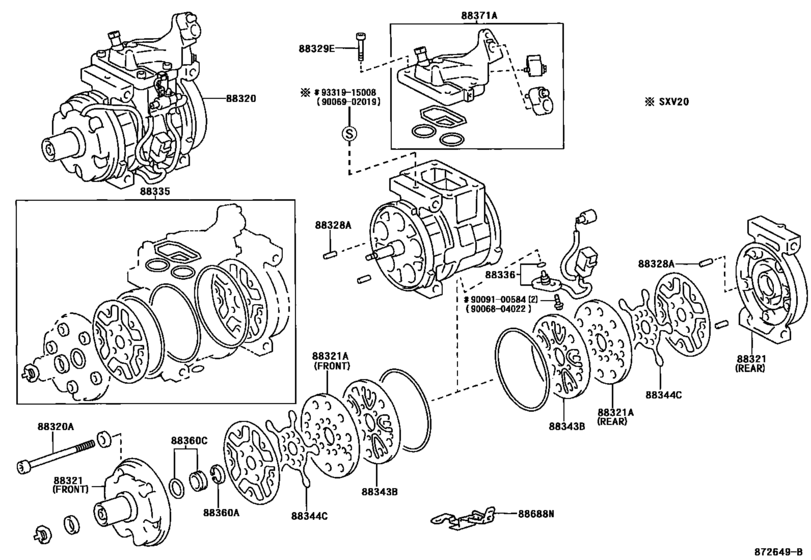

Heating & Air Conditioning - Compressor ([06.1998 - ] (9806- )MCV20,SXV20) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-06070
Compressor Assy, Cooler
[06.1998 - 07.2001] SXV20 |
88320-06070 |
— | ||
|
88320A
|
88320A
90068-04006
Bolt, Through
[06.1998 - 07.2002] MCV20,SXV20 |
90068-04006 |
— | ||
|
88321
|
88321
88321-06060
Head, Cooler Compressor Cylinder
[06.1998 - 07.2002] MCV20,SXV20 FRONT |
88321-06060 |
— | ||
|
88321
|
88321
88322-06070
Head, Cooler Compressor Cylinder
[06.1998 - 07.2001] SXV20 REAR |
88322-06070 |
— | ||
|
88321A
|
88321A
88341-06050
Plate Sub-Assy, Valve
[06.1998 - 07.2002] MCV20,SXV20 FRONT |
88341-06050 |
— | ||
|
88321A
|
88321A
88342-06040
Plate Sub-Assy, Valve
[06.1998 - 07.2002] MCV20,SXV20 REAR |
88342-06040 |
— | ||
|
88328A
|
88328A
90068-08001
Pin, Compressor
[06.1998 - 07.2001] MCV20,SXV20 |
90068-08001 |
— | ||
|
88329E
|
88329E
90068-04007
Bolt, Compressor, No.1
[06.1998 - 07.2002] MCV20,SXV20 |
90068-04007 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[06.1998 - 07.2002] MCV20,SXV20 |
88335-2B030 |
from US $35.21 |
||
|
88343B
|
88343B
88343-06030
Reed, Suction Valve
[06.1998 - 07.2002] MCV20,SXV20 |
88343-06030 |
— | ||
|
88344C
|
88344C
88344-06050
Reed, Discharge Valve
[06.1998 - 07.2002] MCV20,SXV20 |
88344-06050 |
— | ||
|
88360A
|
88360A
90068-07002
Ring, Compressor Seal Plate Snap
[06.1998 - 07.2002] MCV20,SXV20 |
90068-07002 |
— | ||
|
88360C
|
88360C
88360-06030
Seal Assy, Shaft
[06.1998 - 07.2002] MCV20,SXV20 |
88360-06030 |
— | ||
|
88371A
|
88371A
88371-33030
Valve, Suction
[06.1998 - 07.2001] SXV20 |
88371-33030 |
— | ||
|
88688N
|
88688N
88688-22180
Bracket, Cooler
[06.1998 - 07.2002] MCV20,SXV20 |
88688-22180 |
— | ||
|
9006804022
|
9006804022
90068-04022
New Genuine Part
|
90068-04022 |
— | ||
|
9006902019
|
9006902019
90069-02019 New Genuine Part |
90069-02019 |
US $1.60 |
||
|
9009100584
|
9009100584
90091-00584
New Genuine Part
|
90091-00584 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
