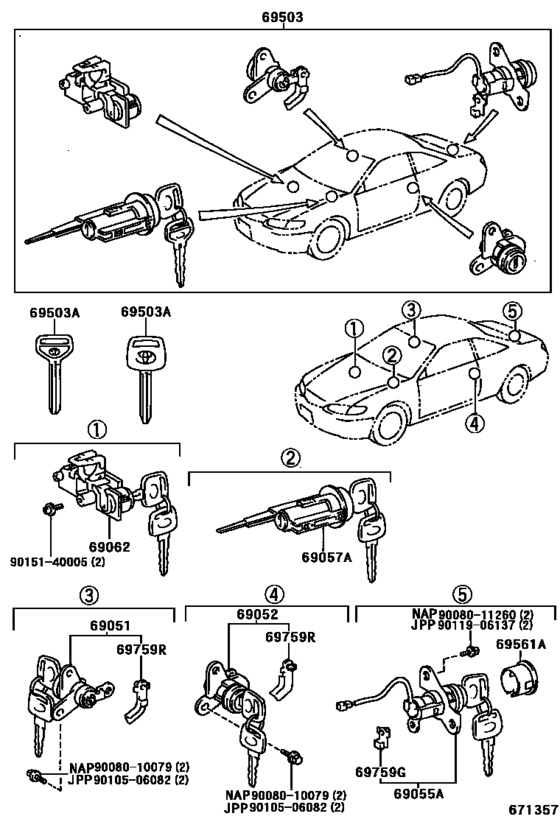

Lock Cylinder Set ([06.1998 - ] (9806- )) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-33200
Cylinder & Key Set, Door Lock, Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69051-33200 |
— | ||
| replacement | |||||
|
69051
|
69051
69051-41050 Cylinder & Key Set, Door Lock, Rh[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69051-41050 |
US $54.02 |
||
|
69052
|
69052
69052-33210
Cylinder & Key Set, Door Lock, Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69052-33210 |
— | ||
| replacement | |||||
|
69052
|
69052
69052-41050
Cylinder & Key Set, Door Lock, Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69052-41050 |
— | ||
|
69055A
|
69055A
69055-33290
Cylinder & Key Set, Luggage Compartment Lock
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69055-33290 |
— | ||
|
69055A
|
69055A
69055-33300
Cylinder & Key Set, Luggage Compartment Lock
[06.1998 - 08.1999] MCV20,SXV20 W(THEFT-DETERRENT SYSTEM) |
69055-33300 |
— | ||
| replacements | |||||
|
69055A
|
69055A
84903-52010 Switch Sub-Assy, Door UnlockDOOR UNLOCK [06.1998 - 08.1999] MCV20,SXV20 W(THEFT-DETERRENT SYSTEM) |
84903-52010 |
US $33.49 |
||
|
69055A
|
69055A
69055-33290
Cylinder & Key Set, Luggage Compartment Lock
[06.1998 - 08.1999] MCV20,SXV20 W(THEFT-DETERRENT SYSTEM) |
69055-33290 |
— | ||
|
69057A
|
69057A
69057-33170
Cylinder & Key Set, Ignition Switch Lock
[06.1998 - 08.1999] MCV20,SXV20 |
69057-33170 |
— | ||
| replacement | |||||
|
69057A
|
69057A
69057-48011 Cylinder & Key Set, Ignition Switch Lock[06.1998 - 08.1999] MCV20,SXV20 |
69057-48011 |
from US $89.76 |
||
|
69062
|
69062
69056-33020
Cylinder & Key Set, Glove Compartment Lock
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69056-33020 |
— | ||
| replacement | |||||
|
69062
|
69062
69056-42020 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69056-42020 |
from US $84.91 |
||
|
69503
|
69503
69005-33630
Cylinder Set, Lock
[06.1998 - 08.1999] MCV20,SXV20 |
69005-33630 |
— | ||
|
69503A
|
69503A
90999-00185 Key, Blank[06.1998 - 08.1999] MCV20,SXV20 MASTER KEY,W(*68) |
90999-00185 |
from US $10.09 |
||
|
69503A
|
69503A
90999-00188 Key, Blank[06.1998 - 08.1999] MCV20,SXV20 SUB KEY |
90999-00188 |
from US $6.14 |
||
|
69561A
|
69561A
69561-06010-A0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SU.WHITE PM,051,(L) |
69561-06010-A0 |
— | ||
|
69561A
|
69561A
69561-06010-B0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 07.2001] MCV20,SXV20 SILVER ME.OP.,1C4,(L) |
69561-06010-B0 |
— | ||
|
69561A
|
69561A
69561-06010-C0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.1999] MCV20,SXV20 BLACK M,204,(L) |
69561-06010-C0 |
— | ||
|
69561A
|
69561A
69561-06010-C1
Retainer, Luggage Compartment Lock Cylinder
[08.1999 - 12.2002] ACV20,MCV20,SXV20 BLACK MC.,209,(L) |
69561-06010-C1 |
— | ||
|
69561A
|
69561A
69561-06010-D0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.1999] MCV20,SXV20 CHAMPAGNE M.M.,3M5,(L) |
69561-06010-D0 |
— | ||
|
69561A
|
69561A
69561-06010-D1
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 12.2002] ACV20,MCV20,SXV20 RED MC.,3N5,(L) |
69561-06010-D1 |
— | ||
|
69561A
|
69561A
69561-06010-E0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 02.2000] MCV20,SXV20 COPPER M.M.,4P6,(L) |
69561-06010-E0 |
— | ||
|
69561A
|
69561A
69561-06010-E1
Retainer, Luggage Compartment Lock Cylinder
[08.1999 - 12.2002] ACV20,MCV20,SXV20 BEIGE ME.,4Q5,(L) |
69561-06010-E1 |
— | ||
|
69561A
|
69561A
69561-06010-G0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 07.2001] MCV20,SXV20..CP GREEN MC.,6R3,(L) |
69561-06010-G0 |
— | ||
|
69561A
|
69561A
69561-06010-J0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.2000] MCV20,SXV20..CP BLUE M.M.,8M8,(L) |
69561-06010-J0 |
— | ||
|
69561A
|
69561A
69561-06010-J1
Retainer, Luggage Compartment Lock Cylinder
[08.2000 - 12.2002] ACV20,MCV20,SXV20..CP DK.BLUE M.M.,8P4,(L) |
69561-06010-J1 |
— | ||
|
69561A
|
69561A
69561-33020-A0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SU.WHITE PM,051,(J) |
69561-33020-A0 |
— | ||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SU.WHITE PM,051,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-B0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 07.2001] MCV20,SXV20 SILVER ME.OP.,1C4,(J) |
69561-33020-B0 |
— | ||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 07.2001] MCV20,SXV20 SILVER ME.OP.,1C4,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-C0
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.1999] MCV20,SXV20 BLACK M,204,(J) |
69561-33020-C0 |
— | ||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.1999] MCV20,SXV20 BLACK M,204,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-C1
Retainer, Luggage Compartment Lock Cylinder
[08.1999 - 12.2002] ACV20,MCV20,SXV20 BLACK MC.,209,(J) |
69561-33020-C1 |
— | ||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[08.1999 - 12.2002] ACV20,MCV20,SXV20 BLACK MC.,209,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-D0 Retainer, Luggage Compartment Lock Cylinder[06.1998 - 08.1999] MCV20,SXV20 CHAMPAGNE M.M.,3M5,(J) |
69561-33020-D0 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.1999] MCV20,SXV20 CHAMPAGNE M.M.,3M5,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-D1 Retainer, Luggage Compartment Lock Cylinder[06.1998 - 12.2002] ACV20,MCV20,SXV20 RED MC.,3N5,(J) |
69561-33020-D1 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 12.2002] ACV20,MCV20,SXV20 RED MC.,3N5,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-E0 Retainer, Luggage Compartment Lock Cylinder[06.1998 - 02.2000] MCV20,SXV20 COPPER M.M.,4P6,(J) |
69561-33020-E0 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 02.2000] MCV20,SXV20 COPPER M.M.,4P6,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-E1 Retainer, Luggage Compartment Lock Cylinder[08.1999 - 12.2002] ACV20,MCV20,SXV20 BEIGE ME.,4Q5,(J) |
69561-33020-E1 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[08.1999 - 12.2002] ACV20,MCV20,SXV20 BEIGE ME.,4Q5,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-G0 Retainer, Luggage Compartment Lock Cylinder[06.1998 - 07.2001] MCV20,SXV20..CP GREEN MC.,6R3,(J) |
69561-33020-G0 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 07.2001] MCV20,SXV20..CP GREEN MC.,6R3,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-J0 Retainer, Luggage Compartment Lock Cylinder[06.1998 - 08.2000] MCV20,SXV20..CP BLUE M.M.,8M8,(J) |
69561-33020-J0 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[06.1998 - 08.2000] MCV20,SXV20..CP BLUE M.M.,8M8,(J) |
69561-33900 |
— | ||
|
69561A
|
69561A
69561-33020-J1 Retainer, Luggage Compartment Lock Cylinder[08.2000 - 12.2002] ACV20,MCV20,SXV20..CP DK.BLUE M.M.,8P4,(J) |
69561-33020-J1 |
US $3.49 |
||
| replacement | |||||
|
69561A
|
69561A
69561-33900
Retainer, Luggage Compartment Lock Cylinder
[08.2000 - 12.2002] ACV20,MCV20,SXV20..CP DK.BLUE M.M.,8P4,(J) |
69561-33900 |
— | ||
|
69759G
|
69759G
69759-24080 Snap, Front Door Lock Control Rod[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
69759-24080 |
from US $2.24 |
||
|
69759R
|
69759R
69759-12080 Snap, Front Door Lock Cylinder[06.1998 - 07.2002] ACV20,MCV20,SXV20 WHITE |
69759-12080 |
US $3.14 |
||
|
69759R
|
69759R
69759-12090 Snap, Front Door Lock Cylinder[06.1998 - 07.2002] ACV20,MCV20,SXV20 YELLOW |
69759-12090 |
US $2.33 |
||
|
9008010079
|
9008010079
90080-10079
New Genuine Part
|
90080-10079 |
— | ||
|
9008011260
|
9008011260
90080-11260
New Genuine Part
|
90080-11260 |
— | ||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.67 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
