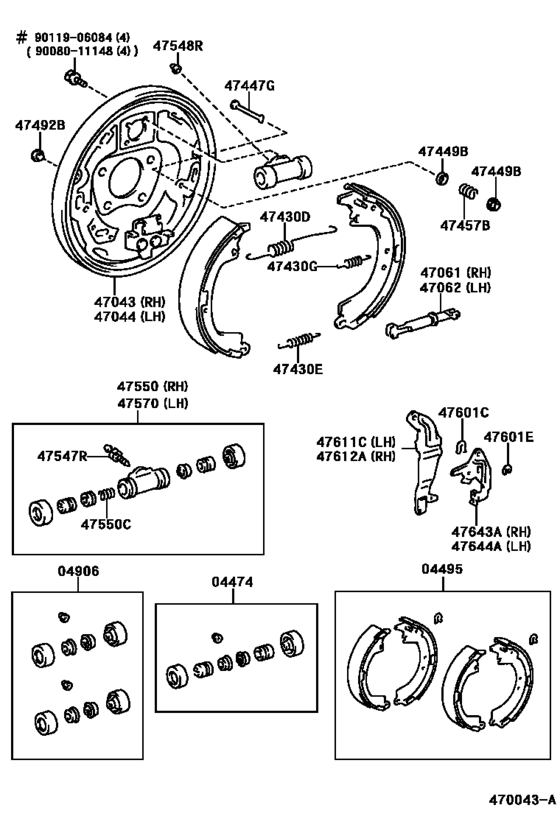

Rear Drum Brake Wheel Cylinder & Backing Plate ([06.1998 - ] (9806- )ACV20,SXV20..CP) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-33010 Cylinder Kit, Rear Wheel[06.1998 - 12.2002] ACV20,SXV20..CP |
04474-33010 |
US $26.64 |
||
|
04495
|
04495
04495-06010
Shoe Kit, Rear Brake
[06.1998 - 12.2002] ACV20,SXV20..CP MARK AK LA509A |
04495-06010 |
— | ||
|
04906
|
04906
04906-33010 Cup Kit, Rear Wheel Cylinder[06.1998 - 12.2002] ACV20,SXV20..CP |
04906-33010 |
US $13.98 |
||
| replacement | |||||
|
04906
|
04906
04906-28040 Cup Kit, Rear Wheel Cylinder[06.1998 - 12.2002] ACV20,SXV20..CP |
04906-28040 |
US $15.59 |
||
|
47043
|
47043
47043-06020
Plate Sub-Assy, Brake Backing, Rear Rh
[06.1998 - 12.2002] ACV20,SXV20..CP |
47043-06020 |
— | ||
|
47044
|
47044
47044-06020
Plate Sub-Assy, Brake Backing, Rear Lh
[06.1998 - 12.2002] ACV20,SXV20..CP |
47044-06020 |
— | ||
|
47061
|
47061
47061-06020 Strut Set, Parking Brake Shoe, RhPARKING BRAKE SHOE, RH [03.1999 - 12.2002] ACV20,SXV20..CP |
47061-06020 |
US $29.27 |
||
|
47061
|
47061
47061-33010 Strut Set, Parking Brake Shoe, Rh[06.1998 - 03.1999] SXV20 |
47061-33010 |
US $28.48 |
||
|
47062
|
47062
47062-06020 Strut Set, Parking Brake Shoe, LhPARKING BRAKE SHOE, LH [03.1999 - 12.2002] ACV20,SXV20..CP |
47062-06020 |
US $29.27 |
||
|
47062
|
47062
47062-33010 Strut Set, Parking Brake Shoe, Lh[06.1998 - 03.1999] SXV20 |
47062-33010 |
US $28.48 |
||
|
47430D
|
47430D
90080-50069
Spring, Tension(For Rear Brake Shoe Return)
[06.1998 - 12.2002] ACV20,SXV20..CP RH |
90080-50069 |
— | ||
|
47430D
|
47430D
90080-50070
Spring, Tension(For Rear Brake Shoe Return)
[06.1998 - 12.2002] ACV20,SXV20..CP LH |
90080-50070 |
— | ||
|
47430E
|
47430E
90080-50068
Spring, Tension(For Rear Brake Shoe Return)
[06.1998 - 12.2002] ACV20,SXV20..CP |
90080-50068 |
— | ||
|
47430G
|
47430G
90080-50067
Spring, Tension(For Rear Brake Automatic Adjust Lever)
[06.1998 - 12.2002] ACV20,SXV20..CP |
90080-50067 |
— | ||
|
47447G
|
47447G
47447-07020 Pin, Shoe Hold Down Spring, No.2(For Parking Brake)[06.1998 - 12.2002] ACV20,SXV20..CP |
47447-07020 |
US $1.46 |
||
|
47449B
|
47449B
47449-06010
Cup, Shoe Hold Down Spring(For Rear Brake)
[06.1998 - 12.2002] ACV20,SXV20..CP |
47449-06010 |
— | ||
|
47457B
|
47457B
90080-50066
Spring(For Rear Brake Shoe Hold Down)
[06.1998 - 04.2002] ACV20,SXV20..CP |
90080-50066 |
— | ||
|
47492B
|
47492B
47492-06010
Plug, Shoe Inspection(For Rear Brake)
[06.1998 - 12.2002] ACV20,SXV20..CP |
47492-06010 |
— | ||
|
47547R
|
47547R
47547-22020 Plug, Bleeder(For Rear Disc Brake)[06.1998 - 12.2002] ACV20,SXV20..CP |
47547-22020 |
US $3.23 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[06.1998 - 12.2002] ACV20,SXV20..CP |
31478-30010 |
from US $1.48 |
||
|
47550
|
47550
47550-06030 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) [06.1998 - 12.2002] ACV20,SXV20..CP |
47550-06030 |
US $77.17 |
||
|
47550C
|
47550C
90501-09079 Spring, Compression(For Rear Wheel Brake Cylinder)[06.1998 - 12.2002] ACV20,SXV20..CP |
90501-09079 |
US $1.16 |
||
|
47570
|
47570
47570-06030 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) [06.1998 - 12.2002] ACV20,SXV20..CP |
47570-06030 |
US $77.17 |
||
|
47601C
|
47601C
90080-20012
Washer, C(For Rear Brake)
[06.1998 - 12.2002] ACV20,SXV20..CP T=1.2 |
90080-20012 |
— | ||
|
47601E
|
47601E
90080-52087
Ring, E(For Rear Brake)
[06.1998 - 12.2002] ACV20,SXV20..CP |
90080-52087 |
— | ||
|
47611C
|
47611C
47611-06020
Lever, Parking Brake Shoe, Rh
[06.1998 - 12.2002] ACV20,SXV20..CP |
47611-06020 |
— | ||
|
47612A
|
47612A
47612-06020 Lever, Parking Brake Shoe, Lh[06.1998 - 12.2002] ACV20,SXV20..CP |
47612-06020 |
US $53.14 |
||
|
47643A
|
47643A
47643-06020 Lever, Rear Brake Automatic Adjust, Rh[06.1998 - 12.2002] ACV20,SXV20..CP |
47643-06020 |
US $11.21 |
||
|
47644A
|
47644A
47644-06020 Lever, Rear Brake Automatic Adjust, Lh[06.1998 - 12.2002] ACV20,SXV20..CP |
47644-06020 |
US $11.21 |
||
|
9008011148
|
9008011148
90080-11148 New Genuine Part |
90080-11148 |
US $0.73 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.97 |
||
