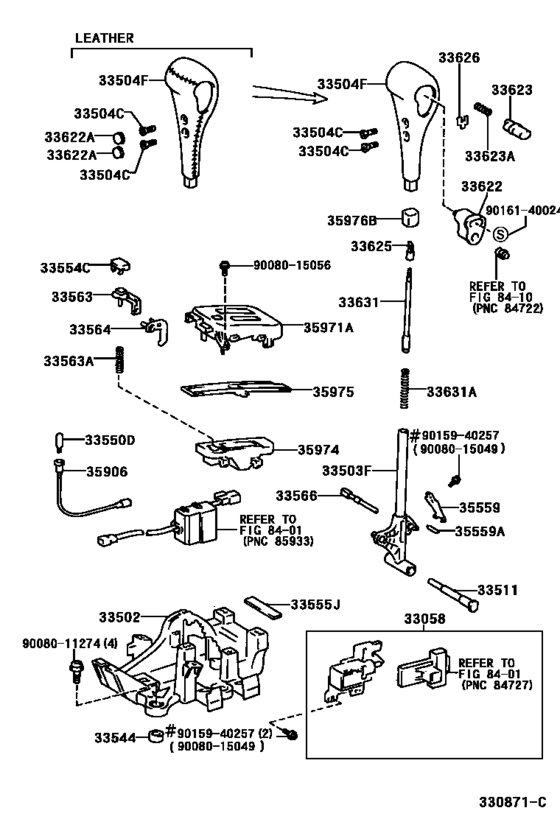

Shift Lever & Retainer ([06.1998 - ] (9806- )ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-06020
Bracket Sub-Assy, Shift Lock Solenoid
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33058-06020 |
— | ||
|
33502
|
33502
33521-06020
Plate Sub-Assy, Shift Lever
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33521-06020 |
— | ||
|
33503F
|
33503F
33055-33110 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33055-33110 |
US $38.44 |
||
|
33504C
|
33504C
90080-15048 Screw (For Shift Lever Knob Setting)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90080-15048 |
US $1.46 |
||
|
33504F
|
33504F
33542-06010-C0 Knob Sub-Assy, Shift Lever[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM URETHANE,BLACK,TRIM0#,1# |
33542-06010-C0 |
US $84.45 |
||
|
33504F
|
33504F
33542-06020-C0
Knob Sub-Assy, Shift Lever
[06.1998 - 08.2000] MCV20..ATM;SXV20..CP..ATM LEATHER,BLACK,TRIM0#,1# |
33542-06020-C0 |
— | ||
|
33511
|
33511
33511-06010
Shaft, Control (For Floor Shift)
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33511-06010 |
— | ||
|
33544
|
33544
33544-06010 Insert, Shift Lever, No.1[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33544-06010 |
US $0.99 |
||
|
33550D
|
33550D
90080-81039
Bulb, Position Indicator Lamp
[06.1998 - 01.1999] MCV20,SXV20..ATM 14V 3.4W |
90080-81039 |
— | ||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[01.1999 - 12.2002] ACV20,MCV20,SXV20..ATM 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[01.1999 - 12.2002] ACV20,MCV20,SXV20..ATM 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33554C
|
33554C
33554-06030
Cover, Shift Lock Release Button
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33554-06030 |
— | ||
|
33555J
|
33555J
33555-06020 Seal, Shift LeverSHIFT LEVER [06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33555-06020 |
US $3.06 |
||
|
33563
|
33563
33563-06030
Button, Shift Lock Release
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33563-06030 |
— | ||
|
33563A
|
33563A
90080-50179 Spring, Compression (For Shift Lock Release Button)COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) [06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90080-50179 |
US $1.16 |
||
|
33564
|
33564
33564-06010
Link, Shift Lock Release, No.1
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33564-06010 |
— | ||
|
33566
|
33566
33566-33010
Pin, Shift Lever Stop
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33566-33010 |
— | ||
|
33622
|
33622
33622-06010-C0
Cover, Shift Lever Knob, No.1
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM BLACK,TRIM0#,1# |
33622-06010-C0 |
— | ||
|
33622A
|
33622A
33622-20050-C0 Cover, Shift Lever Knob, No.2[06.1998 - 08.2000] MCV20..ATM;SXV20..CP..ATM BLACK,TRIM0#,1# |
33622-20050-C0 |
US $5.10 |
||
|
33623
|
33623
33623-06020-C0
Button, Shift Lever Knob
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM BLACK,TRIM0#,1# |
33623-06020-C0 |
— | ||
|
33623A
|
33623A
90080-50180 Spring, Compression (For Shift Lever Knob Button)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90080-50180 |
US $1.75 |
||
|
33625
|
33625
33625-33040 Sleeve, Shift Lever Knob[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33625-33040 |
US $9.03 |
||
|
33626
|
33626
33626-06010 Stopper, Shift Lever Button[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33626-06010 |
US $5.24 |
||
|
33631
|
33631
33631-33020 Rod, Detent[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
33631-33020 |
US $5.39 |
||
|
33631A
|
33631A
90080-50178 Spring, Compression (For Detent Rod)COMPRESSION (FOR DETENT ROD) [06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90080-50178 |
US $1.75 |
||
|
35559
|
35559
35559-33030 Spring, Manual Detent[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
35559-33030 |
US $5.68 |
||
|
35559A
|
35559A
90249-02005 Pin, Shift Lever (For Floor Shift)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90249-02005 |
US $2.04 |
||
|
35906
|
35906
35906-06010
Wire Sub-Assy, Indicator Lamp
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
35906-06010 |
— | ||
|
35971A
|
35971A
35971-33110
Housing, Position Indicator, Upper
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
35971-33110 |
— | ||
|
35974
|
35974
35974-06020
Housing, Position Indicator, Lower
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
35974-06020 |
— | ||
|
35975
|
35975
35975-06030
Cover, Slide (For Position Indicator)
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
35975-06030 |
— | ||
|
35976B
|
35976B
35976-06020-C0
Cover, Shift Lever Knob (For Floor Shift)
[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM BLACK,TRIM0#,1# |
35976-06020-C0 |
— | ||
|
9008011274
|
9008011274
90080-11274
New Genuine Part
|
90080-11274 |
— | ||
|
9008015049
|
9008015049
90080-15049 New Genuine Part |
90080-15049 |
US $1.16 |
||
|
9008015056
|
9008015056
90080-15056
New Genuine Part
|
90080-15056 |
— | ||
|
9015940257
|
9015940257
90159-40257 New Genuine Part |
90159-40257 |
US $1.46 |
||
|
9016140024
|
9016140024
90161-40024 SCREW |
90161-40024 |
US $0.96 |
||
