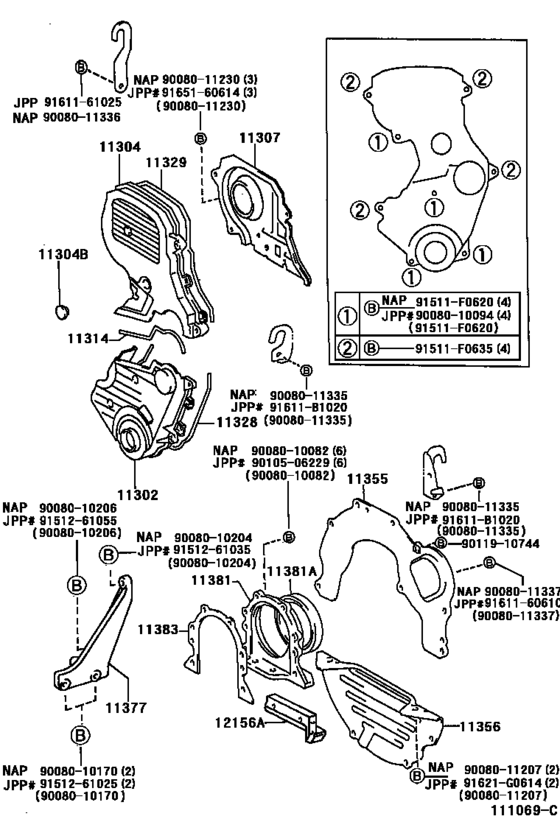

Timing Gear Cover & Rear End Plate ([06.1998 - ] (9806- )5SFE) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-74040 Cover Sub-Assy, Timing Chain Or Belt[06.1998 - 07.2001] 5SFE..SXV20 |
11302-74040 |
from US $51.64 |
||
|
11304
|
11304
11303-74050 Cover, Timing Chain Or Belt, No.2[06.1998 - 07.2001] 5SFE..SXV20 |
11303-74050 |
from US $64.01 |
||
|
11304B
|
11304B
90950-01489 Plug, Semi Circular(For Chain Cover No.2)[06.1998 - 07.2001] 5SFE..SXV20 OD=33 |
90950-01489 |
from US $3.29 |
||
|
11307
|
11307
11304-74060
Cover, Sub-Assy, Timing Belt, No.3
[06.1998 - 07.2001] 5SFE..SXV20 |
11304-74060 |
— | ||
|
11314
|
11314
11319-74030 Gasket, Timing Chain No.2 Cover[06.1998 - 07.2001] 5SFE..SXV20 |
11319-74030 |
from US $5.13 |
||
|
11328
|
11328
11328-74060 Gasket, Timing Gear Or Chain Cover[06.1998 - 07.2001] 5SFE..SXV20 |
11328-74060 |
from US $5.95 |
||
|
11329
|
11329
11329-74080 Gasket, Timing Gear Rear Cover[06.1998 - 07.2001] 5SFE..SXV20 |
11329-74080 |
from US $5.89 |
||
|
11355
|
11355
11355-74010 Plate, Rear End[06.1998 - 07.2001] 5SFE..SXV20 |
11355-74010 |
US $38.58 |
||
|
11356
|
11356
11356-03021
Plate, Rear End, No.2
[06.1998 - 07.2001] 5SFE..SXV20 |
11356-03021 |
— | ||
|
11377
|
11377
33118-33010 Stiffener, Rear End PlateREAR END PLATE [06.1998 - 07.2001] 5SFE..SXV20 |
33118-33010 |
US $126.67 |
||
|
11381
|
11381
11381-63012 Retainer, Engine Rear Oil Seal[06.1998 - 07.2001] 5SFE..SXV20 |
11381-63012 |
US $71.40 |
||
|
11381A
|
11381A
90080-31021
Seal, Engine Rear Oil
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
90080-31021 |
— | ||
|
11381A
|
11381A
90311-85008 Seal, Engine Rear Oil[06.1998 - 07.2001] 5SFE..SXV20 (J),NOK |
90311-85008 |
from US $25.37 |
||
|
11381A
|
11381A
90311-85009 Seal, Engine Rear Oil[06.1998 - 07.2001] 5SFE..SXV20 (J),ARS |
90311-85009 |
from US $21.17 |
||
|
11383
|
11383
11383-03020
Gasket, Engine Rear Oil Seal Retainer
[06.1998 - 07.2001] 5SFE..SXV20 (L) |
11383-03020 |
— | ||
|
11383
|
11383
11383-74021 Gasket, Engine Rear Oil Seal Retainer[06.1998 - 07.2001] 5SFE..SXV20 (J) |
11383-74021 |
from US $3.48 |
||
|
12156A
|
12156A
12156-74040
Insulator, Oil Pan
[06.1998 - 07.2001] 5SFE..SXV20 |
12156-74040 |
— | ||
|
91511F0620
|
91511F0620
91511-F0620 New Genuine Part |
91511-F0620 |
US $0.51 |
||
|
91511F0635
|
91511F0635
91511-F0635 BOLT |
91511-F0635 |
US $2.15 |
||
|
91611B1020
|
91611B1020
91611-B1020 Bolt (For Transfer Case)Cover No.2 |
91611-B1020 |
US $1.89 |
||
| replacement | |||||
|
91611B1020
|
91611B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
91621G0614
|
91621G0614
91621-G0614 Bolt(For Transaxle & Engine Setting) |
91621-G0614 |
US $0.87 |
||
|
9008010082
|
9008010082
90080-10082
New Genuine Part
|
90080-10082 |
— | ||
|
9008010094
|
9008010094
90080-10094
New Genuine Part
|
90080-10094 |
— | ||
|
9008010170
|
9008010170
90080-10170
New Genuine Part
|
90080-10170 |
— | ||
|
9008010204
|
9008010204
90080-10204
New Genuine Part
|
90080-10204 |
— | ||
|
9008010206
|
9008010206
90080-10206
New Genuine Part
|
90080-10206 |
— | ||
|
9008011207
|
9008011207
90080-11207
New Genuine Part
|
90080-11207 |
— | ||
|
9008011230
|
9008011230
90080-11230
New Genuine Part
|
90080-11230 |
— | ||
|
9008011335
|
9008011335
90080-11335
New Genuine Part
|
90080-11335 |
— | ||
|
9008011336
|
9008011336
90080-11336
New Genuine Part
|
90080-11336 |
— | ||
|
9008011337
|
9008011337
90080-11337
New Genuine Part
|
90080-11337 |
— | ||
|
9010506229
|
9010506229
90105-06229 New Genuine Part |
90105-06229 |
US $1.60 |
||
| replacement | |||||
|
9010506229
|
9010506229
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9011910744
|
9011910744
90119-10744
New Genuine Part
|
90119-10744 |
— | ||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.93 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9151261055
|
9151261055
91512-61055 BOLT, FLANGE |
91512-61055 |
from US $1.31 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
