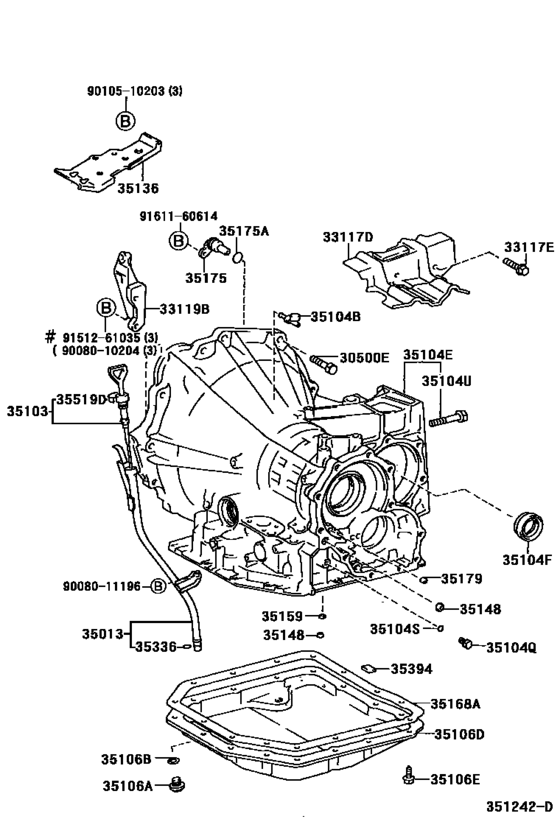

Transmission Case & Oil Pan (Atm) ([06.1998 - 07.2001] A140E (9806-0107)SXV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2001] SXV20..ATM *8-1.25PX18-15 |
90080-10083 |
— | ||
|
30500E
|
30500E
90080-11360
Bolt(For Transaxle & Engine Setting)
[06.1998 - 07.2001] SXV20..ATM *10-1.25PX22-14.8 |
90080-11360 |
— | ||
|
30500E
|
30500E
90080-11422 Bolt(For Transaxle & Engine Setting)[04.1999 - 07.2001] SXV20..ATM *12-1.25PX45-30,(L) |
90080-11422 |
US $2.04 |
||
|
30500E
|
30500E
91619-61245 Bolt(For Transaxle & Engine Setting)[06.1998 - 04.1999] SXV20..ATM *12-1.25PX45-30 |
91619-61245 |
from US $1.77 |
||
|
33117D
|
33117D
33117-32060 Protector, Automatic Transmission Case[06.1998 - 07.2001] SXV20..ATM |
33117-32060 |
US $18.35 |
||
|
33117E
|
33117E
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2001] SXV20..ATM |
90080-10083 |
— | ||
|
33119B
|
33119B
33119-33010
Plate, Stiffener, Lh(Mtm)
[06.1998 - 07.2001] SXV20..ATM |
33119-33010 |
— | ||
|
35013
|
35013
35013-06050
Tube Sub-Assy, Transmission Oil Filler
[06.1998 - 07.2001] SXV20..ATM |
35013-06050 |
— | ||
|
35103
|
35103
35103-06020
Gage Sub-Assy, Transmission Oil Level
[06.1998 - 07.2001] SXV20..ATM |
35103-06020 |
— | ||
|
35104B
|
35104B
90930-03089
Plug, Breather, No.1 (Atm)
[06.1998 - 07.2001] SXV20..ATM |
90930-03089 |
— | ||
|
35104E
|
35104E
35104-32170 Case Sub-Assy, Automatic Transaxle[06.1998 - 07.2001] SXV20..ATM |
35104-32170 |
US $1,241.97 |
||
|
35104F
|
35104F
90311-35019 Seal, Oil, No.2(For Transaxle Case)[06.1998 - 07.2001] SXV20..ATM |
90311-35019 |
from US $7.17 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[06.1998 - 07.2001] SXV20..ATM |
90341-08001 |
from US $1.48 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[06.1998 - 07.2001] SXV20..ATM |
90301-06196 |
from US $2.36 |
||
|
35104U
|
35104U
90105-12052 Bolt (For Transaxle Case)[06.1998 - 07.2001] SXV20..ATM *12-1.25PX54-24 |
90105-12052 |
US $4.95 |
||
| replacement | |||||
|
35104U
|
35104U
90105-12263 Bolt (For Rear Axle Carrier)[06.1998 - 07.2001] SXV20..ATM *12-1.25PX54-24 |
90105-12263 |
US $5.56 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90341-18016 |
from US $1.92 |
||
|
35106B
|
35106B
90430-18008 Gasket[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90430-T0021 |
US $0.99 |
||
|
35106D
|
35106D
35106-32012 Pan Sub-Assy, Automatic Transaxle Oil[06.1998 - 07.2001] SXV20..ATM |
35106-32012 |
US $74.26 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[06.1998 - 07.2001] SXV20..ATM |
90119-06173 |
from US $0.74 |
||
|
35136
|
35136
35136-33010
Hanger, Transmission,no.1
[06.1998 - 07.2001] SXV20..ATM |
35136-33010 |
— | ||
|
35148
|
35148
35148-16010 Gasket (For Automatic Transfer Case)[06.1998 - 07.2001] MCV20,SXV20..ATM |
35148-16010 |
US $8.56 |
||
|
35159
|
35159
35159-32011 Gasket, Brake Drum[06.1998 - 12.2002] MCV20,SXV20..ATM |
35159-32011 |
US $11.21 |
||
|
35168A
|
35168A
35168-32010 Gasket, Automatic Transaxle Oil Pan[06.1998 - 07.2001] SXV20..ATM |
35168-32010 |
from US $9.79 |
||
|
35175
|
35175
35175-32010
Cap, Transaxle Case, No.2
[06.1998 - 07.2001] SXV20..ATM |
35175-32010 |
— | ||
|
35175A
|
35175A
90301-21002 Ring, O (For Transaxle Case Cap)[06.1998 - 07.2001] SXV20..ATM |
90301-21002 |
US $3.35 |
||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[06.1998 - 12.2002] MCV20,SXV20..ATM |
35179-32010 |
US $8.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[06.1998 - 12.2002] ACV20,MCV20,SXV20..ATM |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[06.1998 - 12.2002] ACV20,SXV20..ATM |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-32040 Label, Automatic Transmission Information[06.1998 - 12.2002] MCV20,SXV20..ATM |
35519-32040 |
US $6.84 |
||
|
9008010204
|
9008010204
90080-10204
New Genuine Part
|
90080-10204 |
— | ||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9010510203
|
9010510203
90105-10203 New Genuine Part |
90105-10203 |
US $3.14 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
