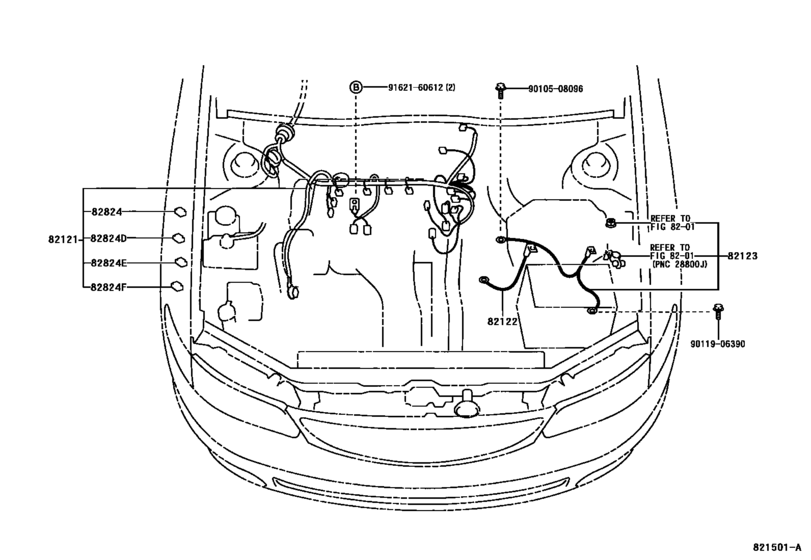

Wiring & Clamp ([06.1998 - 07.2001] ENGINE (9806-0107)SXV20) Diagram Toyota SOLARA
- Year
- 1998 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-06390
Wire, Engine
[06.1998 - 08.1999] SXV20..ATM |
82121-06390 |
— | ||
|
82121
|
82121
82121-06430
Wire, Engine
[06.1998 - 08.1999] SXV20..ATM W(ENGINE IMMOBILIZER SYSTEM) |
82121-06430 |
— | ||
|
82121
|
82121
82121-06480 Wire, EngineENGINE [08.1999 - 08.2000] SXV20..CP..ATM |
82121-06480 |
US $711.98 |
||
|
82121
|
82121
82121-06500 Wire, EngineENGINE [08.2000 - 07.2001] SXV20..CND;SXV20..CVT |
82121-06500 |
US $711.98 |
||
|
82121
|
82121
82121-06520 Wire, EngineENGINE [08.1999 - 08.2000] SXV20..CP..ATM W(ENGINE IMMOBILIZER SYSTEM) |
82121-06520 |
US $642.10 |
||
|
82121
|
82121
82121-06540 Wire, EngineENGINE [08.2000 - 07.2001] SXV20..CND W(ENGINE IMMOBILIZER SYSTEM) |
82121-06540 |
US $640.64 |
||
|
82122
|
82122
82122-07010
Wire, Engine, No.2
[06.1998 - 07.2002] MCV20,SXV20 |
82122-07010 |
— | ||
|
82123
|
82123
82123-06020
Wire, Engine, No.3
[06.1998 - 07.2002] ACV20..MTM;MCV20,SXV20 |
82123-06020 |
— | ||
|
82824
|
82824
82824-24010 Connector, Wiring Harness[06.1998 - 08.2000] MCV20,SXV20 |
82824-24010 |
US $4.54 |
||
|
82824D
|
82824D
82824-22060 Connector, Wiring Harness[06.1998 - 08.2000] SXV20 |
82824-22060 |
US $15.87 |
||
|
82824E
|
82824E
82824-22070 Connector, Wiring Harness[06.1998 - 08.2000] SXV20 |
82824-22070 |
US $18.49 |
||
|
82824F
|
82824F
82824-22090 Connector, Wiring Harness[06.1998 - 08.2000] SXV20 |
82824-22090 |
US $12.96 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
