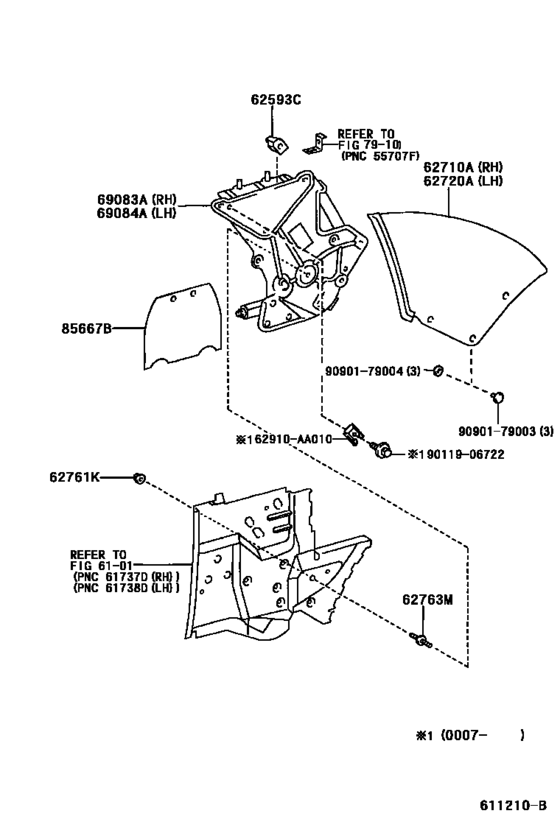

Quarter Window ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2000 - 2001
- Sales region
- U.S.A.
- Frame
- SXV20
- body
- CVT
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 02.2000
- To
- 07.2001
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62593C
|
62593C
62593-AA010
Stopper, Quarter Window Glass
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62593-AA010 |
— | ||
|
62710A
|
62710A
62710-AA040
Window Assy, Quarter, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62710-AA040 |
— | ||
|
62720A
|
62720A
62720-AA040
Window Assy, Quarter, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62720-AA040 |
— | ||
|
62761K
|
62761K
62761-AA020
Retainer, Quarter Window Glass
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62761-AA020 |
— | ||
|
62763M
|
62763M
62763-AA020
Retainer, Quarter Window Glass, Upper
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62763-AA020 |
— | ||
|
69083A
|
69083A
69083-AA010
Guide Sub-Assy, Quarter Window, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
69083-AA010 |
— | ||
|
69084A
|
69084A
69084-AA010
Guide Sub-Assy, Quarter Window, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
69084-AA010 |
— | ||
|
85667B
|
85667B
85667-AA010
Cover, Motor
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
85667-AA010 |
— | ||
|
62910AA010
|
62910AA010
62910-AA010
Lock Assy, Quarter Or Side Window, Rh
|
62910-AA010 |
— | ||
|
9011906722
|
9011906722
90119-06722 New Genuine Part |
90119-06722 |
US $2.15 |
||
|
9090179003
|
9090179003
90901-79003 New Genuine Part |
90901-79003 |
US $2.33 |
||
|
9090179004
|
9090179004
90901-79004 New Genuine Part |
90901-79004 |
US $3.49 |
