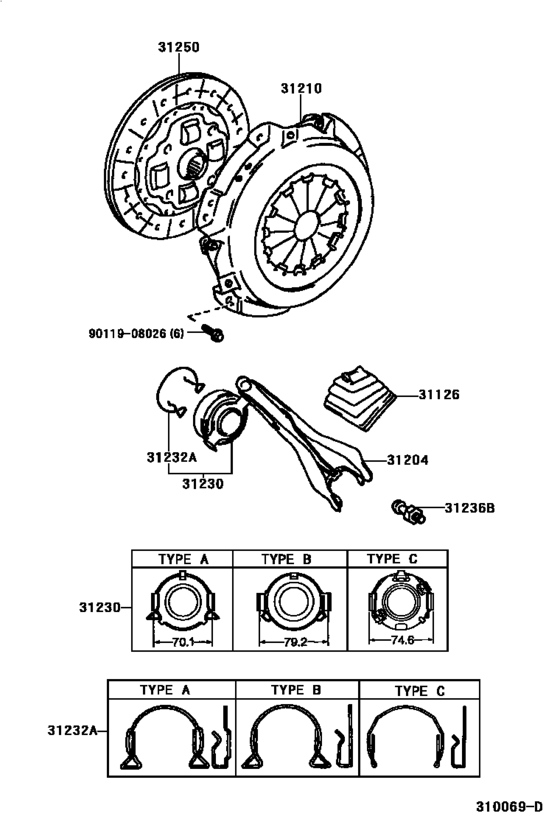

Clutch & Release Fork ([12.1996 - ] (9612- )5F) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[12.1996 - 07.2003] AL50..5F |
31126-12051 |
from US $11.29 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[12.1996 - 12.2002] AL50..5F..GEN |
31204-12050 |
from US $44.18 |
||
|
31210
|
31210
31210-0A010
Cover Assy, Clutch
[12.1996 -] AL50..5F |
31210-0A010 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-02050
Cover Assy, Clutch
[12.1996 -] AL50..5F |
31210-02050 |
— | ||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[12.1996 - 07.1999] AL50..5F TYPE A:REFER TO ILLUSTRATION |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[12.1996 - 07.1999] AL50..5F TYPE A:REFER TO ILLUSTRATION |
31230-16061 |
from US $51.56 |
||
|
31230
|
31230
31230-52010
Bearing Assy, Clutch Release
[07.1999 - 07.2003] AL50..5F TYPE C:REFER TO ILLUSTRATION |
31230-52010 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-52011 Bearing Assy, Clutch Release[07.1999 - 07.2003] AL50..5F TYPE C:REFER TO ILLUSTRATION |
31230-52011 |
US $42.50 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[12.1996 - 07.2003] AL50..5F TYPE B:REFER TO ILLUSTRATION |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[12.1996 - 07.2003] AL50..5F TYPE A:REFER TO ILLUSTRATION |
31232-16031 |
— | ||
|
31232A
|
31232A
31232-52010 Clip, Release Bearing Hub[07.1999 - 07.2003] AL50..5F TYPE C:REFER TO ILLUSTRATION |
31232-52010 |
US $2.62 |
||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[12.1996 - 12.2002] AL50..5F..GEN |
31236-12011 |
from US $12.72 |
||
|
31250
|
31250
31250-0A010
Disc Assy, Clutch
[12.1996 -] AL50..5F |
31250-0A010 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0A011
Disc Assy, Clutch
[12.1996 -] AL50..5F |
31250-0A011 |
— | ||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
