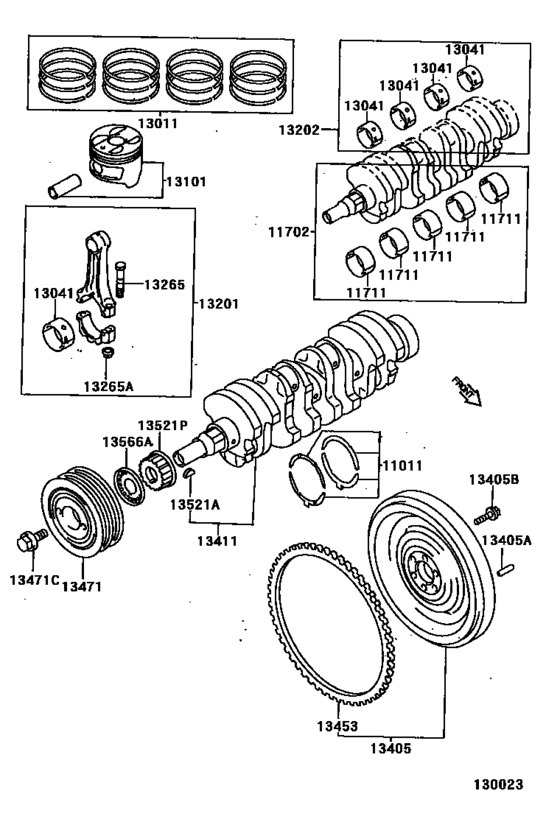

Crankshaft & Piston ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[12.1996 - 12.1997] 5AFE..AL50 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[12.1996 - 12.1997] 5AFE..AL50 STD |
11011-15021 |
US $34.78 |
||
|
11011
|
11011
11011-15020
Washer Set, Crankshaft Thrust
[12.1997 - 07.2003] 5AFE..AL50 STD |
11011-15020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[12.1997 - 07.2003] 5AFE..AL50 STD |
11011-15021 |
US $34.78 |
||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[12.1996 -] 5AFE..AL50 U/S 0.25 |
11704-16010 |
from US $121.08 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-16010-01 |
from US $20.81 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-16010-02 |
from US $18.35 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-16010-03 |
from US $18.31 |
||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-16010-04 |
US $57.62 |
||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
11701-16010-05 |
US $45.49 |
||
|
13011
|
13011
13011-15120 Ring Set, Piston[12.1996 - 12.2002] 5AFE..AL50..GEN STD |
13011-15120 |
from US $117.80 |
||
|
13011
|
13011
13013-15120 Ring Set, Piston[12.1996 - 12.2002] 5AFE..AL50..GEN O/S 0.50 |
13013-15120 |
US $225.68 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-15031-01 |
from US $18.19 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-15031-02 |
from US $14.04 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-15031-03 |
from US $15.33 |
||
|
13101
|
13101
13101-02080-01
Piston Sub-Assy, W/pin
[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,(L) |
13101-02080-01 |
— | ||
|
13101
|
13101
13101-02080-02
Piston Sub-Assy, W/pin
[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,(L) |
13101-02080-02 |
— | ||
|
13101
|
13101
13101-02080-03
Piston Sub-Assy, W/pin
[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,(L) |
13101-02080-03 |
— | ||
|
13101
|
13101
13101-15050-01 Piston Sub-Assy, W/pin[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,(J) |
13101-15050-01 |
US $74.26 |
||
|
13101
|
13101
13101-15050-02 Piston Sub-Assy, W/pin[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,(J) |
13101-15050-02 |
from US $44.60 |
||
|
13101
|
13101
13101-15050-03 Piston Sub-Assy, W/pin[12.1996 - 07.2003] 5AFE..AL50 STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,(J) |
13101-15050-03 |
US $74.26 |
||
|
13101
|
13101
13103-15050 Piston Sub-Assy, W/pin[12.1996 -] 5AFE..AL50 O/S 0.50 |
13103-15050 |
US $74.26 |
||
|
13201
|
13201
13201-19135 Rod Sub-Assy, Connecting[12.1996 -] 5AFE..AL50 |
13201-19135 |
US $123.76 |
||
| replacement | |||||
|
13201
|
13201
13201-19176 Rod Sub-Assy, Connecting[12.1996 -] 5AFE..AL50 |
13201-19176 |
US $101.92 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[12.1996 -] 5AFE..AL50 U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[12.1996 -] 5AFE..AL50 U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15030 Bolt, Connecting Rod[12.1996 - 07.2003] 5AFE..AL50 |
13265-15030 |
US $5.24 |
||
|
13265A
|
13265A
90179-09008 Nut, Hexagon(For Connecting Rod Bolt)[12.1996 - 07.2003] 5AFE..AL50 |
90179-09008 |
US $2.87 |
||
|
13405
|
13405
13405-02050
Flywheel Sub-Assy
[10.1998 - 07.2003] 5AFE..AL50..5F (L) |
13405-02050 |
— | ||
|
13405
|
13405
13405-15090 Flywheel Sub-Assy[12.1996 - 10.1998] 5AFE..AL50..5F |
13405-15090 |
US $321.78 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[12.1996 - 07.2003] 5AFE..AL50..5F L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[12.1996 - 07.2003] 5AFE..AL50..5F |
90105-10042 |
from US $1.29 |
||
|
13411
|
13411
13411-15900 Crankshaft[12.1996 - 07.2003] 5AFE..AL50 |
13411-15900 |
US $1,118.21 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[12.1996 - 07.2003] 5AFE..AL50..5F |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-16100 Pulley, Crankshaft[12.1996 - 07.2003] 5AFE..AL50 |
13470-16100 |
US $385.32 |
||
|
13471C
|
13471C
90119-12230 Bolt(For Crankshaft Pulley Set)[12.1996 - 01.1997] 5AFE..AL50 |
90119-12230 |
US $6.84 |
||
| replacement | |||||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[12.1996 - 01.1997] 5AFE..AL50 |
90119-12314 |
from US $3.28 |
||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[01.1997 - 07.2003] 5AFE..AL50 |
90119-12314 |
from US $3.28 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[12.1996 - 07.2003] 5AFE..AL50 |
90280-05005 |
from US $0.96 |
||
|
13521P
|
13521P
13521-02050
Pulley, Crankshaft Timing
[12.1996 - 07.2003] 5AFE..AL50 (L) |
13521-02050 |
— | ||
|
13521P
|
13521P
13521-15020 Pulley, Crankshaft Timing[12.1996 - 07.2003] 5AFE..AL50 (J) |
13521-15020 |
from US $29.85 |
||
|
13566A
|
13566A
13566-15020 Guide, Timing Belt[12.1996 - 07.2003] 5AFE..AL50 |
13566-15020 |
from US $4.35 |
||
