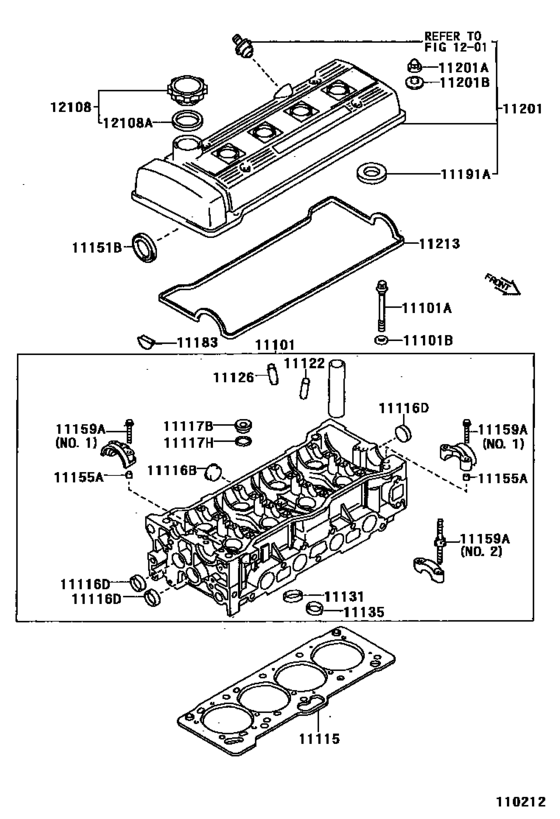

Cylinder Head ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09120
Head Sub-Assy, Cylinder
[11.1998 - 08.2000] 5AFE..AL50..GEN (L) |
11101-09120 |
— | ||
|
11101
|
11101
11101-19375 Head Sub-Assy, Cylinder[12.1996 - 11.1998] 5AFE..AL50 |
11101-19375 |
US $1,345.34 |
||
|
11101A
|
11101A
90109-10058
Bolt(For Cylinder Head Set)
[12.1996 - 10.1997] 5AFE..AL50 *10-1.25PX90-22 |
90109-10058 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02120 Bolt(For Cylinder Head Set)[12.1996 - 10.1997] 5AFE..AL50 *10-1.25PX90-22 |
90910-02120 |
from US $3.80 |
||
|
11101A
|
11101A
90109-10059
Bolt(For Cylinder Head Set)
[12.1996 - 10.1997] 5AFE..AL50 *10-1.25PX108-22 |
90109-10059 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02121 Bolt(For Cylinder Head Set)[12.1996 - 10.1997] 5AFE..AL50 *10-1.25PX108-22 |
90910-02121 |
from US $3.98 |
||
|
11101A
|
11101A
90910-02120 Bolt(For Cylinder Head Set)[10.1997 - 07.2003] 5AFE..AL50 *10-1.25PX90-22 |
90910-02120 |
from US $3.80 |
||
|
11101A
|
11101A
90910-02121 Bolt(For Cylinder Head Set)[10.1997 - 07.2003] 5AFE..AL50 *10-1.25PX108-22 |
90910-02121 |
from US $3.98 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[12.1996 - 07.2003] 5AFE..AL50 |
90201-10344 |
from US $0.99 |
||
|
11115
|
11115
11115-02040
Gasket, Cylinder Head
[12.1996 - 07.2003] 5AFE..AL50 (L) |
11115-02040 |
— | ||
|
11115
|
11115
11115-15090 Gasket, Cylinder Head[12.1996 - 07.2003] 5AFE..AL50 T=1.25,(J) |
11115-15090 |
from US $46.88 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[12.1996 - 07.2003] 5AFE..AL50 |
96411-42500 |
from US $2.95 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[12.1996 - 07.2003] 5AFE..AL50 |
96411-42800 |
from US $2.89 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[12.1996 - 07.2003] 5AFE..AL50 |
90341-20002 |
from US $3.02 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[12.1996 - 07.2003] 5AFE..AL50 |
90430-20004 |
from US $0.98 |
||
|
11122
|
11122
11122-15030 Bush, Intake Valve Guide[12.1996 -] 5AFE..AL50 STD |
11122-15030 |
from US $10.26 |
||
|
11122
|
11122
11123-15030 Bush, Intake Valve Guide[12.1996 -] 5AFE..AL50 O/S 0.05 |
11123-15030 |
US $11.07 |
||
|
11126
|
11126
11122-15030 Bush, Intake Valve Guide[12.1996 -] 5AFE..AL50 STD |
11122-15030 |
from US $10.26 |
||
|
11126
|
11126
11123-15030 Bush, Intake Valve Guide[12.1996 -] 5AFE..AL50 O/S 0.05 |
11123-15030 |
US $11.07 |
||
|
11131
|
11131
11131-16040
Seat, Intake Valve
[12.1996 - 07.2003] 5AFE..AL50 STD |
11131-16040 |
— | ||
|
11131
|
11131
11132-16040 Seat, Intake Valve[12.1996 -] 5AFE..AL50 O/S 0.03 |
11132-16040 |
US $16.60 |
||
|
11135
|
11135
11135-15030 Seat, Exhaust Valve[12.1996 - 07.2003] 5AFE..AL50 STD |
11135-15030 |
US $19.04 |
||
|
11135
|
11135
11136-15030 Seat, Exhaust Valve[12.1996 -] 5AFE..AL50 O/S 0.03 |
11136-15030 |
US $14.85 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[12.1996 - 08.1999] 5AFE..AL50 |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[12.1996 - 08.1999] 5AFE..AL50 |
90311-35040 |
from US $6.27 |
||
|
11151B
|
11151B
90311-35022
Seal, Oil(For Camshaft Setting)
[08.1999 - 07.2003] 5AFE..AL50 |
90311-35022 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1999 - 07.2003] 5AFE..AL50 |
90311-35040 |
from US $6.27 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[12.1996 - 07.2003] 5AFE..AL50 |
90253-09001 |
from US $1.07 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[12.1996 - 07.2003] 5AFE..AL50 NO.1 |
90109-06080 |
from US $1.03 |
||
|
11159A
|
11159A
90109-06222 Bolt(For Head To Camshaft Bearing Cap)[12.1996 - 07.2003] 5AFE..AL50 NO.2 |
90109-06222 |
from US $1.05 |
||
|
11183
|
11183
11183-15020 Plug, Semicircular[12.1996 - 07.2003] 5AFE..AL50 |
11183-15020 |
US $11.29 |
||
|
11191A
|
11191A
11193-15010 Gasket(For Spark Plug Tube)[12.1996 - 07.2003] 5AFE..AL50 |
11193-15010 |
from US $7.68 |
||
|
11201
|
11201
11210-15071 Cover Sub-Assy, Cylinder Head[12.1996 - 07.2003] 5AFE..AL50 |
11210-15071 |
US $232.74 |
||
|
11201A
|
11201A
90176-06028 Nut, Cap(For Cylinder Head Cover)[12.1996 - 07.2003] 5AFE..AL50 |
90176-06028 |
from US $1.05 |
||
|
11201B
|
11201B
90210-06010 Washer, Seal(For Cylinder Head Cover)[12.1996 - 09.1998] 5AFE..AL50 |
90210-06010 |
from US $0.86 |
||
|
11201B
|
11201B
90210-06013 Washer, Seal(For Cylinder Head Cover)[09.1998 - 07.2003] 5AFE..AL50 |
90210-06013 |
from US $0.80 |
||
|
11213
|
11213
11213-02050
Gasket, Cylinder Head Cover
[12.1996 - 07.2003] 5AFE..AL50 (L) |
11213-02050 |
— | ||
|
11213
|
11213
11213-15070
Gasket, Cylinder Head Cover
[12.1996 - 10.1998] 5AFE..AL50 (J) |
11213-15070 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-15071 Gasket, Cylinder Head Cover[12.1996 - 10.1998] 5AFE..AL50 (J) |
11213-15071 |
from US $15.23 |
||
|
11213
|
11213
11213-15071 Gasket, Cylinder Head Cover[10.1998 - 07.2003] 5AFE..AL50 (J) |
11213-15071 |
from US $15.23 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1996 - 07.2003] 5AFE..AL50 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90080-43023
Gasket(For Oil Filler Cap)
[12.1996 - 07.2003] 5AFE..AL50 (L) |
90080-43023 |
— | ||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[12.1996 - 07.2003] 5AFE..AL50 (J) |
90430-37140 |
from US $1.17 |
||
