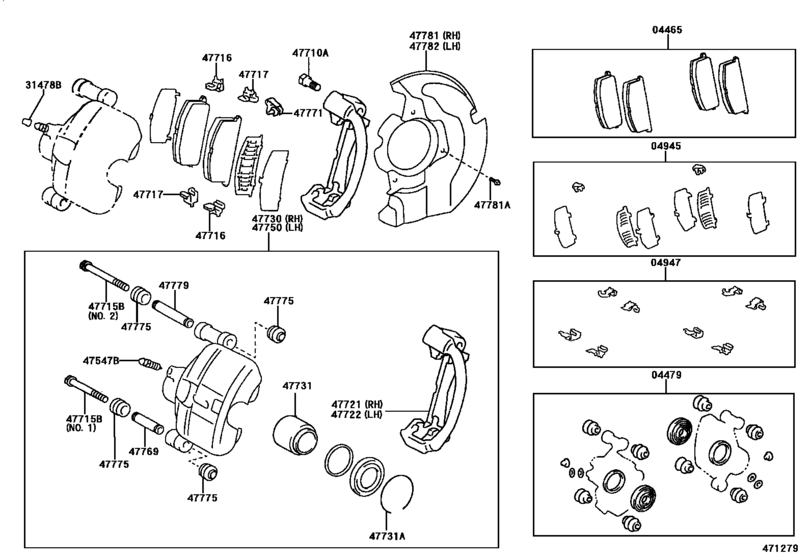

Front Disc Brake Caliper & Dust Cover ([10.1998 - ] (9810- )) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-16120 Pad Kit, Disc Brake, Front[10.1998 -] AL50 |
04465-16120 |
US $120.85 |
||
|
04465
|
04465
04465-21010 Pad Kit, Disc Brake, Front[12.1996 - 10.1998] AL50 |
04465-21010 |
US $94.35 |
||
|
04479
|
04479
04479-12091 Cylinder Kit, Disc Brake, Front[10.1998 -] AL50 |
04479-12091 |
from US $48.91 |
||
|
04479
|
04479
04479-16021 Cylinder Kit, Disc Brake, Front[12.1996 - 10.1998] AL50 |
04479-16021 |
US $43.83 |
||
|
04945
|
04945
04945-13020 Shim Kit, Anti Squeal, Front[10.1998 -] AL50 |
04945-13020 |
US $26.88 |
||
|
04945
|
04945
04945-32060 Shim Kit, Anti Squeal, Front[12.1996 - 10.1998] AL50 |
04945-32060 |
US $24.36 |
||
|
04947
|
04947
04947-20060 Fitting Kit, Disc Brake, Front[12.1996 -] AL50 |
04947-20060 |
from US $44.01 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[12.1996 -] AL50 |
31478-30010 |
from US $1.60 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[12.1996 -] AL50 |
47547-20010 |
from US $3.58 |
||
|
47710A
|
47710A
90119-12040 Bolt, Hexagon(For Front Disc Brake Caliper)[12.1996 -] AL50 *12-1.25PX25.8-19.5 |
90119-12040 |
from US $1.66 |
||
|
47715B
|
47715B
90119-09003 Bolt(For Front Disc Brake Cylinder Slide)[12.1996 -] AL50 NO.1 |
90119-09003 |
from US $3.37 |
||
|
47715B
|
47715B
90119-09004 Bolt(For Front Disc Brake Cylinder Slide)[12.1996 -] AL50 NO.2 |
90119-09004 |
from US $2.26 |
||
|
47716
|
47716
47716-20140 Plate, Pad Support, No.1(For Front Disc Brake)[12.1996 -] AL50 |
47716-20140 |
from US $5.83 |
||
|
47717
|
47717
47717-20140 Plate, Pad Support, No.2(For Front Disc Brake)[12.1996 -] AL50 |
47717-20140 |
from US $6.03 |
||
|
47721
|
47721
47721-12120 Mounting, Front Disc Brake Cylinder, Rh[10.1998 -] AL50 |
47721-12120 |
US $173.26 |
||
|
47721
|
47721
47721-16010 Mounting, Front Disc Brake Cylinder, Rh[12.1996 - 10.1998] AL50 |
47721-16010 |
US $88.82 |
||
|
47722
|
47722
47721-12120 Mounting, Front Disc Brake Cylinder, Rh[10.1998 -] AL50 |
47721-12120 |
US $173.26 |
||
|
47722
|
47722
47721-16010 Mounting, Front Disc Brake Cylinder, Rh[12.1996 - 10.1998] AL50 |
47721-16010 |
US $88.82 |
||
|
47730
|
47730
47730-10101 Cylinder Assy, Front Disc Brake, Rh[10.1998 -] AL50 |
47730-10101 |
US $601.33 |
||
|
47730
|
47730
47730-16081 Cylinder Assy, Front Disc Brake, Rh[12.1996 - 10.1998] AL50 |
47730-16081 |
US $563.47 |
||
|
47731
|
47731
47731-12150 Piston, Front Disc Brake[10.1998 -] AL50 |
47731-12150 |
US $83.16 |
||
|
47731
|
47731
47731-16020 Piston, Front Disc Brake[12.1996 - 10.1998] AL50 |
47731-16020 |
US $40.33 |
||
|
47731A
|
47731A
90522-61001 Ring, Set(For Front Disc Brake Piston)[12.1996 -] AL50 |
90522-61001 |
US $0.93 |
||
|
47750
|
47750
47750-10101 Cylinder Assy, Disc Brake, Lh[10.1998 -] AL50 |
47750-10101 |
US $601.33 |
||
|
47750
|
47750
47750-16081 Cylinder Assy, Disc Brake, Lh[12.1996 - 10.1998] AL50 |
47750-16081 |
US $563.47 |
||
|
47769
|
47769
47769-12030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[12.1996 -] AL50 |
47769-12030 |
from US $8.81 |
||
|
47771
|
47771
47771-12050 Plate, Pad Wear Indicator, No.1[10.1998 -] AL50 |
47771-12050 |
US $3.16 |
||
|
47771
|
47771
47771-32010 Plate, Pad Wear Indicator, No.1[12.1996 - 10.1998] AL50 |
47771-32010 |
US $4.48 |
||
|
47775
|
47775
47775-32010 Boot, Bush Dust(For Front Disc Brake)[12.1996 -] AL50 |
47775-32010 |
from US $6.06 |
||
|
47779
|
47779
47779-16010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[12.1996 -] AL50 |
47779-16010 |
from US $6.94 |
||
|
47781
|
47781
47781-0A010
Cover, Disc Brake Dust, Front Rh
[12.1996 -] AL50..GEN |
47781-0A010 |
— | ||
|
47781A
|
47781A
90109-06134 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[12.1996 -] AL50 |
90109-06134 |
US $2.15 |
||
|
47782
|
47782
47782-0A010
Cover, Disc Brake Dust, Front Lh
[12.1996 -] AL50..GEN |
47782-0A010 |
— |
