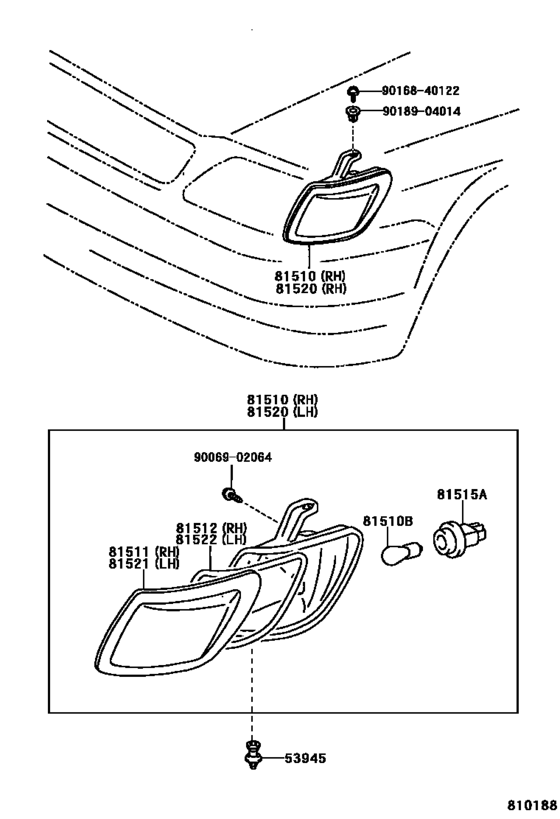

Front Turn Signal Lamp ([12.1996 - 10.1999] (9612-9910) ; (9910-0104)IDN) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53945
|
53945
53945-16010
Bracket, Front End Panel, No.3
[12.1996 -] AL50 |
53945-16010 |
— | ||
|
81510
|
81510
81510-0A010
Lamp Assy, Front Turn Signal, Rh
[12.1996 - 10.1999] AL50 |
81510-0A010 |
— | ||
|
81510
|
81510
81510-0A030
Lamp Assy, Front Turn Signal, Rh
[10.1999 - 04.2001] AL50..GEN |
81510-0A030 |
— | ||
|
81510B
|
81510B
90080-81052
Bulb (For Front Turn Signal Lamp)
[12.1996 - 04.2001] AL50..GEN 12V 21W |
90080-81052 |
— | ||
|
81511
|
81511
81511-0A010
Lens, Front Turn Signal Lamp, Rh
[12.1996 - 10.1999] AL50 |
81511-0A010 |
— | ||
|
81512
|
81512
81512-0A010
Gasket, Front Turn Signal Lamp Lens, Rh
[12.1996 - 10.1999] AL50 |
81512-0A010 |
— | ||
|
81515A
|
81515A
90069-81001
Plug Assy, Front Turn Signal Lamp
[12.1996 - 04.2001] AL50..GEN |
90069-81001 |
— | ||
|
81520
|
81520
81520-0A010
Lamp Assy, Front Turn Signal, Lh
[12.1996 - 10.1999] AL50 |
81520-0A010 |
— | ||
|
81520
|
81520
81520-0A030
Lamp Assy, Front Turn Signal, Lh
[10.1999 - 04.2001] AL50..GEN |
81520-0A030 |
— | ||
|
81521
|
81521
81521-0A010
Lens, Front Turn Signal Lamp, Lh
[12.1996 - 10.1999] AL50 |
81521-0A010 |
— | ||
|
81522
|
81522
81512-0A010
Gasket, Front Turn Signal Lamp Lens, Rh
[12.1996 - 10.1999] AL50 |
81512-0A010 |
— | ||
|
9006902064
|
9006902064
90069-02064
New Genuine Part
|
90069-02064 |
— | ||
|
9016840122
|
9016840122
90168-40122 SCREW TAPPING |
90168-40122 |
US $2.15 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.98 |
