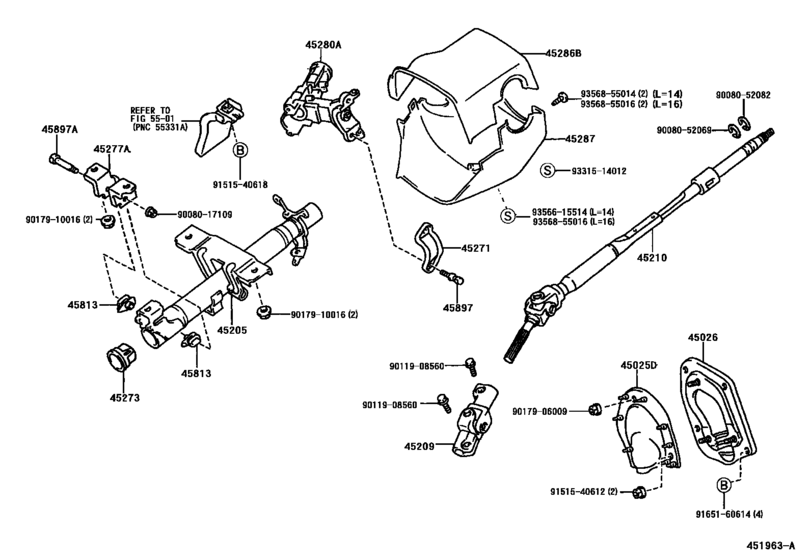

Steering Column & Shaft ([10.1999 - ] W(POWER STEERING) (9910- )GEN ; (0003- )IDN) Diagram Toyota SOLUNA
- Year
- 1996 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.1996
- To
- 12.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-10080
Cover Sub-Assy, Steering Column Hole, No.1
[12.1996 - 10.1999] AL50..SLI,XLI;AL50..5F..GLI |
45025-10080 |
— | ||
|
45025D
|
45025D
45025-16130
Cover Sub-Assy, Steering Column Hole, No.1
[10.1999 -] AL50..GLI;AL50..5F..XLI..GEN W(POWER STEERING) |
45025-16130 |
— | ||
|
45026
|
45026
45026-10030
Cover Sub-Assy, Steering Column Hole, No.2
[12.1996 - 10.1999] AL50..SLI,XLI;AL50..5F..GLI |
45026-10030 |
— | ||
|
45026
|
45026
45026-16060
Cover Sub-Assy, Steering Column Hole, No.2
[10.1999 -] AL50..GLI;AL50..5F..XLI..GEN W(POWER STEERING) |
45026-16060 |
— | ||
|
45205
|
45205
45205-0A010
Tube Sub-Assy, Steering Column
[12.1996 - 10.1999] AL50 |
45205-0A010 |
— | ||
|
45205
|
45205
45205-0A020
Tube Sub-Assy, Steering Column
[10.1999 -] AL50 |
45205-0A020 |
— | ||
|
45209
|
45209
45209-12060
Yoke Sub-Assy, Steering Sliding
[12.1996 - 10.1999] AL50..SLI,XLI;AL50..5F..GLI |
45209-12060 |
— | ||
|
45209
|
45209
45209-16060 Yoke Sub-Assy, Steering SlidingSTEERING SLIDING [10.1999 -] AL50..GLI..GEN;AL50..5F..XLI..GEN W(POWER STEERING) |
45209-16060 |
US $126.67 |
||
|
45210
|
45210
45210-0A010
Shaft Assy, Steering Main
[12.1996 - 10.1999] AL50..SLI,XLI;AL50..5F..GLI |
45210-0A010 |
— | ||
|
45210
|
45210
45210-0A030
Shaft Assy, Steering Main
[10.1999 - 10.2000] AL50..(SLI,XLI)..GEN |
45210-0A030 |
— | ||
|
45210
|
45210
45210-0A040
Shaft Assy, Steering Main
[10.1999 -] AL50..GLI..GEN;AL50..5F..XLI..GEN W(POWER STEERING) |
45210-0A040 |
— | ||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[12.1996 - 07.1997] AL50 |
45271-16020 |
US $9.32 |
||
|
45271
|
45271
45271-16040 Clamp, Steering Column, UpperSTEERING COLUMN, UPPER [07.1997 - 10.1999] AL50 |
45271-16040 |
US $10.05 |
||
|
45273
|
45273
45273-0A010
Bush, Steering Main Shaft
[12.1996 -] AL50 |
45273-0A010 |
— | ||
|
45277A
|
45277A
45277-0A010
Support, Tilt Steering
[12.1996 -] AL50 |
45277-0A010 |
— | ||
|
45280A
|
45280A
45280-12321 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [10.1999 -] AL50..SLI,XLI; AL50..(GLI,XLI)..GEN SINGAPORE SPEC |
45280-12321 |
US $208.21 |
||
| replacement | |||||
|
45280A
|
45280A
45280-12341 Bracket Assy, Steering Column, Upper[10.1999 -] AL50..SLI,XLI; AL50..(GLI,XLI)..GEN SINGAPORE SPEC |
45280-12341 |
from US $187.51 |
||
|
45280A
|
45280A
45280-16110 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [12.1996 - 10.1999] AL50 |
45280-16110 |
US $219.86 |
||
| replacement | |||||
|
45280A
|
45280A
45280-16090 Bracket Assy, Steering Column, Upper[12.1996 - 10.1999] AL50 |
45280-16090 |
US $221.31 |
||
|
45286B
|
45286B
45286-0A010-B0
Cover, Steering Column, Upr
[12.1996 - 10.1999] AL50 SHADOW GRAY,TRIM1# |
45286-0A010-B0 |
— | ||
|
45286B
|
45286B
45286-0A030-B0
Cover, Steering Column, Upr
[10.1999 - 03.2002] AL50 BLUISH GRAY,TRIM1# |
45286-0A030-B0 |
— | ||
|
45287
|
45287
45287-0A010-B0
Cover, Steering Column, Lwr
[12.1996 - 10.1999] AL50 SHADOW GRAY,TRIM1# |
45287-0A010-B0 |
— | ||
|
45287
|
45287
45287-0A030-B0
Cover, Steering Column, Lwr
[10.1999 - 03.2002] AL50 BLUISH GRAY,TRIM1# |
45287-0A030-B0 |
— | ||
|
45813
|
45813
45813-0A010
Collar, Tilt Steering Support, No.1
[12.1996 -] AL50 |
45813-0A010 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[12.1996 -] AL50 |
45897-12020 |
from US $2.63 |
||
|
45897A
|
45897A
45897-0A010
Bolt, Tilt Steering Pawl Set
[12.1996 -] AL50 |
45897-0A010 |
— | ||
|
9008017109
|
9008017109
90080-17109
New Genuine Part
|
90080-17109 |
— | ||
|
9008052069
|
9008052069
90080-52069
New Genuine Part
|
90080-52069 |
— | ||
|
9008052082
|
9008052082
90080-52082
New Genuine Part
|
90080-52082 |
— | ||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $4.47 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9151540612
|
9151540612
91515-40612 New Genuine Part |
91515-40612 |
US $1.46 |
||
| replacement | |||||
|
9151540612
|
9151540612
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9151540618
|
9151540618
91515-40618 New Genuine Part |
91515-40618 |
US $1.46 |
||
| replacement | |||||
|
9151540618
|
9151540618
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9356615514
|
9356615514
93566-15514
Direct
|
93566-15514 |
— | ||
| replacement | |||||
|
9356615514
|
9356615514
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
