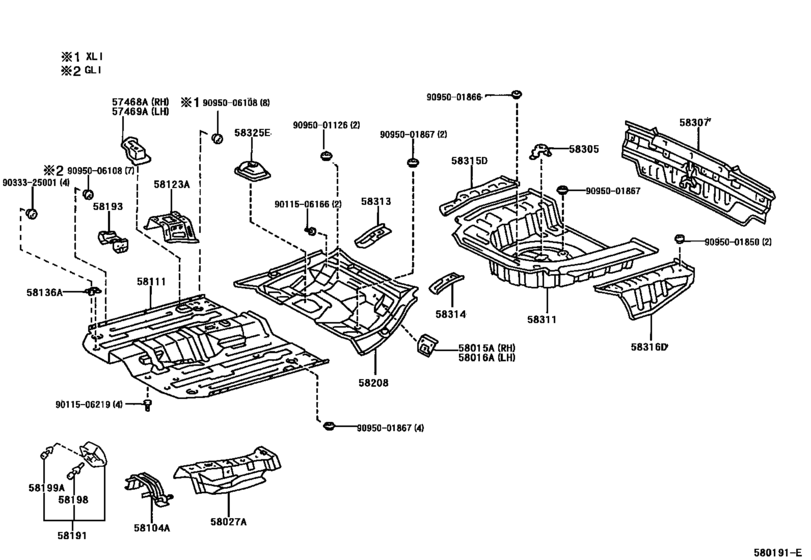

Floor Pan & Lower Back Panel ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57468A
|
57468A
57468-10030 Bracket, Front Seat, Outside, Rear Rh[12.1996 -] AL50 |
57468-10030 |
US $26.50 |
||
|
57469A
|
57469A
57469-10030 Bracket, Front Seat, Outside, Rear Lh[12.1996 -] AL50 |
57469-10030 |
US $26.50 |
||
|
58027A
|
58027A
58027-16091 Reinforce Sub-Assy, Seat Belt Anchor[12.1996 -] AL50 |
58027-16091 |
US $164.53 |
||
|
58104A
|
58104A
58104-16020 Bracket Sub-Assy, Catalytic Converter Support[12.1996 -] AL50 |
58104-16020 |
US $46.74 |
||
|
58111
|
58111
58111-0A010
Pan, Front Floor
[12.1996 -] AL50 |
58111-0A010 |
— | ||
|
58123A
|
58123A
58123-10050 Support, Shift & Select Lever[12.1996 - 10.1999] AL50 |
58123-10050 |
US $63.77 |
||
|
58136A
|
58136A
58136-12030 Cover, Front Floor Hole[12.1996 -] AL50 |
58136-12030 |
US $3.35 |
||
|
58193
|
58193
58193-16050 Bracket, Instrument Panel Brace MountingINSTRUMENT PANEL BRACE MOUNTING [12.1996 - 10.1999] AL50 |
58193-16050 |
US $28.39 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[12.1996 -] AL50 |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-0A010
Panel Sub-Assy, Body Lower Back
[12.1996 -] AL50 |
58307-0A010 |
— | ||
|
58311
|
58311
58311-0A010
Pan, Rear Floor
[12.1996 -] AL50 |
58311-0A010 |
— | ||
|
58313
|
58313
58313-16030 Panel, Rear Floor Side, Rh[12.1996 -] AL50 |
58313-16030 |
US $24.32 |
||
|
58314
|
58314
58314-16090 Panel, Rear Floor Side, Lh[12.1996 -] AL50 |
58314-16090 |
US $24.32 |
||
|
58315D
|
58315D
58315-0A010
Extension, Rear Floor Pan, Rh
[12.1996 -] AL50 |
58315-0A010 |
— | ||
|
58316D
|
58316D
58316-0A010
Extension, Rear Floor Pan, Lh
[12.1996 -] AL50 |
58316-0A010 |
— | ||
|
58325E
|
58325E
58325-0A020
Cover, Rear Floor Service Hole
[10.1998 -] AL50..IDN |
58325-0A020 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.94 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9095001850
|
9095001850
90950-01850 PLUG HOLE |
90950-01850 |
US $0.72 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001867
|
9095001867
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.42 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.37 |
