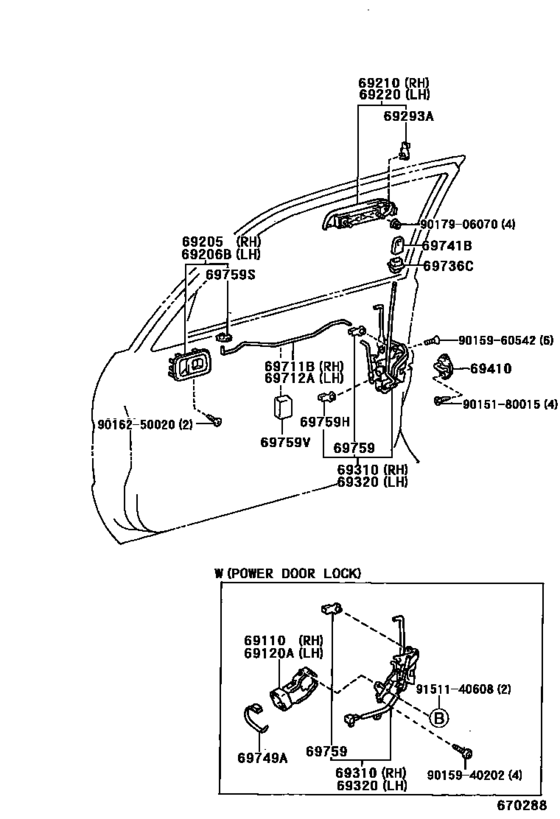

Front Door Lock & Handle ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-0B010-B0
Handle Sub-Assy, Front Door Inside, Rh
[03.2000 -] AL50..IDN BLUISH GRAY,TRIM1# |
69205-0B010-B0 |
— | ||
|
69206B
|
69206B
69206-0B010-B0
Handle Sub-Assy, Rear Door Inside, Rh
[03.2000 -] AL50..IDN BLUISH GRAY,TRIM1# |
69206-0B010-B0 |
— | ||
|
69210
|
69210
69210-0A010 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 11.2001] AL50..SLI,XLI |
69210-0A010 |
US $6.03 |
||
|
69220
|
69220
69220-0A010 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 11.2001] AL50..SLI,XLI |
69220-0A010 |
US $6.03 |
||
|
69293A
|
69293A
69293-0A010
Snap, Front Door Outside Handle
[12.1996 -] AL50 LH |
69293-0A010 |
— | ||
|
69293A
|
69293A
69293-0A020
Snap, Front Door Outside Handle
[12.1996 -] AL50 RH |
69293-0A020 |
— | ||
|
69310
|
69310
69310-0A010
Lock Assy, Front Door, Rh
[12.1996 - 11.2001] AL50..SLI,XLI |
69310-0A010 |
— | ||
|
69320
|
69320
69320-0A010
Lock Assy, Front Door, Lh
[12.1996 - 11.2001] AL50..SLI,XLI |
69320-0A010 |
— | ||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[12.1996 -] AL50 |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[12.1996 -] AL50 |
69410-AA020 |
US $50.37 |
||
|
69711B
|
69711B
69711-0A010
Link, Front Door Lock Remote Control, Rh
[12.1996 -] AL50 |
69711-0A010 |
— | ||
|
69712A
|
69712A
69712-0A010
Link, Front Door Lock Remote Control, Lh
[12.1996 -] AL50 |
69712-0A010 |
— | ||
|
69736C
|
69736C
69736-16040
Guide, Front Door Locking Link
[12.1996 -] AL50 |
69736-16040 |
— | ||
|
69741B
|
69741B
69741-12040-B2 Knob, Front Door Lock Control[12.1996 -] AL50 BLUISH GRAY,TRIM1# |
69741-12040-B2 |
US $5.24 |
||
| replacement | |||||
|
69741B
|
69741B
69741-12040-B3 Knob, Front Door Lock Control[12.1996 -] AL50 BLUISH GRAY,TRIM1# |
69741-12040-B3 |
from US $4.30 |
||
|
69759
|
69759
69759-0A040
Snap, Door Lock Control Link, No.1
[12.1996 -] AL50 RH,OUTER |
69759-0A040 |
— | ||
|
69759
|
69759
69759-0A050
Snap, Door Lock Control Link, No.1
[12.1996 -] AL50 LH,OUTER |
69759-0A050 |
— | ||
|
69759
|
69759
69759-0A060
Snap, Door Lock Control Link, No.1
[12.1996 -] AL50 LH,INNER |
69759-0A060 |
— | ||
|
69759
|
69759
69759-0A070
Snap, Door Lock Control Link, No.1
[12.1996 -] AL50 RH,INNER |
69759-0A070 |
— | ||
|
69759H
|
69759H
69759-0A080
Snap, Door Lock Control Link, No.2
[12.1996 -] AL50 LH |
69759-0A080 |
— | ||
|
69759H
|
69759H
69759-0A090
Snap, Door Lock Control Link, No.2
[12.1996 -] AL50 RH |
69759-0A090 |
— | ||
|
69759S
|
69759S
69759-0B010
Snap, Rear Door Lock Control Link
[10.1998 -] AL50..IDN LH |
69759-0B010 |
— | ||
|
69759S
|
69759S
69759-0B120
Snap, Rear Door Lock Control Link
[10.1998 -] AL50..IDN RH |
69759-0B120 |
— | ||
|
69759V
|
69759V
69759-16070 Silencer, Front Door Lock LinkFRONT DOOR LOCK LINK [10.1999 -] AL50 |
69759-16070 |
US $3.93 |
||
|
9015180015
|
9015180015
90151-80015 SCREW CROSSRECESS |
90151-80015 |
US $1.46 |
||
| replacement | |||||
|
9015180015
|
9015180015
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9015960542
|
9015960542
90159-60542
SCREW WWASHER
|
90159-60542 |
— | ||
| replacement | |||||
|
9015960542
|
9015960542
90159-60349 SCREW WWASHER |
90159-60349 |
US $1.25 |
||
|
9016250020
|
9016250020
90162-50020 SCREW, OVAL COUNTERS |
90162-50020 |
US $0.44 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9151140608
|
9151140608
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
