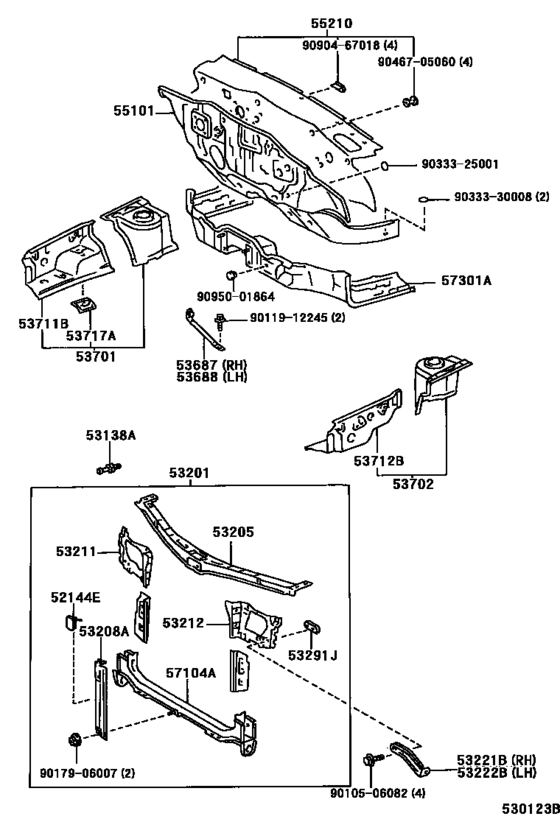

Front Fender Apron & Dash Panel ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52144E
|
52144E
52144-16160 Stay, Front Bumper, CenterFRONT BUMPER, CENTER [10.1998 -] AL50 |
52144-16160 |
US $1.89 |
||
|
53138A
|
53138A
53138-16030 Retainer, Headlamp Door, InnerHEADLAMP DOOR, INNER [12.1996 -] AL50 |
53138-16030 |
US $4.22 |
||
|
53201
|
53201
53201-0A010
Support Sub-Assy, Radiator
[03.2000 - 04.2001] AL50..IDN |
53201-0A010 |
— | ||
|
53201
|
53201
53201-0A020
Support Sub-Assy, Radiator
[04.2001 -] AL50 |
53201-0A020 |
— | ||
|
53205
|
53205
53205-0A010
Support Sub-Assy, Radiator, Upper
[12.1996 -] AL50 |
53205-0A010 |
— | ||
|
53208A
|
53208A
53215-0A010
Support Sub-Assy, Hood Lock
[03.2000 - 04.2001] AL50..IDN |
53215-0A010 |
— | ||
|
53208A
|
53208A
53215-0A020
Support Sub-Assy, Hood Lock
[04.2001 -] AL50 |
53215-0A020 |
— | ||
|
53211
|
53211
53211-0A010
Support, Radiator, Rh
[12.1996 -] AL50 |
53211-0A010 |
— | ||
|
53212
|
53212
53212-0A010
Support, Radiator, Lh
[12.1996 -] AL50 |
53212-0A010 |
— | ||
|
53221B
|
53221B
53221-0A010
Brace, Radiator Support Apron, Rh
[12.1996 -] AL50 |
53221-0A010 |
— | ||
|
53222B
|
53222B
53222-0A010
Brace, Radiator Support Apron, Lh
[12.1996 -] AL50 |
53222-0A010 |
— | ||
|
53291J
|
53291J
53291-0A010
Seal, Radiator Support
[12.1996 -] AL50 |
53291-0A010 |
— | ||
|
53687
|
53687
53687-0A010
Brace, Front Suspension Lower To Steering Member, Rh
[12.1996 -] AL50 |
53687-0A010 |
— | ||
|
53688
|
53688
53687-0A010
Brace, Front Suspension Lower To Steering Member, Rh
[12.1996 -] AL50 |
53687-0A010 |
— | ||
|
53701
|
53701
53701-0A010
Apron Sub-Assy, Front Fender, Rh
[12.1996 - 02.1999] AL50..ATM..GLI |
53701-0A010 |
— | ||
|
53701
|
53701
53701-0A030
Apron Sub-Assy, Front Fender, Rh
[02.1999 - 04.1999] AL50..4FC..GLI |
53701-0A030 |
— | ||
|
53702
|
53702
53702-0A030
Apron Sub-Assy, Front Fender, Lh
[03.2000 -] AL50..IDN |
53702-0A030 |
— | ||
|
53711B
|
53711B
53711-0A010
Apron, Front Fender, Front Rh
[12.1996 - 02.1999] AL50..ATM..GLI |
53711-0A010 |
— | ||
| replacement | |||||
|
53711B
|
53711B
53711-0A030
Apron, Front Fender, Front Rh
[12.1996 - 02.1999] AL50..ATM..GLI |
53711-0A030 |
— | ||
|
53711B
|
53711B
53711-0A030
Apron, Front Fender, Front Rh
[02.1999 -] AL50 |
53711-0A030 |
— | ||
|
53712B
|
53712B
53712-0A030
Apron, Front Fender, Front Lh
[03.2000 -] AL50..IDN |
53712-0A030 |
— | ||
|
53717A
|
53717A
53717-0A010
Plate, Fender Apron
[12.1996 -] AL50 |
53717-0A010 |
— | ||
|
55101
|
55101
55101-0A050
Panel Sub-Assy, Dash
[10.1998 -] AL50..5F..IDN |
55101-0A050 |
— | ||
|
55210
|
55210
55210-0A020
Insulator Assy, Dash Panel
[10.1998 -] AL50..IDN |
55210-0A020 |
— | ||
|
57104A
|
57104A
57104-0A900
Member Sub-Assy, Front Cross
[12.1996 -] AL50 |
57104-0A900 |
— | ||
|
57301A
|
57301A
57301-0A010
Member Sub-Assy, Steering Gear Box Support
[12.1996 -] AL50 |
57301-0A010 |
— | ||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011912245
|
9011912245
90119-12245
New Genuine Part
|
90119-12245 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9046705060
|
9046705060
90467-05060 New Genuine Part |
90467-05060 |
US $3.20 |
||
|
9090467018
|
9090467018
90904-67018 New Genuine Part |
90904-67018 |
US $4.22 |
||
|
9095001864
|
9095001864
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.79 |
||
