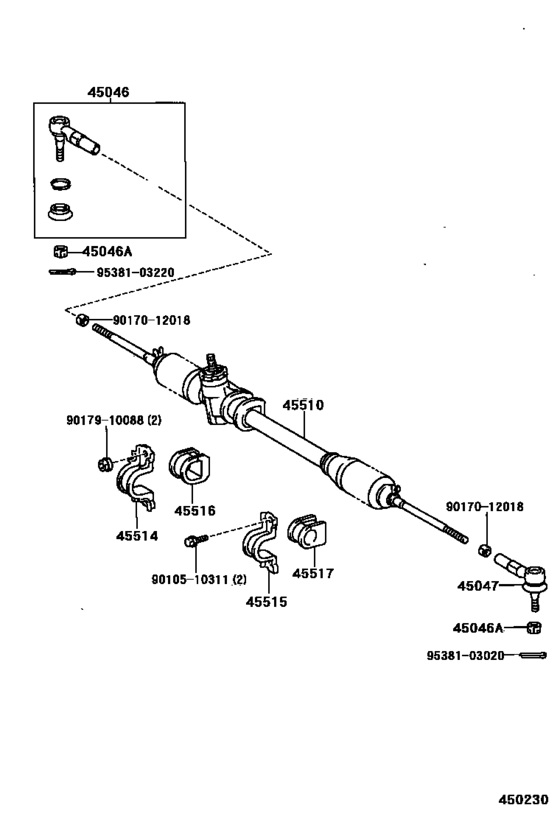

Front Steering Gear & Link ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09140
End Sub-Assy, Tie Rod, Rh
[09.2000 - 10.2000] AL50..GLI;AL50..5F..XLI W(POWER STEERING) |
45046-09140 |
— | ||
|
45046
|
45046
45046-19216 End Sub-Assy, Tie Rod, Rh[04.1998 - 10.1999] AL50..GLI |
45046-19216 |
US $49.62 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.1996 -] AL50 |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-09140
End Sub-Assy, Tie Rod, Rh
[09.2000 - 10.2000] AL50..GLI;AL50..5F..XLI W(POWER STEERING) |
45046-09140 |
— | ||
|
45047
|
45047
45046-19216 End Sub-Assy, Tie Rod, Rh[04.1998 - 10.1999] AL50..GLI |
45046-19216 |
US $49.62 |
||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[04.1998 - 10.1999] AL50..GLI |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45515-16060
Bracket, Steering Rack Housing, No.2
[04.1998 - 10.1999] AL50..GLI |
45515-16060 |
— | ||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[04.1998 - 10.1999] AL50..GLI |
45516-16060 |
from US $23.69 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[04.1998 - 10.1999] AL50..GLI |
45517-10070 |
from US $19.49 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.64 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
|
9538103220
|
9538103220
95381-03220 New Genuine Part |
95381-03220 |
US $0.87 |
