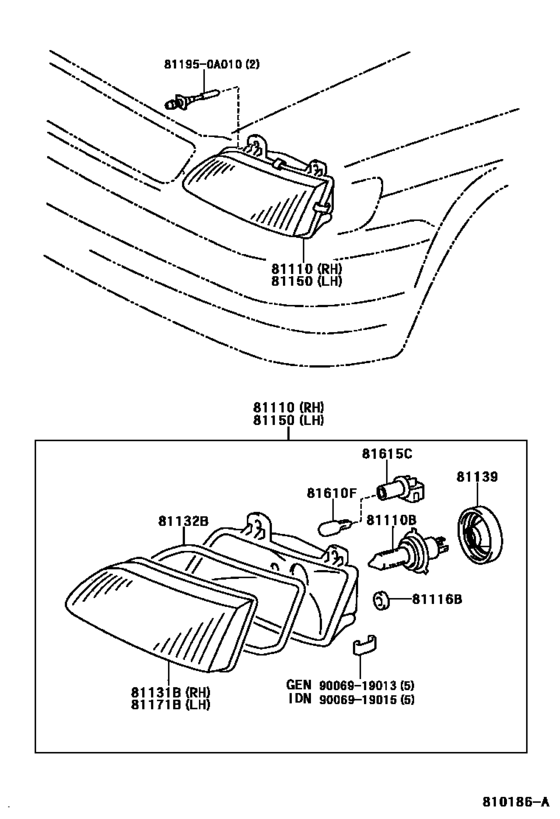

Headlamp ([10.1999 - 04.2001] (9612-9910) ; (9910-0104)IDN) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-0A020
Headlamp Assy, Rh
[03.2000 - 04.2001] AL50..IDN |
81110-0A020 |
— | ||
|
81110
|
81110
81110-0A030
Headlamp Assy, Rh
[04.2001 -] AL50 |
81110-0A030 |
— | ||
|
81110B
|
81110B
90080-81055
Bulb(For Headlamp, No.1)
[04.2001 -] AL50 12V 60/55W |
90080-81055 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [04.2001 -] AL50 12V 60/55W |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-22003
Bulb(For Headlamp, No.1)
[03.2000 - 04.2001] AL50..IDN 12V 60/55W,*HAL *WH |
90981-22003 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [03.2000 - 04.2001] AL50..IDN 12V 60/55W,*HAL *WH |
90981-13058 |
from US $33.60 |
||
|
81116B
|
81116B
81116-0A020
Head Lamp Bearing
[03.2000 - 04.2001] AL50..IDN |
81116-0A020 |
— | ||
|
81131B
|
81131B
81131-0A020
Head Lamp Lens, Rh
[03.2000 - 04.2001] AL50..IDN |
81131-0A020 |
— | ||
|
81132B
|
81132B
81132-0A020
Gasket, Headlamp Lens
[03.2000 - 04.2001] AL50..IDN |
81132-0A020 |
— | ||
|
81139
|
81139
81139-0A010
Cover, Headlamp Socket
[04.2001 -] AL50 |
81139-0A010 |
— | ||
|
81139
|
81139
81139-0A020
Cover, Headlamp Socket
[03.2000 - 04.2001] AL50..IDN |
81139-0A020 |
— | ||
|
81150
|
81150
81150-0A020
Headlamp Assy, Lh
[03.2000 - 04.2001] AL50..IDN |
81150-0A020 |
— | ||
|
81150
|
81150
81150-0A030
Headlamp Assy, Lh
[04.2001 -] AL50 |
81150-0A030 |
— | ||
|
81171B
|
81171B
81171-0A020
Head Lamp Lens, Lh
[03.2000 - 04.2001] AL50..IDN |
81171-0A020 |
— | ||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[04.2001 -] AL50 12V 5.0W |
90080-81053 |
US $1.01 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[03.2000 - 04.2001] AL50..IDN 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[03.2000 - 04.2001] AL50..IDN 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615C
|
81615C
81138-0A010
Socket & Wire, Clearance Lamp
[12.1996 -] AL50 |
81138-0A010 |
— | ||
|
811950A010
|
811950A010
81195-0A010
Screw, Headlamp
|
81195-0A010 |
— | ||
|
9006919013
|
9006919013
90069-19013
New Genuine Part
|
90069-19013 |
— | ||
|
9006919015
|
9006919015
90069-19015
New Genuine Part
|
90069-19015 |
— | ||
