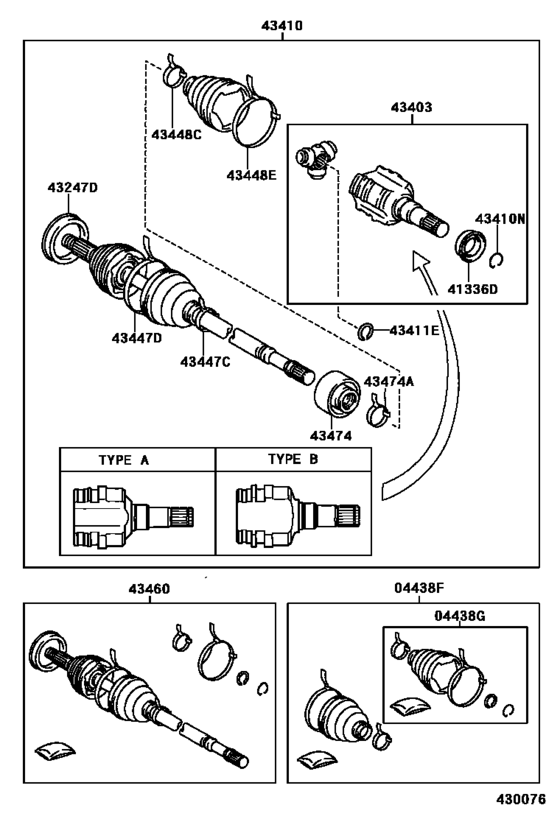

Front Drive Shaft ([12.1996 - ] RH (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-16080
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[12.1996 - 07.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16080 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-16020 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1996 - 07.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
04428-16020 |
US $145.60 |
||
|
04438F
|
04438F
04438-16081
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.1999 -] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16081 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-16020 Boot Kit, Front Drive Shaft, In & Outboard, Rh[07.1999 -] AL50 TYPE A:REFER TO ILLUSTRATION |
04428-16020 |
US $145.60 |
||
|
04438G
|
04438G
04438-16070 Boot Kit, Front Drive Shaft Inboard Joint[12.1996 - 07.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16070 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-16150 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1996 - 07.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16150 |
US $90.27 |
||
|
04438G
|
04438G
04438-16071 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.1999 -] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16071 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-16150 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.1999 -] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16150 |
US $90.27 |
||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[12.1996 - 10.1999] AL50..ATM;AL50..5F..SLI TYPE A:REFER TO ILLUSTRATION |
41336-12010 |
from US $1.46 |
||
|
43247D
|
43247D
43247-16040
Deflector, Front Wheel Bearing Dust, No.2
[10.1999 -] AL50..SLI,XLI;AL50..GLI..IDN TYPE A:REFER TO ILLUSTRATION |
43247-16040 |
— | ||
|
43403
|
43403
43403-0A010
Joint Set, Front Axle Inboard, Rh
[12.1996 - 05.2000] AL50 TYPE A:REFER TO ILLUSTRATION |
43403-0A010 |
— | ||
| replacements | |||||
|
43403
|
43403
04438-16150 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1996 - 05.2000] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16150 |
US $90.27 |
||
|
43403
|
43403
43403-0A011
Joint Assy, Front Drive Inboard, Rh
[12.1996 - 05.2000] AL50 TYPE A:REFER TO ILLUSTRATION |
43403-0A011 |
— | ||
|
43403
|
43403
43403-0A011
Joint Assy, Front Drive Inboard, Rh
[05.2000 -] AL50 TYPE A:REFER TO ILLUSTRATION |
43403-0A011 |
— | ||
|
43410
|
43410
43410-0A011
Shaft Assy, Front Drive, Rh
[07.1998 - 10.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
43410-0A011 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-0A012
Shaft Assy, Front Drive, Rh
[07.1998 - 10.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
43410-0A012 |
— | ||
|
43410
|
43410
43410-0A012
Shaft Assy, Front Drive, Rh
[05.2000 -] AL50..SLI,XLI;AL50..GLI..IDN |
43410-0A012 |
— | ||
|
43410N
|
43410N
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[12.1996 - 10.1999] AL50..ATM TYPE A:REFER TO ILLUSTRATION |
90521-26004 |
from US $1.79 |
||
|
43411E
|
43411E
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[12.1996 -] AL50 TYPE A:REFER TO ILLUSTRATION |
90520-22001 |
US $1.02 |
||
|
43447C
|
43447C
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[12.1996 -] AL50 ID=32.5,TYPE A:REFER TO ILLUSTRATION |
42345-16010 |
US $1.88 |
||
|
43447C
|
43447C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[10.1999 -] AL50..IDN;AL50..5F..GLI..GEN ID=32.7 |
90949-01078 |
US $0.96 |
||
|
43447D
|
43447D
42345-16020 Clamp (For Rear Drive Shaft Outboard Joint Boot)[12.1996 -] AL50 ID=88.0,TYPE A:REFER TO ILLUSTRATION |
42345-16020 |
US $3.79 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[03.2000 -] AL50..IDN |
90949-01078 |
US $0.96 |
||
|
43448E
|
43448E
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[10.1999 -] AL50..IDN;AL50..5F..GLI..GEN |
90949-01146 |
US $4.40 |
||
|
43460
|
43460
43460-09221
Shaft Assy, Front Drive Outboard Joint, Rh
[07.1998 - 10.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
43460-09221 |
— | ||
| replacements | |||||
|
43460
|
43460
04438-16150 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.1998 - 10.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
04438-16150 |
US $90.27 |
||
|
43460
|
43460
43460-09222
Shaft Assy, Front Drive Outboard Joint, Rh
[07.1998 - 10.1999] AL50 TYPE A:REFER TO ILLUSTRATION |
43460-09222 |
— | ||
|
43460
|
43460
43460-09222
Shaft Assy, Front Drive Outboard Joint, Rh
[05.2000 -] AL50..SLI,XLI;AL50..GLI..IDN |
43460-09222 |
— | ||
|
43474
|
43474
43474-20050 Damper, Drive Shaft[12.1996 -] AL50 TYPE A:REFER TO ILLUSTRATION |
43474-20050 |
US $26.94 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[10.2002 -] AL50..IDN;AL50..5F..GLI..GEN |
42345-14010 |
US $12.54 |
||
|
43474A
|
43474A
42345-16030 Clamp, Rear Drive Shaft Boot[12.1996 -] AL50 TYPE A:REFER TO ILLUSTRATION |
42345-16030 |
from US $3.65 |
||
