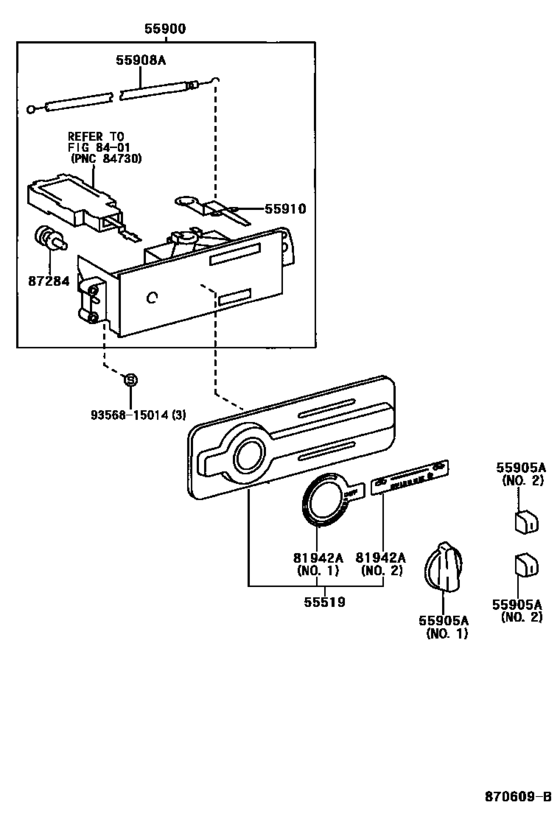

Heating & Air Conditioning - Control & Air Duct ([12.1996 - ] CONTROL (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55519
|
55519
55519-0A010
Plate, Heater Control Name
[12.1996 -] AL50 |
55519-0A010 |
— | ||
|
55900
|
55900
55900-0A010
Control Assy, Air Conditioner
[12.1996 -] AL50 |
55900-0A010 |
— | ||
|
55905A
|
55905A
55905-0A010
Knob, Heater Control
[12.1996 -] AL50 NO.1 |
55905-0A010 |
— | ||
|
55905A
|
55905A
55905-0A020
Knob, Heater Control
[12.1996 -] AL50 NO.2 |
55905-0A020 |
— | ||
|
55908A
|
55908A
55908-0A010
Cable Sub-Assy, Air Inlet Damper Control
[12.1996 -] AL50 |
55908-0A010 |
— | ||
|
55910
|
55910
55910-0A010
Control Assy, Heater Or Boost Ventilator
[12.1996 -] AL50 |
55910-0A010 |
— | ||
|
81942A
|
81942A
81942-0A010
Sheet, Heater Control Name, No.1
[12.1996 -] AL50 NO.1 |
81942-0A010 |
— | ||
|
81942A
|
81942A
81942-0A020
Sheet, Heater Control Name, No.1
[12.1996 -] AL50 NO.2 |
81942-0A020 |
— | ||
|
87284
|
87284
88032-0A010
Resistor Sub-Assy, Variable
[12.1996 -] AL50 |
88032-0A010 |
— | ||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
