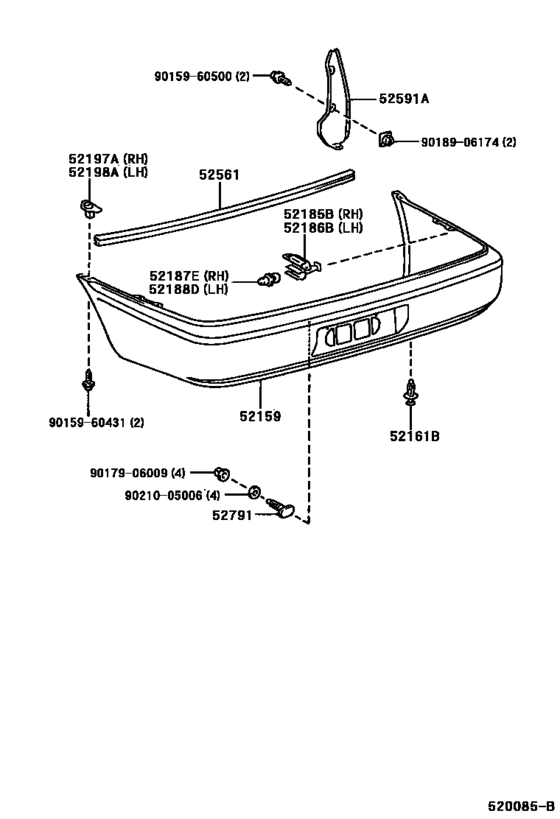

Rear Bumper & Bumper Stay ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- AL50
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- From
- 03.2000
- To
- 07.2003
- Gear Shift Type
- 5F
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52159
|
52159
52159-0A030
Cover, Rear Bumper
[03.2000 - 04.2001] AL50..IDN |
52159-0A030 |
— | ||
|
52159
|
52159
52159-0A960
Cover, Rear Bumper
[04.2001 -] AL50 |
52159-0A960 |
— | ||
|
52161B
|
52161B
52161-16010 Clip[12.1996 -] AL50 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[12.1996 -] AL50 |
52161-0K040 |
from US $1.50 |
||
|
52161B
|
52161B
52161-02020 Clip[12.1996 -] AL50 |
52161-02020 |
US $5.27 |
||
|
52185B
|
52185B
52185-0A010
Bracket, Rear Bumper Side Mounting, Rh
[12.1996 - 10.1999] AL50 |
52185-0A010 |
— | ||
|
52185B
|
52185B
52185-0A020
Bracket, Rear Bumper Side Mounting, Rh
[04.2001 -] AL50 |
52185-0A020 |
— | ||
|
52186B
|
52186B
52185-0A010
Bracket, Rear Bumper Side Mounting, Rh
[12.1996 - 10.1999] AL50 |
52185-0A010 |
— | ||
|
52186B
|
52186B
52185-0A020
Bracket, Rear Bumper Side Mounting, Rh
[04.2001 -] AL50 |
52185-0A020 |
— | ||
|
52187E
|
52187E
52187-16070 Guide, Rear Bumper Location[12.1996 -] AL50 |
52187-16070 |
from US $2.42 |
||
|
52188D
|
52188D
52187-16070 Guide, Rear Bumper Location[12.1996 -] AL50 |
52187-16070 |
from US $2.42 |
||
|
52197A
|
52197A
52197-16020 Bracket, Rear Bumper Seal, Rh[12.1996 -] AL50 |
52197-16020 |
from US $1.60 |
||
|
52198A
|
52198A
52197-16020 Bracket, Rear Bumper Seal, Rh[12.1996 -] AL50 |
52197-16020 |
from US $1.60 |
||
|
52561
|
52561
52561-0A010
Retainer, Rear Bumper, Upper Center
[04.2001 -] AL50 |
52561-0A010 |
— | ||
|
52561
|
52561
52561-0A020
Retainer, Rear Bumper, Upper Center
[03.2000 - 04.2001] AL50..IDN |
52561-0A020 |
— | ||
|
52591A
|
52591A
52591-0A010
Seal, Rear Bumper
[12.1996 -] AL50 |
52591-0A010 |
— | ||
|
52791
|
52791
52791-12010
Bolt, Bumper Moulding Set, No.1
[12.1996 -] AL50 |
52791-12010 |
— | ||
| replacement | |||||
|
52791
|
52791
90109-06354 Bolt, Bumper Moulding Set, No.1[12.1996 -] AL50 |
90109-06354 |
from US $0.78 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9018906174
|
9018906174
90189-06174 GROMMET SCREW |
90189-06174 |
US $2.33 |
||
|
9021005006
|
9021005006
90210-05006 WASHER SEAL |
90210-05006 |
from US $0.78 |
||
